RCF SUB 18-AS

Description

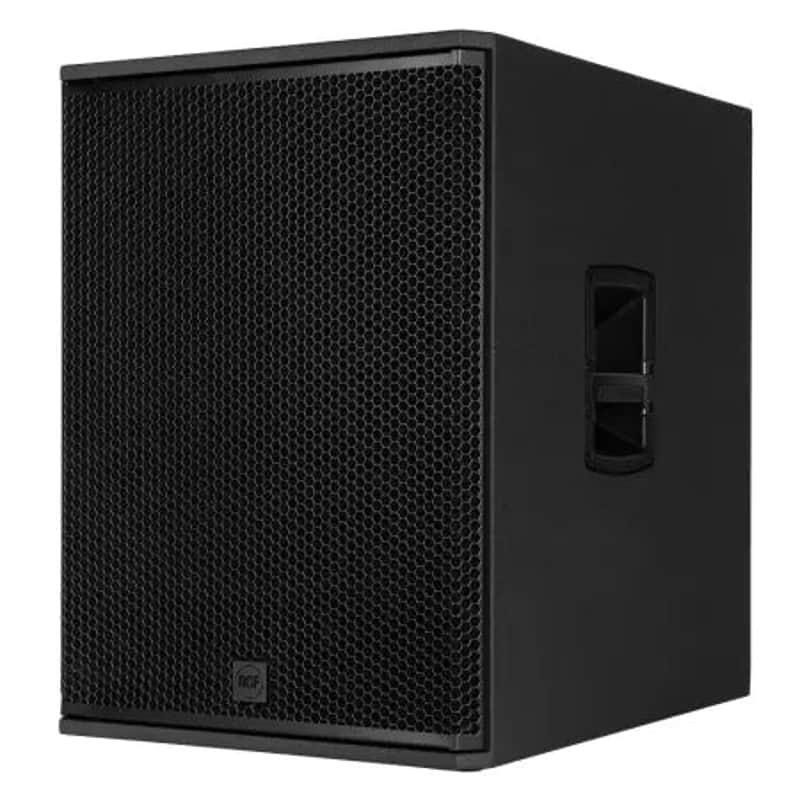

Powered Subwoofer The RCF SUB 18-AS is a portable, professional-grade 18" active subwoofer engineered for live sound, DJ events, and touring systems. With 2200W of Class-D power and a max SPL of 135 dB, it delivers deep, punchy bass in a rugged enclosure built for road use. Ideal for pairing with 10", 12", or 15" tops, the SUB 18-AS brings power, clarity, and advanced DSP control to any small or mid-sized venue. RCF SUB 18-AS Competitive Differences 2200W Class-D amplifier with convection cooling and no moving parts Bass Motion Control algorithm for extended low-frequency performance without phase distortion RCF SUB 18-AS Description The RCF SUB 18-AS brings tour-grade performance to portable setups, delivering room-shaking low end in a compact, road-ready enclosure. Its 18" woofer with a 4.0" voice coil is precision-engineered for low distortion and high efficiency, producing consistent output across a wide frequency range from 35 Hz to 400 Hz. At the heart of the SUB 18-AS is a 2200W peak Class-D amplifier designed to handle extreme SPL levels while maintaining signal integrity. The convection-cooled aluminum heat sink eliminates the need for fans, ensuring silent, reliable operation even under demanding conditions. Advanced DSP includes RCF’s proprietary Bass Motion Control (BMC), which manages woofer excursion for more accurate low-end reproduction without the phase shifts typically caused by high-pass filters. The result is tighter, more musical bass with extended linearity, ideal for DJs, live bands, and rental applications. The all-wood Baltic birch cabinet is coated in a scratch-resistant black polyurea finish and includes ergonomic side handles for easy transport. Stackable and equipped with M20 threaded pole mounts on top and side, it adapts seamlessly to various system configurations. Whether you're building a portable PA or expanding an install, the SUB 18-AS delivers power, durability, and control. Model Features 18” woofer with 4.0” voice coil for deep, high-SPL bass 2200W peak Class-D amplifier with soft limiter 135 dB max SPL output 35 Hz – 400 Hz frequency response Bass Motion Control for extended low-frequency reproduction Combo XLR/TRS inputs and stereo XLR crossover outputs Controls for volume, polarity, and low-pass filter Scratch-resistant polyurea-coated birch cabinet Stackable with M20 threaded pole mounts (top and side) Model Specifications Max SPL: 135 dB Frequency Response: 35 Hz – 400 Hz Power Output: 2200W Peak Woofer: 18” with 4.0” voice coil Input Connectors: Combo XLR/Jack Output Connectors: XLR Controls: Volume, Polarity, Low-Pass Filter Cooling: Convection Cabinet: Baltic birch plywood with polyurea coating Mounting: M20 threaded pole mount (top and side) Dimensions: 27.28 x 19.88 x 26.97 in (693 x 505 x 685 mm) Weight: 98.11 lb (44.5 kg) What's In The Box RCF SUB 18-AS subwoofer Power cable User manual
