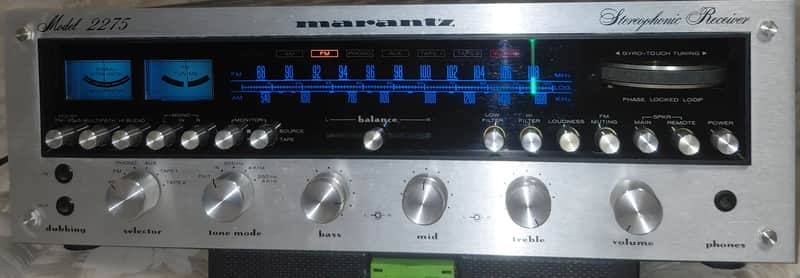

Marantz Model 2275 75-Watt Stereo Solid-State Receiver, photo 1 of 12
Tap to inspect finish

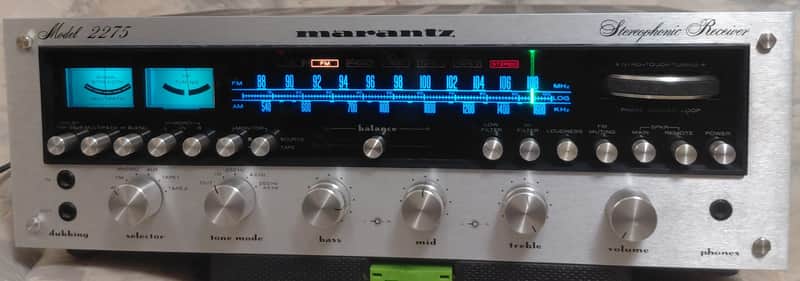

Marantz Model 2275 75-Watt Stereo Solid-State Receiver, photo 2 of 12
Tap to zoom

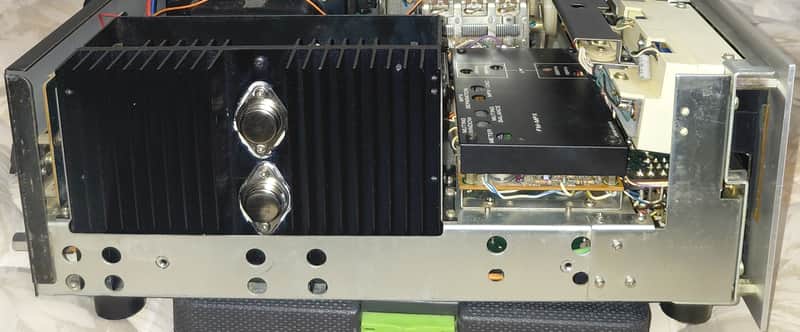

Marantz Model 2275 75-Watt Stereo Solid-State Receiver, photo 3 of 12
Tap to zoom

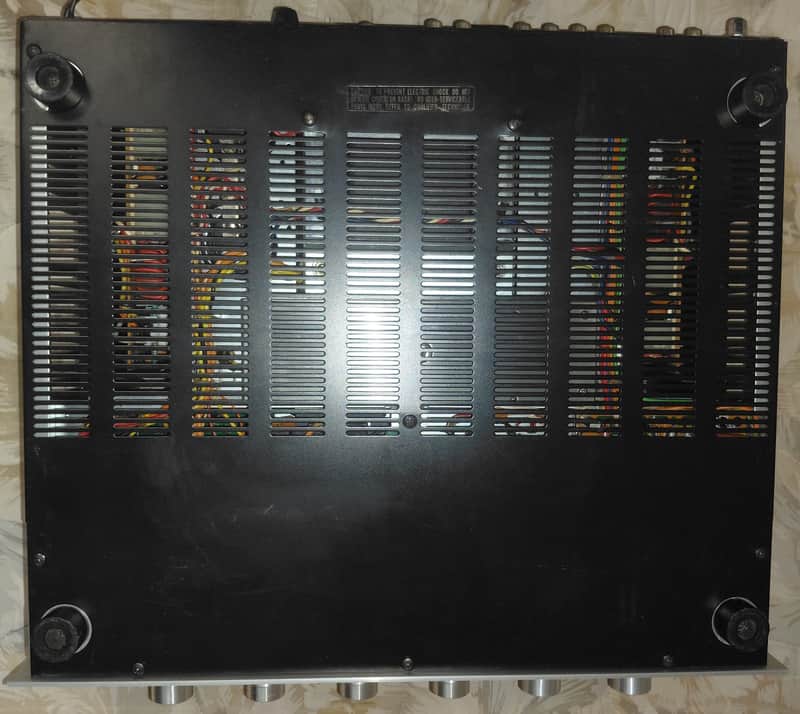

Marantz Model 2275 75-Watt Stereo Solid-State Receiver, photo 4 of 12
Tap to zoom

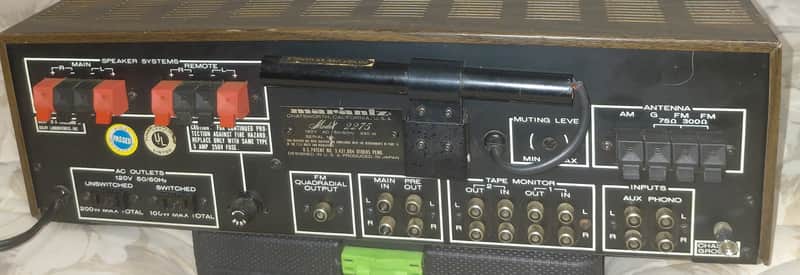

Marantz Model 2275 75-Watt Stereo Solid-State Receiver, photo 5 of 12
Tap to zoom

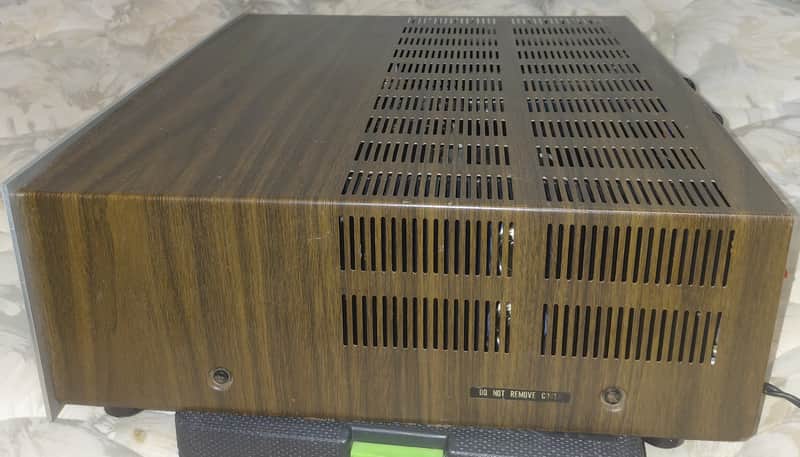

Marantz Model 2275 75-Watt Stereo Solid-State Receiver, photo 6 of 12
Tap to zoom

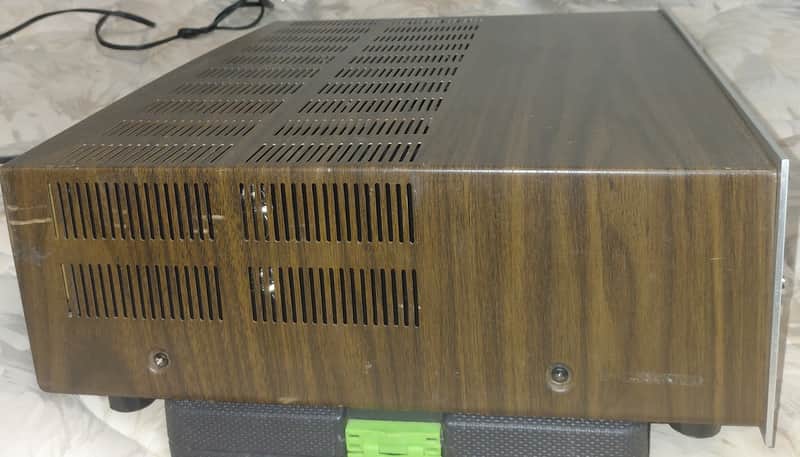

Marantz Model 2275 75-Watt Stereo Solid-State Receiver, photo 7 of 12
Tap to zoom

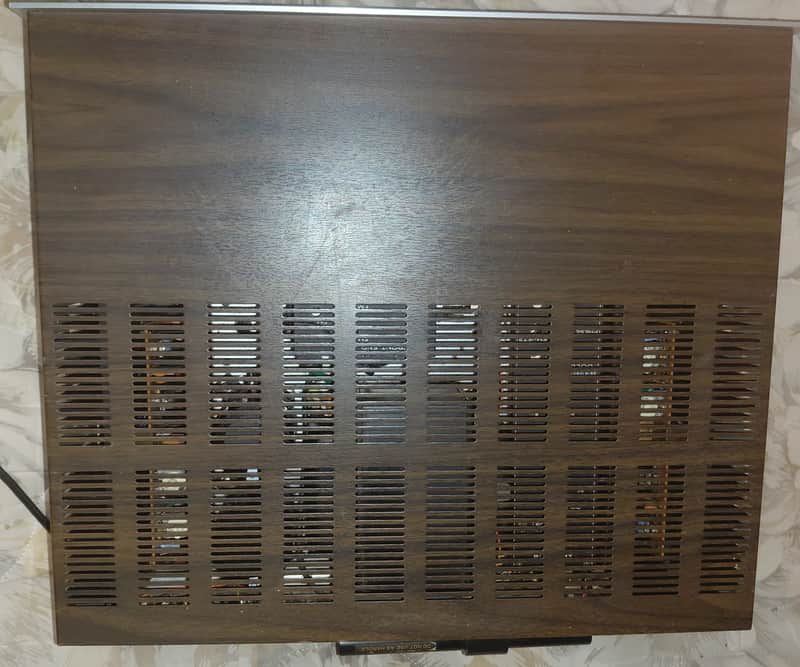

Marantz Model 2275 75-Watt Stereo Solid-State Receiver, photo 8 of 12
Tap to zoom
Marantz Model 2275 75-Watt Stereo Solid-State Receiver, photo 9 of 12
Tap to zoom
Marantz Model 2275 75-Watt Stereo Solid-State Receiver, photo 10 of 12
Tap to zoom
Marantz Model 2275 75-Watt Stereo Solid-State Receiver, photo 11 of 12
Tap to zoom
Marantz Model 2275 75-Watt Stereo Solid-State Receiver, photo 12 of 12
Tap to zoom
1 / 12

Marantz

Model 2275 75-Watt Stereo Solid-State Receiver

$3,300
Condition
Mint
Type
Integrated
Finish
Silver with Wood Case

Ships to you

Posted with tracking, and shipping is included — the price you see is the price you pay. This one takes up to seven days to go out, and you'll get the tracking the moment it does.

Description

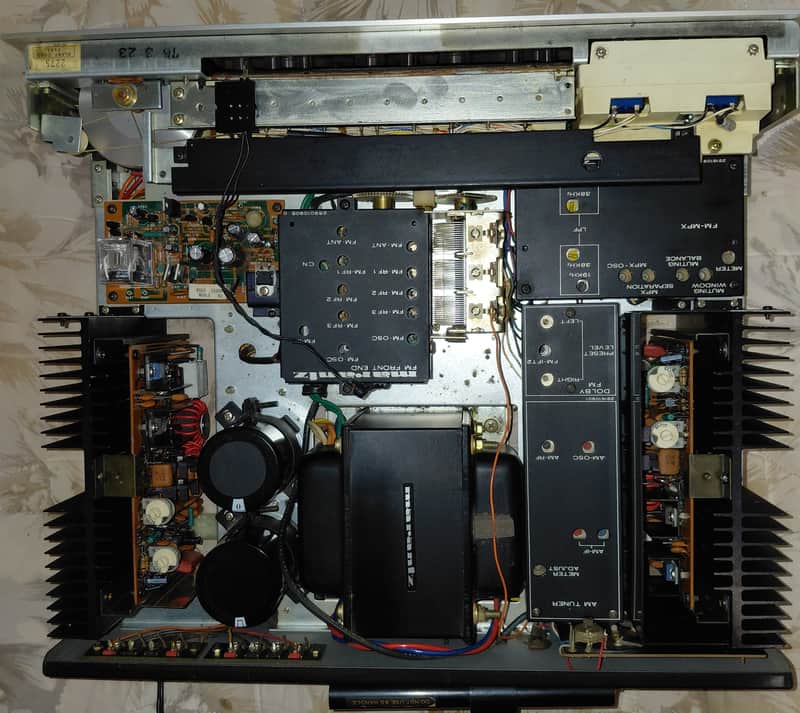

Up for sale Fully Restored Marantz 2275 Receiver. This receiver is not just a recap it has been fully restored. All boards have been thoroughly gone through and tested. Receiver has had new velum and warm white frosted LED fuse lamps. All function lamps are original Bi-Pin incandescent type, pointer has LED installed. All switches have been flushed and checked for proper actuation this also includes volume, balance, tone potentiometers. Receiver has had all input ad output functions tested and was burned in no less then 72 hours running an 8Ω load. I'm offering a 1 year warranty and free shipping to the lower 48 states. Receiver will double boxed with Styrofoam walls on all sides in both boxes and receiver will be encased in a full Styrofoam surround and bubble wrapped. If any further information is needed please don't hesitate to message me. What was done: Power Supply: 8 capacitors (Nichicon PW, Panasonic FC)7 transistors (Fairchild/Onsemi)5 diodes (2 dual diodes, 2 zener diodes)1 Relay (Omron) P700 Amp: 6 capacitors (Nichicon KL) 8 transistors (Fairchild/Onsemi, two are HFE-matched pairs)8 diodes PE01 tone board: 15 capacitors (Nichicon PW, Nichicon Muse, Wima film, Panasonic film) 4 transistors (Fairchild/Onsemi) PS01 switch board: 5 capacitors (Nichicon KL) P400 Phono EQ board: 7 capacitors (Nichicon PW, Nichicon Muse, Panasonic film) 6 transistors (Fairchild/Onsemi)2 diodes1 double diode (to replace the VD1212) P200 FM IF board: 16 capacitors (Nichicon PW, Wima film) P300 FM MPX board: 18 capacitors (Nichicon PW, Wima film) PC01 Dolby board: 4 capacitors (Wima film) P150 AM tuner board: 7 capacitors (Nichicon PW, Wima film) 2 new main capacitors (Panasonic Made in USA 15000 uf 100v, same diameter as the old ones) Specifications: Tuning range: FM, MW Power output: 75 watts per channel into 8Ω (stereo) Frequency response: 20Hz to 20kHz Total harmonic distortion: 0.25% Damping factor: 60 Input sensitivity: 1.8mV (MM), 180mV (line) Signal to noise ratio: 82dB (line) Output: 1V (Pre out) Dimensions: 439 x 137 x 366mm Weight: 17.7kg Year: 1975

Condition notes

Excellent

Specifications

year
1974 - 1977

Seller

SPKRS

Westlake Village, CA

★ 5.00

SPKRS holds your payment until you confirm you have the item.
