D.A.S. Audio EVENT-210A

Description

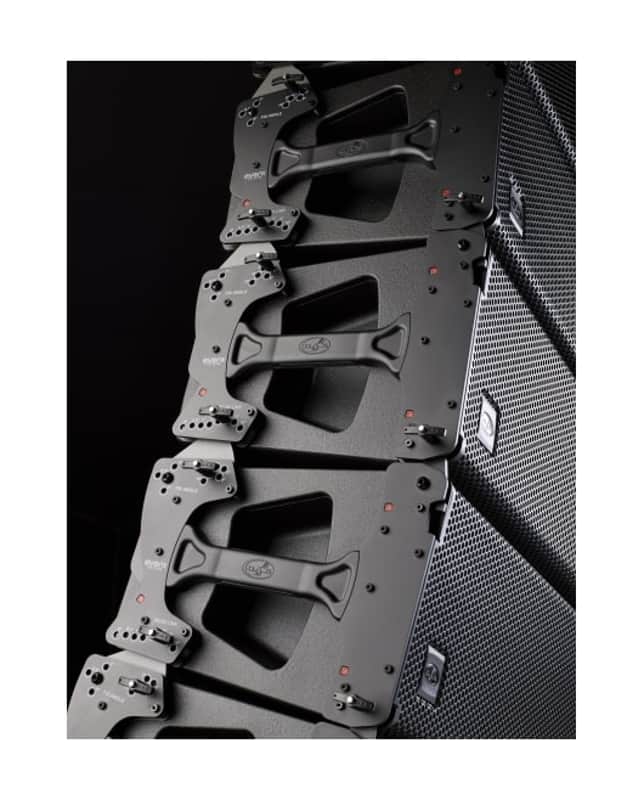

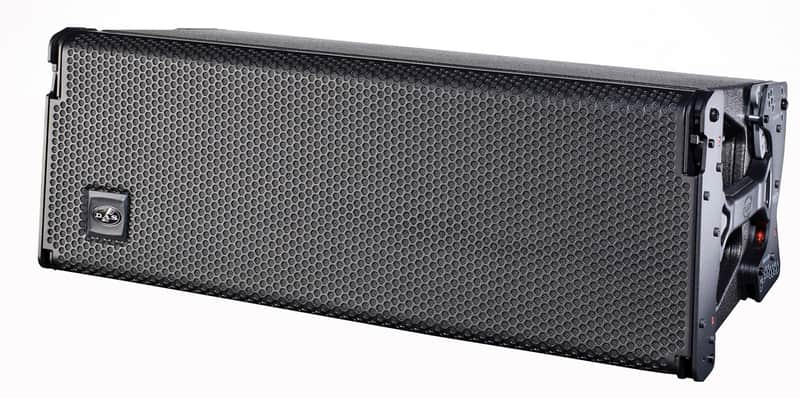

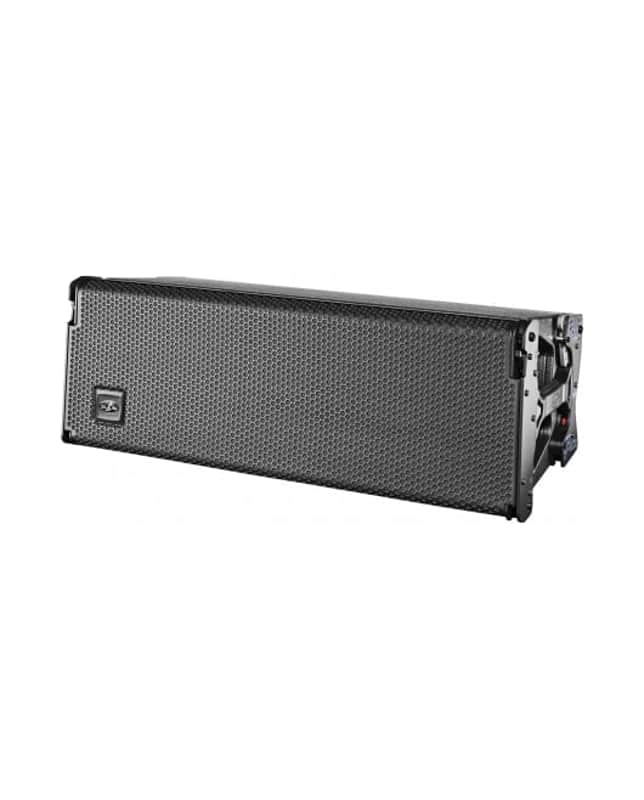

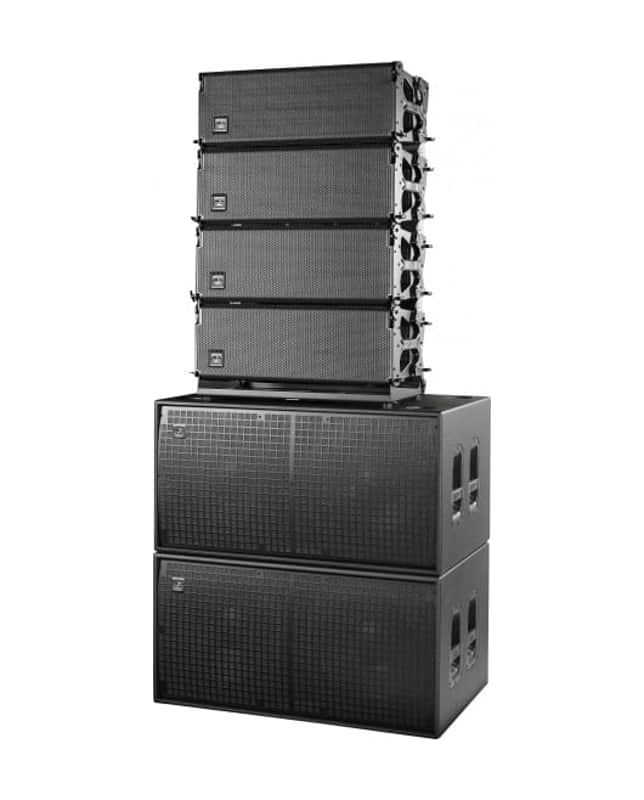

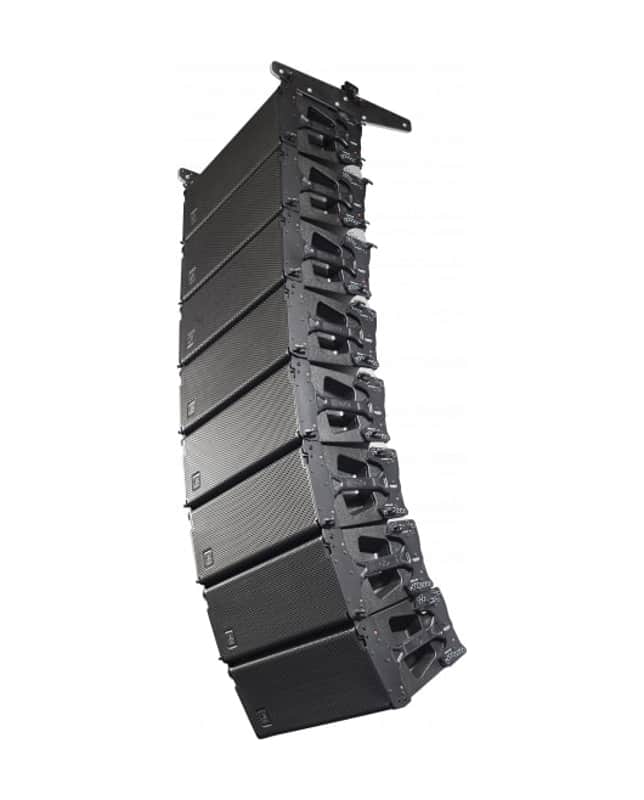

​Overview The EVENT-210A Line is a three-way powered line array in a double 10” “dual-band” configuration which provides a wider frequency range. The DAS loudspeaker units has been teamed up with a single M-75 compression driver and purpose-designed injected aluminum high frequency waveguide. The EVENT-210A line array is powered by a three channel Class D amplifier which provides 360 Wpeak per channel. The amp´s rear panel includes quality Neutrik® XLR and powerCON connectors, status LEDS to facilitate setup and DAS’s Easy-DSP™ interface which simplifies preset selection for the number of units and throw depth. Features Powered 3-way system Light-weight Class D amplifier topology High-end DSP chipsets Easy-DSP Interface Quality Neutrik connectors Top grade Birch cabinet construction Durable ISO-flex finish Robust "quick-rig" professional rigging hardware Proprietary injected aluminum HF waveguide DAS M-75 compression driver and cone transducers Specifications Performance Frequency Range (-10 dB): 70 Hz - 20 kHz Horizontal Coverage (-6 dB): 90° Vertical Coverage: Splay Dependent Maximum Peak SPL at 1 m: 134 dB ​Electronics and Connectors Nominal Amplifier Power LF (continuous): 180 W Nominal Amplifier Power LF (peak): 360 W Nominal Amplifier Power MF (continuous): 180 W Nominal Amplifier Power MF (peak): 360 W Nominal Amplifier Power HF (continuous): 180 W Nominal Amplifier Power HF (peak): 360 W Input Type: Balanced Input Impeadance: 20 kohms Input Sensitivity: 6.2 V (+18 dBu) Audio Signal Input Connector: 1 x Female XLR Audio Signal Loop Thru Connector: 1 x Male XLR AC Input Connector: powerCON NAC3FCA AC Output Connector: powerCON NAC3FCB Operating Range: 90-127 VAC Current Draws 115 V: 3.0 A Certification Number: NRTL US&CA SGSNA/19/SUW/00109 Enclosure Enclosure Construction: Birch Plywood Enclosure Geometry: Trapezoidal Rigging: Captive Rigging System Finish: ISO-flex Paint Color: Black Dimensions (H x W x D): 275 x 735 x 370 mm / 10.8 x 28.9 x 14.6 in Net Weight: 32.5 kg (71.7 lb) Components LF Driver: 10MI4 MF Driver: 10MI4 HF Driver: M-75 Horn/Waveguide: BPS-90AR Shipping Carton Dimensions (H x W x D): 800 x 320 x 410 mm / 31.5 x 12.6 x 16.1 in Shipping Weight: 34.5 kg (76.1 lb) What's in the Box? Event 210A Line Array Speaker Power Cord User Manual

Condition notes

Brand New

year

2015
