dB Technologies DVA M2M+M2S
dB Technologies
DVA M2M+M2S
- Condition
- New
- Type
- Passive
Ships to you
Posted with tracking, and shipping is included — the price you see is the price you pay. This one takes up to seven days to go out, and you'll get the tracking the moment it does.
Description

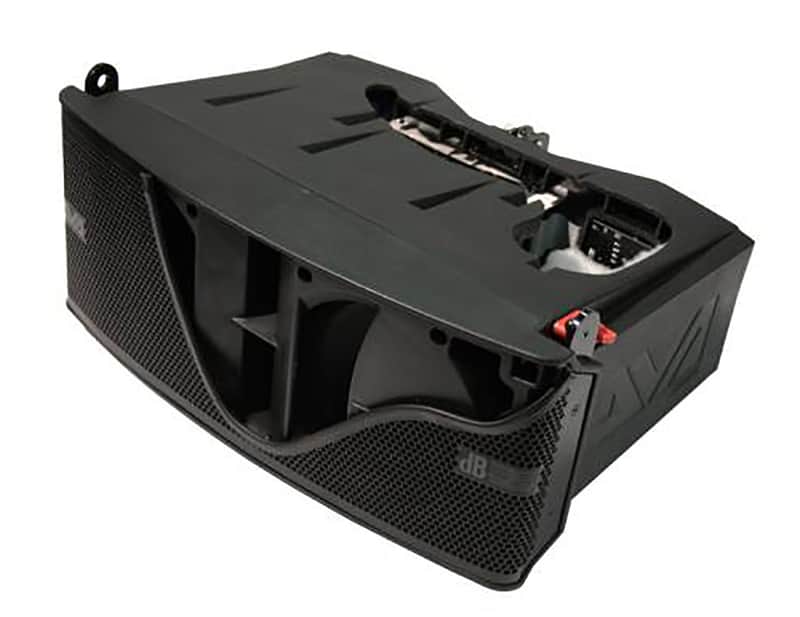

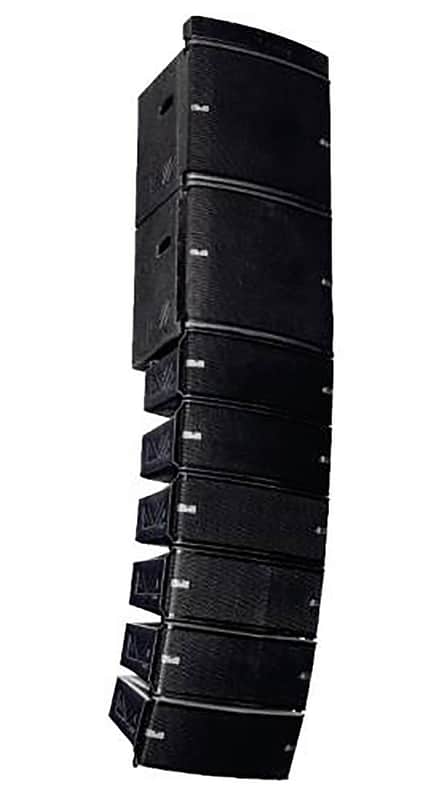

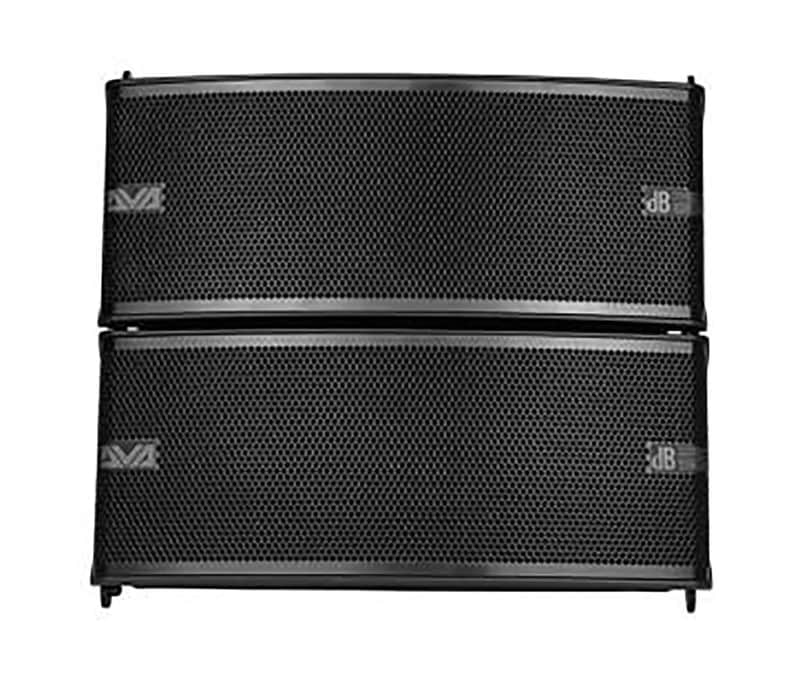

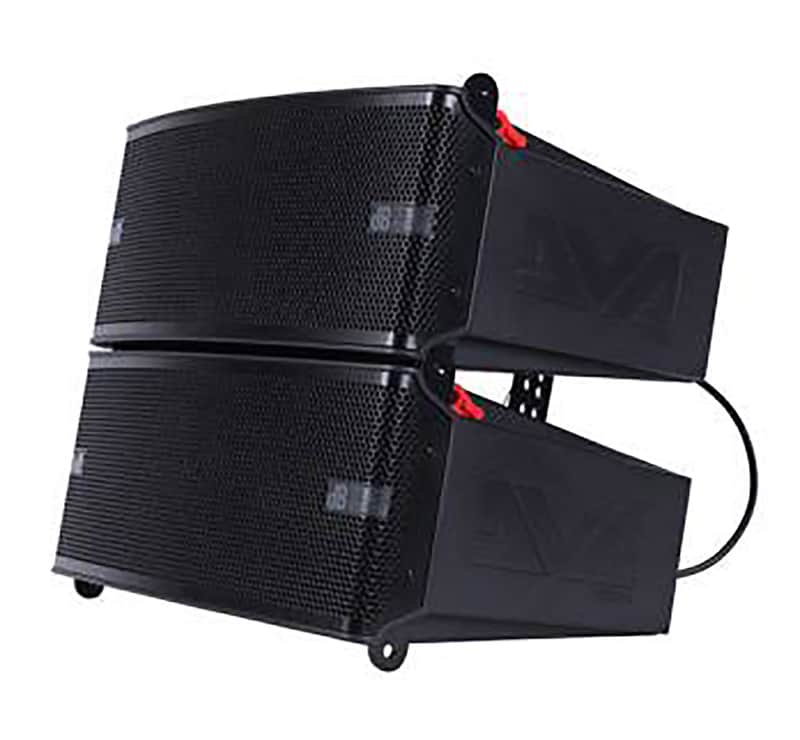

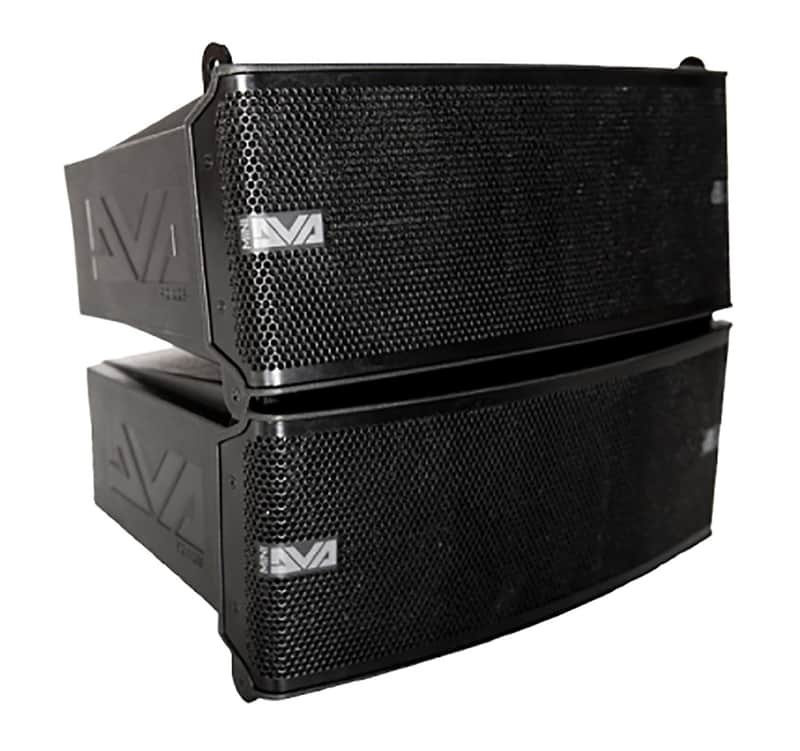

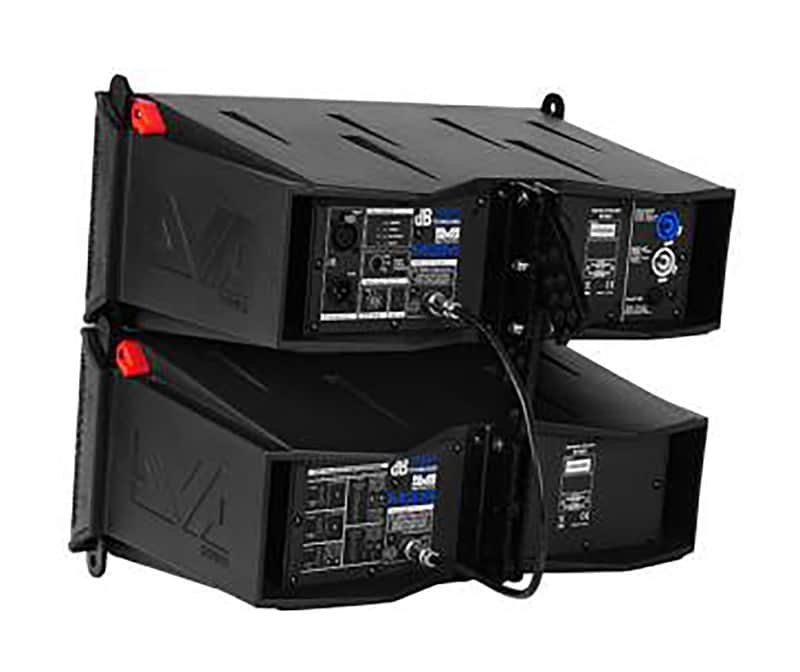

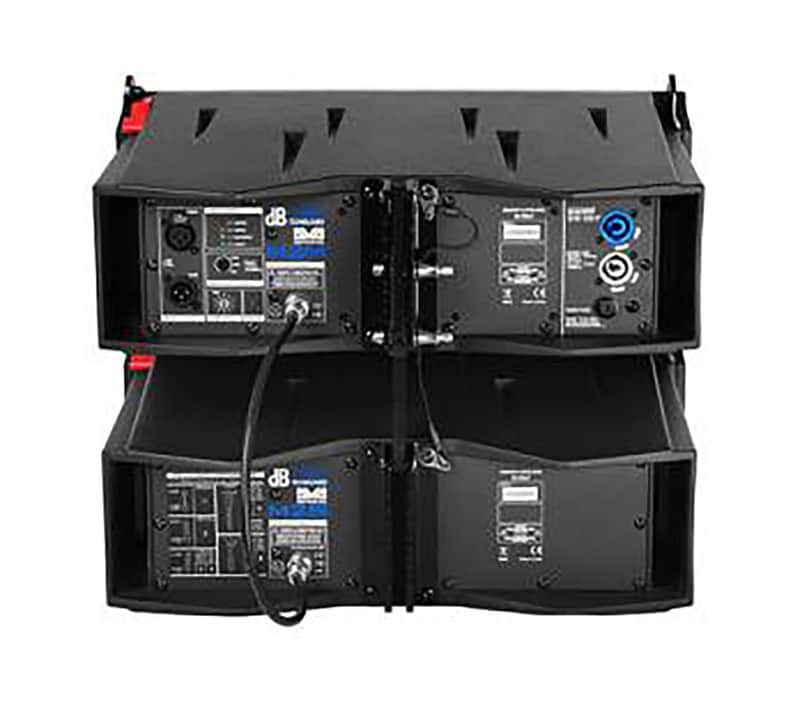

The dB Technologies DVA MINI system is comprised of two line array modules, each with two 6.5” neodymium woofers and two 1” high-frequency compression drivers. The M2M module is the master module that contains the 400-watt Digipro G3 amplifier that power both the M2M and M2S slave module. The system achieves 126 dB max SPL per unit. Constructed in solid Polipropilene reinforced with an internal anti-vibration structure, DVA MINI features a new fast-lock mechanic design: users simply place one module below the other and slide it towards one side until it locks in place. Moreover, every DVA MINI module has a back mechanic with incremental steps allowing different line array positioning angles. Product Specification: Technical Data Speaker Type M2M2-Way Active Master Line Array Module Speaker Type M2S2-Way Slave Line Array Module Acoustical data Frequency Response [-6dB] 78 - 19.000 Hz Frequency Response [-10dB] 68 - 20.000 Hz Max SPL 126 dB per unit HF 2x1" Type HF Neodymium Voice Coil HF 1" LF 2x6.5" Type LF Neodymium Voice Coil LF 1.5" Directivity 90x15° Amplifier Amp Technology Digipro G3 Amp Class Class D RMS Power HF Amp 200 W (100 W + 100 W) RMS Power LF Amp 200 W (100 W + 100 W) Cooling Convection Processor Controller DSP 56 bit AD/DA Converter 24 bit/48 kHz System Presets 9 presets (8x HF and Low-Mid corrections and 1x for service use) Limiter Multiband, RMS/Peak, Thermal Crossover Frequency LF-HF 1800 Hz Slope LF-HF 24 dB/Octave Input Signal Input 1x XLR fem, Bal. Signal Output 1x XLR male, Bal. Power Supply 400W SMPS with PSU Auto-range (110V~ and 220V~) Power Socket 1x PowerCon In 1x PowerCon Out Signal Input M2S 1 Custom connector Mechanics Housing Poly propylen PP Handles 2x back side Fittings Integrated hardware with fast lock mechanics Splay Angles 0°- 1,5°- 3°- 4,5° - 6°- 8°- 10°- 12,5°- 15°
Condition notes
Brand New
