Sonifex AVN-DIO10

Description

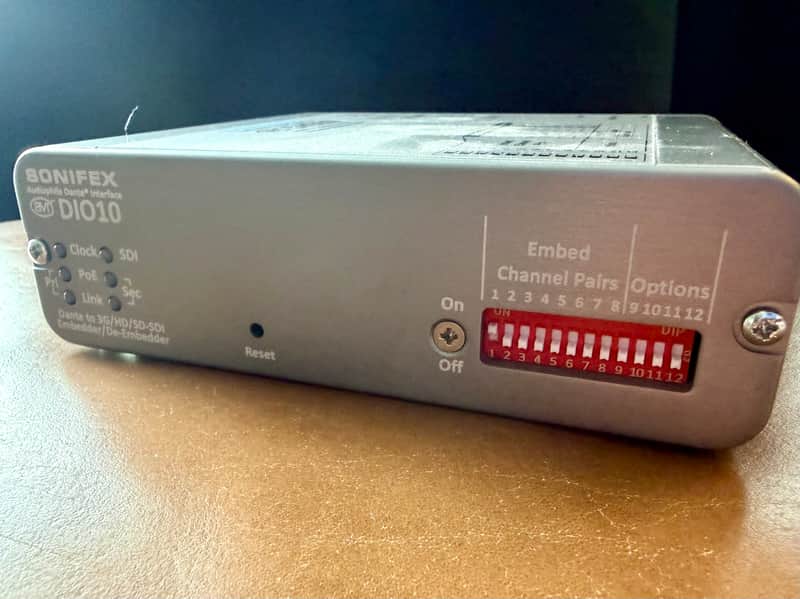

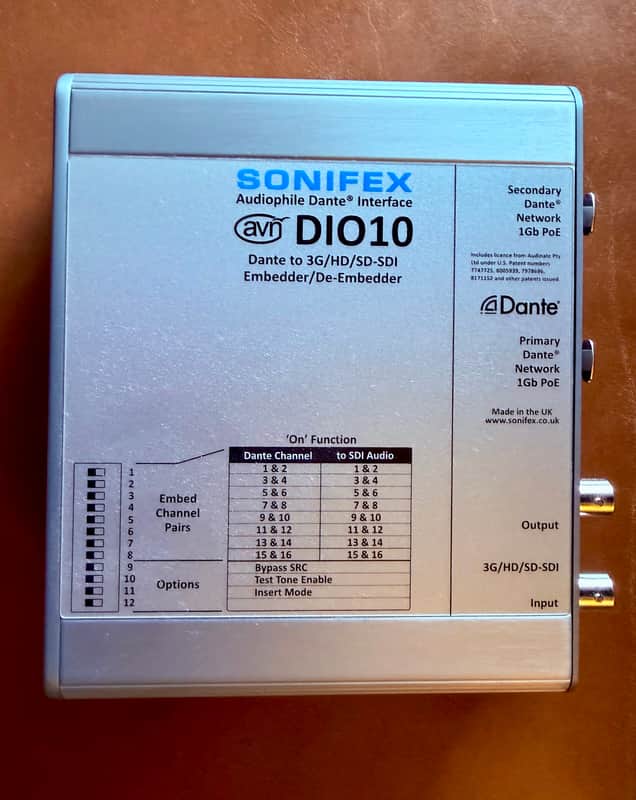

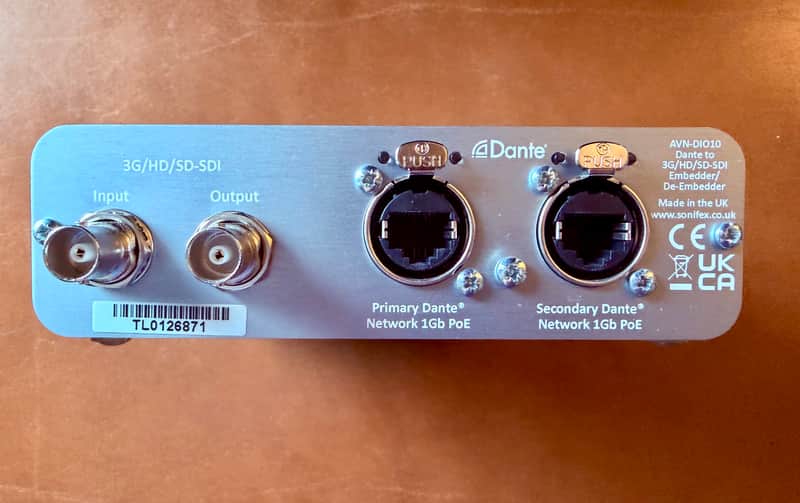

Used in Church Environment. Never left the video rack. MINT Condition. The easiest way to connect legacy SDI equipment to the Dante network, the AVN-DIO10 can be used for simultaneous embedding and de-embedding. This simple plug and play audio/video interface provides a convenient and elegant method of connecting legacy 3G/HD/SD-SDI equipment to the Dante AolP audio network. The AVN-DIO10 takes an SDI feed, de-embeds the 16 audio channels and places them on channels 1-16 of the Dante network, mapped using Dante Controller. It simultaneously takes the 16 input channels mapped to the device on Dante Controller and re-embeds them onto the SDI output. Switches on the unit allow embedding of Dante channels onto the SDI output per channel pair and there are two modes of operation: Insert Mode enabled allows embedding to overwrite existing SDI audio selectively per channel pair. Insert Mode disabled clears any incoming audio channels on the SDI output and then allows selective embedding onto X SDI output A Test Tone Mode allows 1kHz, 2kHz, 3kHz and 4kHz signals to be output on channels one to 4 respectively, for any group where embedding is enabled. This is so that downstream SDI audio outputs can be tested without the need of Dante sources. It's powered using Power over Ethernet (PoE), using Neutrik EtherCON connectors, with primary and secondary ports for power and data redundancy. The AVN-DIO10 uses the latest Audinate Dante chipsets so is AES67 and Dante Domain Manager compliant. There are front panel LEDs to indicate network clock status, SDI lock status, AolP Primary and AolP Secondary link status, PoE Primary power and PoE Secondary power active. A web interface is available for firmware updates, status information and network settings. Up to 3 of the AVN-DIO10 units can be rackmount in the 1U AVN-DIORK.

year

2020s
