Yorkville C170

Description

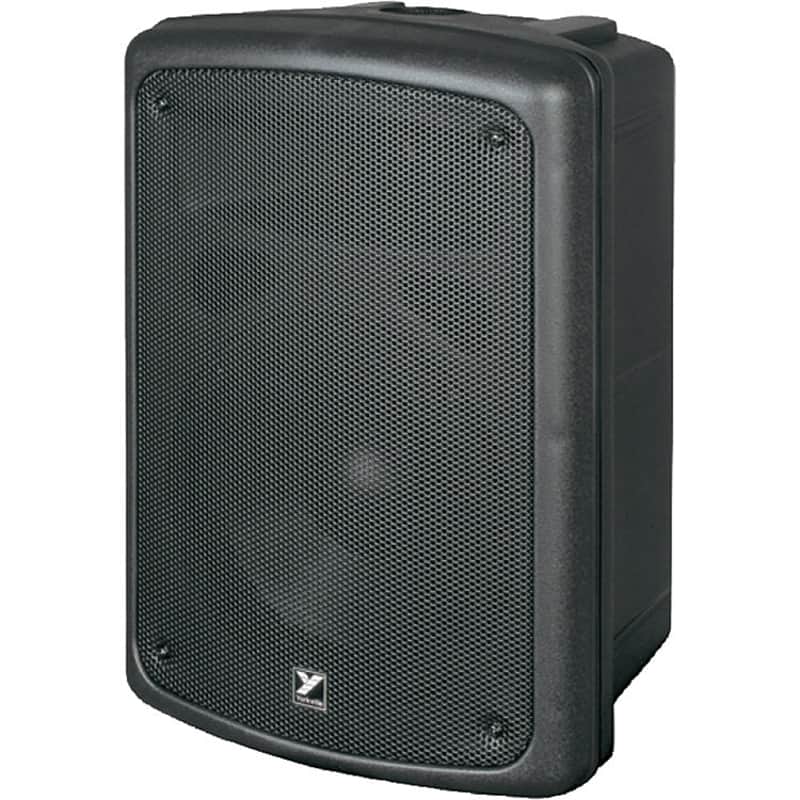

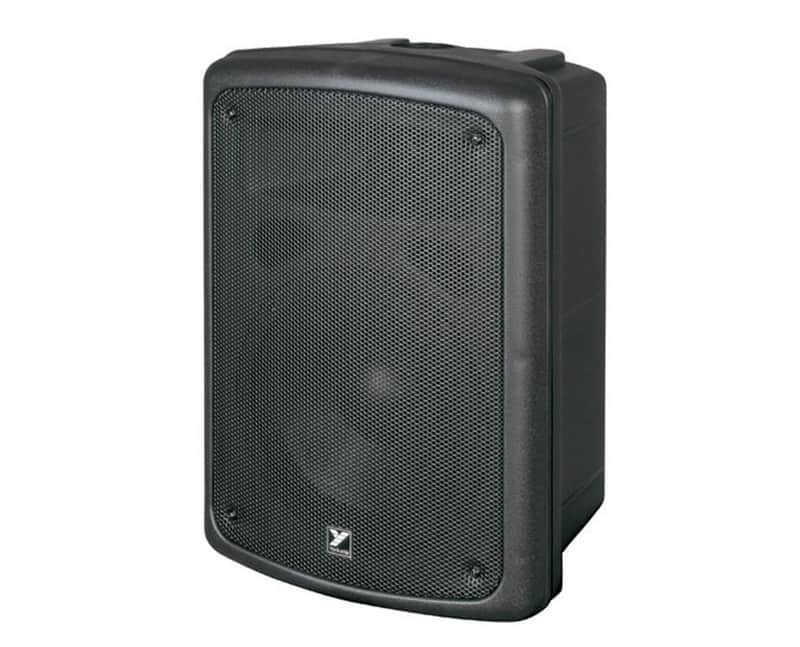

We are an authorized Yorkville dealer Total Entertainment 501 West International Speedway Blvd Daytona Beach FL 32114 The integrated 70V 'matching transformer' allows multiple C170's to be connected together without danger of overloading the power amplifier due to impedance drop. The user has a choice of three sensitivity settings (6W, 12.5W, 25W or bypass) selected via a rotary switch located on the rear panel of the speaker, allowing convenient adjustment of the relative volumes of multiple interconnected cabinets. The C170 is based on the already popular C110, C120 and C130, which have a complete list of features that make them an extremely good value for fixed installations. The C170, is a compact 100-watt loudspeaker enclosure made from ABS plastic with an 8" driver and 1 inch Mylar tweeter, and features both dual binding posts and 1/4" connectors for maximum versatility. The trapezoidal shape makes the C170 ideal for install or array mounting in tight locations. Shipped with a rugged proprietary U-bracket for wall or ceiling mounting, they are a very versatile and cost-effective solution where superior sonic quality is required for small installations, or as a repeater or fill cabinet in larger venues. An optional polemount adapter (C170ADAPT) is also available for applications where placing the C170 on a speaker stand is required. The C170 is also available in white as the C170W, for situations where a more discreet speaker is required. The C170 is available in both black (C170) and white (C170W) finishes. Yorkville C170 Specifications: System Type: 2-Way Active or Passive: Passive Program Power (Watts): 100 Biampable: No Nominal Impedance (Ohms): 8 Sensitivity (dB @1Watt/1m): 93 Max SPL (dB): 113 Frequency Response (Hz +/- 3db): 60 - 20000 Driver Configuration: 8"/ 1" dome tweeter HF Driver(s): 1" Mylar Dome Tweeter LF Driver(s): 8" LF Program Power (Watts): 100 LF Impedance (Ohms): 8 Inputs - 1/4" Jacks: 2 Inputs - Binding Post: Yes Feet: Yes Included Hardware: Mounting Bracket Pole Mount Adapter (1 3/8"-3.5cm) Optional Adapter (C170ADAPT) Enclosure Materials: ABS Plastic Grille: Perforated Metal Optional Covering / Finishes: Available Black or White (C170W) Dimensions (DxWxHxbackW): 11.25" x 9.75" x16.25" x 9.5" (28.5 x 25 x 42 x 24 cm) Weight: 14.5 lbs (6.6 kg)
