Yamaha DXR10MKIII

Description

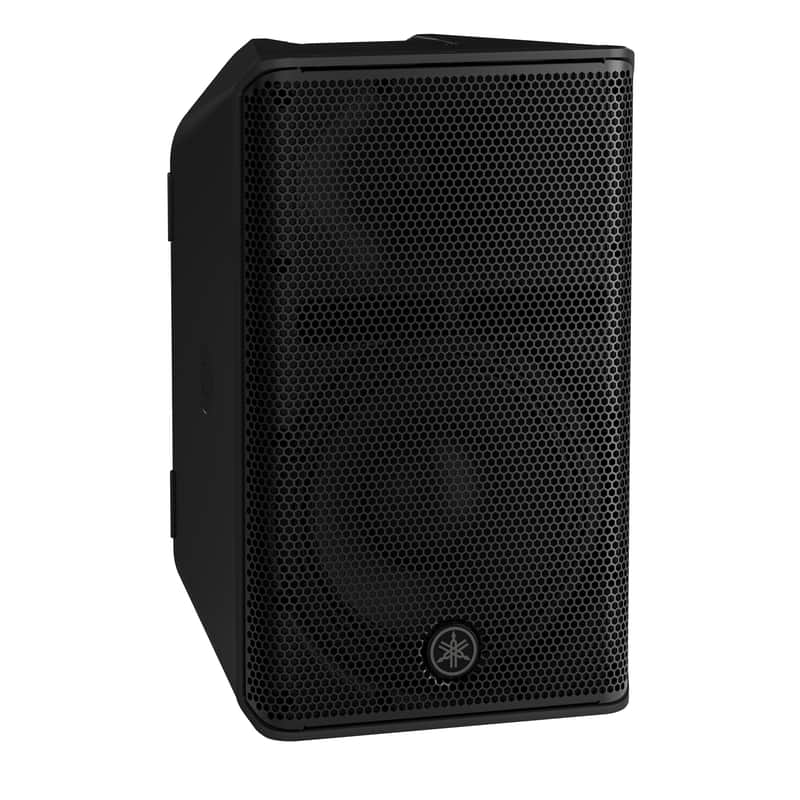

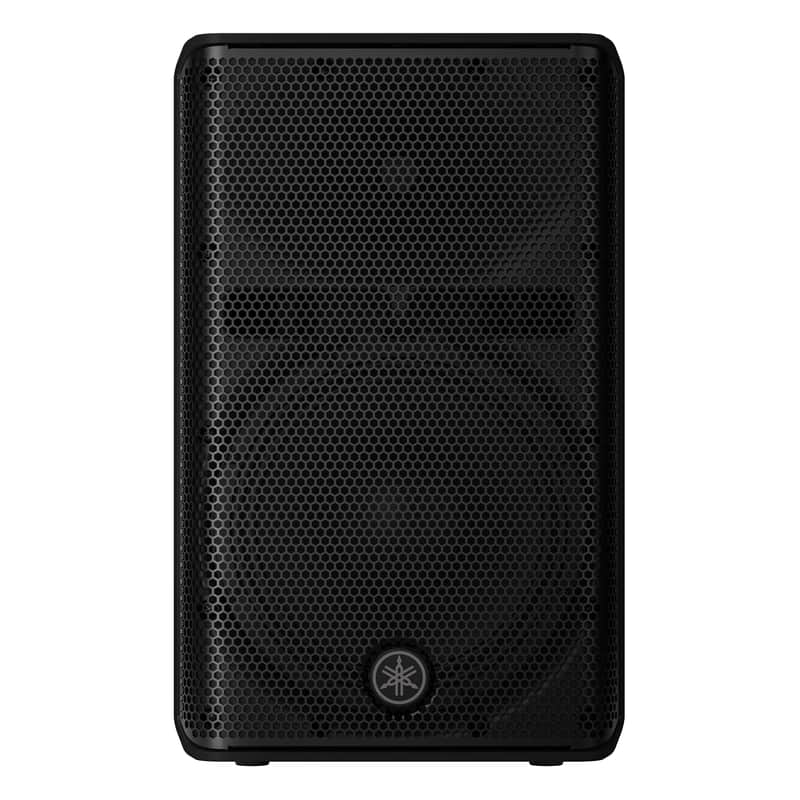

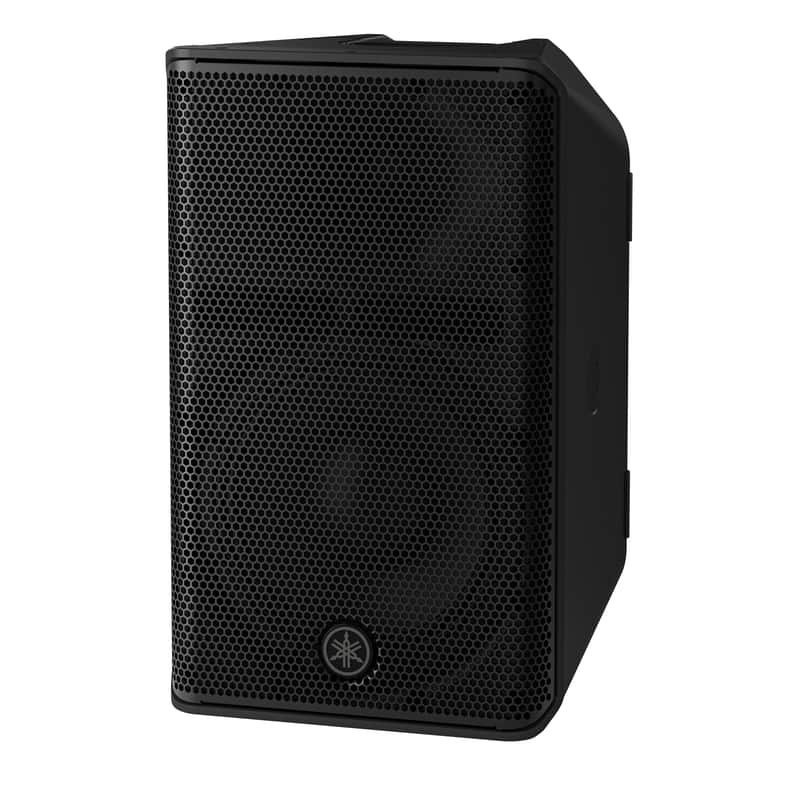

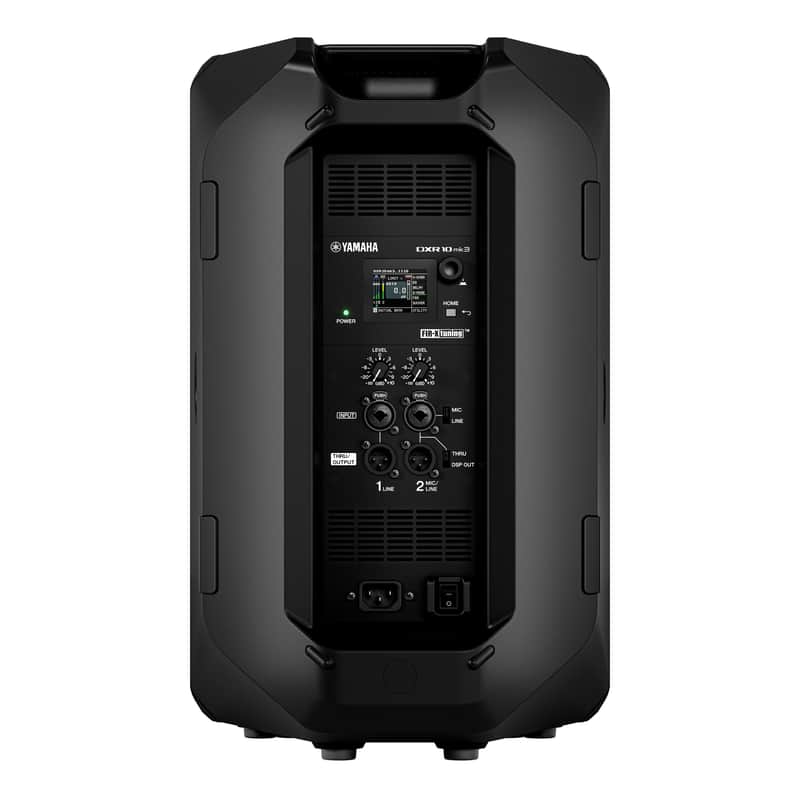

Overview The DXR10 mk3 is a 2-way, bi-amped, powered loudspeaker and is the most compact model in the series, delivering exceptional clarity, precision, and a powerful 132 dB SPL output. Thanks to its compact, lightweight enclosure, it can function as a versatile utility speaker suitable for a wide variety of environments. Advanced DSP capabilities and a dedicated remote app add significantly more flexibility, with powerful features that enhance the overall user experience. All DXR/CXR mk3 loudspeakers are equipped with Yamaha’s own high-durability, custom LF/HF speaker units. The LF unit ensures highly symmetrical front-rear movement for linear bass reproduction, while the HF unit features a polyimide diaphragm that eliminates audible distortion while providing exceptional durability—thus achieving both superior acoustic performance and outstanding reliability. The large-diameter horn secures directivity control across a wide frequency range. Optimized port positioning also reduces standing wave effects, resulting in smoother and more accurate low-frequency response. Utilizing a lightweight, high-strength, form-injection molded enclosure, the design achieves both weight reduction and attenuation of cabinet resonance that can result in bass loss. The ergonomically designed enclosure offers not only aesthetic appeal but also outstanding usability. An LCD panel is mounted on the rear, allowing for fast and easy control of parameters such as preset loading, precise PEQ adjustments, delay, and routing. Up to eight user presets can be stored, and factory presets optimized for combined use with the DXS mk3 series can also be recalled. Features • 15" LF + 1.75" HF proprietary high-durability speaker units • The large-diameter horn secures directivity control across a wide frequency range • Optimized port positioning reduces standing wave effects • Lightweight, high-performance, form-injection molded enclosure with a symmetrical, functional design • Newly developed 2000W Class-D amplifier • FIR-X™ tuning, provides FIR filtering and corrective EQ, minimizing phase distortion • Drive Motion Calibration™ corrects the motion of the LF unit, producing a more linear low-frequency sound with high reliability • DSP modes tailored for specific arrangements or applications. In particular, FOH/MAIN and MONITOR modes have an automatic setting function "AUTO V/H POSITION" • Can be controlled remotely via an iOS or Android device using the dedicated D-Remote app • Compatible with audio streaming via Bluetooth • Intelligent feedback suppressor automatically eliminates unpleasant feedback • Optional UB-DXR15A U-bracket allows both for vertical or horizontal use • Optional SPCVR-DXR153 speaker cover protects speakers from rigors of equipment transport, lengthy storage, or outdoor performances • Rigging points for use with eye bolts • Dual-angle pole sockets offer both 0° or a -7° down tilt What's In The Box? • Yamaha DXR10mkIII 10" 2000W 2-Way Active Loudspeaker • Limited 7-Year Manufacturer Warranty
