JBL AWC62

Description

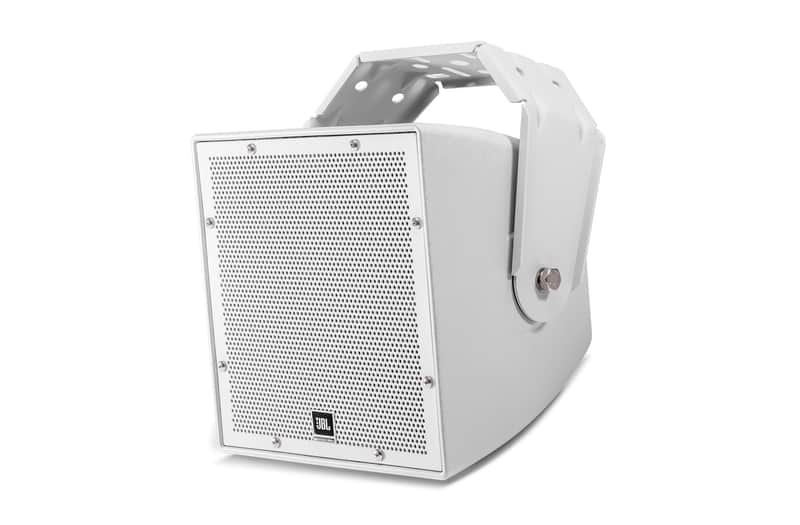

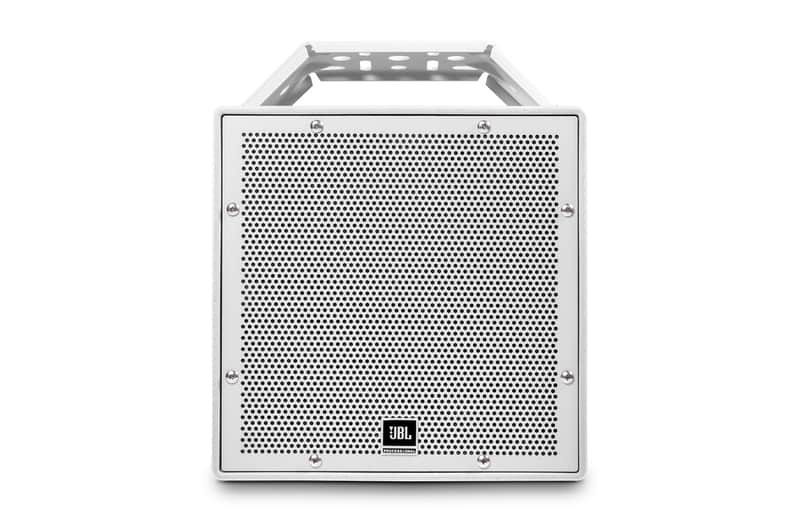

JBL AWC62 All-Weather Compact 2-Way Coaxial Loudspeaker The AWC62 is a rugged, compact all-weather speaker engineered for permanent outdoor installation in demanding environments. Its coaxial design delivers consistent coverage and coherent imaging across a wide listening area, making it equally at home reinforcing speech at a poolside venue or providing background music in a covered structure exposed to the elements. Audio Performance & Coverage This two-way system reproduces audio from 70 Hz to 20 kHz with a 120 dB maximum peak SPL and maintains a wide 110° x 110° broadband pattern control, ensuring even sound distribution without hot spots. The 165 mm (6.5 in) Kevlar-reinforced woofer and 25 mm (1 in) compression driver work together in a coaxial arrangement for seamless integration across the frequency spectrum. Durability & Installation Built to withstand outdoor conditions, the AWC62 carries an IP56 rating and features a corrosion-resistant zinc-rich powder-coated steel grille with three-layer construction (foam and woven poly mesh backing). Mounting is straightforward via two M10 fine-thread points with an included U-bracket, plus an M6 secondary safety attachment on the back panel for secure installation. Key Features 165 mm (6.5 in) woofer with Kevlar-reinforced cone and 38 mm (1.5 in) voice coil 25 mm (1 in) exit compression driver Frequency response: 70 Hz to 20 kHz (-10 dB) Maximum peak SPL: 120 dB Broadband pattern control: 110° x 110° 175 Watt power handling (average continuous pink noise) 120 Watt 70V/100V multi-tap transformer or direct 8Ω low-impedance operation IP56 weather rating for outdoor durability Corrosion-resistant zinc-rich extra-thick powder-coated steel grille with 3-layer assembly CE-compliant covered barrier strip terminals (accepts up to 8 mm outside/4 mm inside open-lug, #6 or #8, or bare wire up to 2.5 mm² / 12 AWG, or spade lugs) Two M10 fine-thread mounting points with included U-bracket M6 secondary safety attachment point on back panel The AWC62 combines professional-grade coaxial performance with legitimate all-weather construction, making it a reliable choice for venues that demand consistent output in challenging conditions.

Condition notes

Brand New

year

Unknown
