Yamaha DBR10
Yamaha
DBR10
- Condition
- New
- Type
- Active
Ships to you
Posted with tracking, and shipping is included — the price you see is the price you pay. This one takes up to seven days to go out, and you'll get the tracking the moment it does.
Description

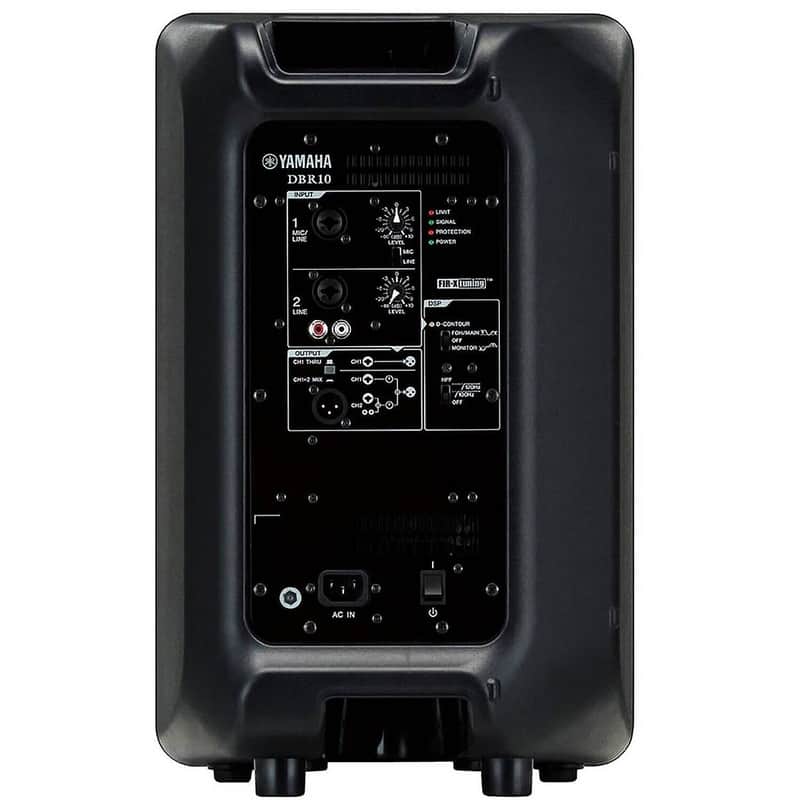

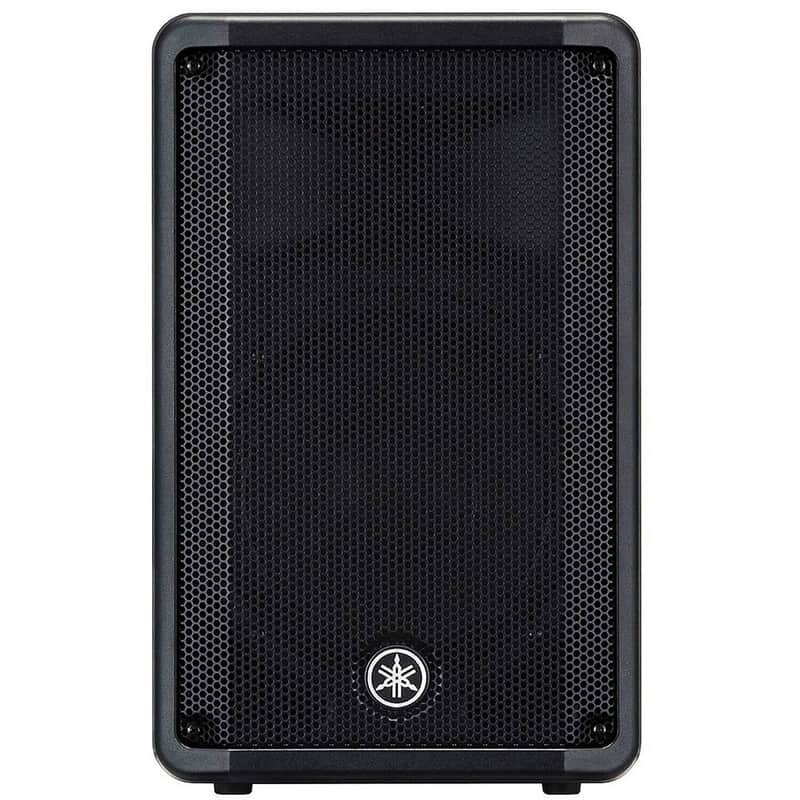

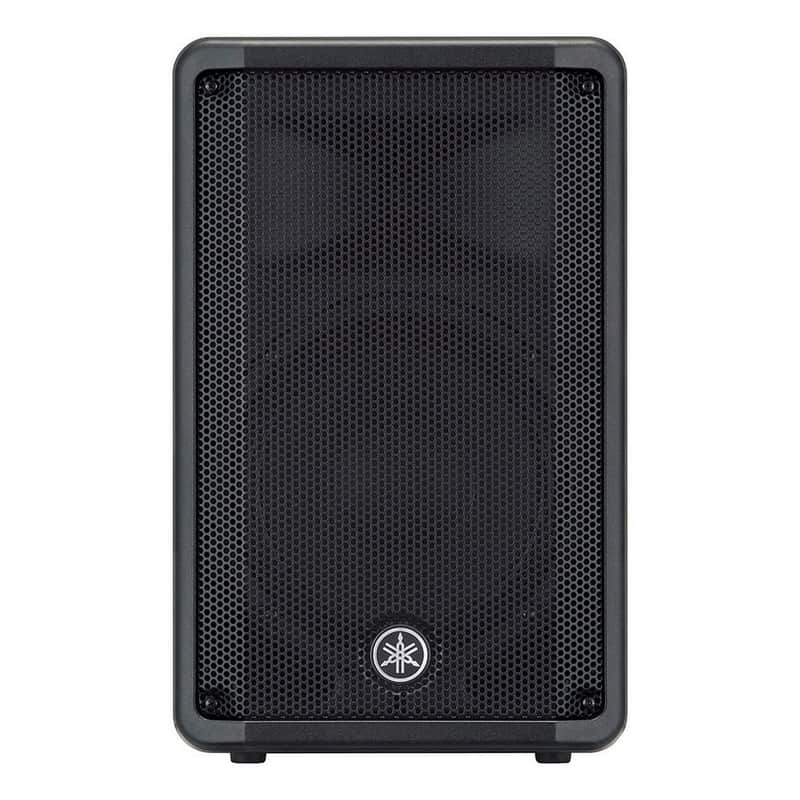

Active Speaker The DBR10 is the most compact model in its series and in its class. Capable of delivering a maximum SPL of 129dB from its compact enclosure, the DBR10 can be used as a utility speaker in a variety of environments. Key Features The DBR’s lightweight, high performance Class-D amplifier is capable of producing up to 700W of power, achieving an SPL of 132dB, delivered with remarkable clarity and dynamic characteristics The high power output woofers deliver well-defined, powerful bass with minimal distortion, while the 1 inch precision compression driver produces accurate mid-range and high frequenciesDBR Series speakers feature a compact, lightweight, and durable plastic cabinet which offers the highest level of portability of all Yamaha powered speakers Smart enclosure design for floor monitoring Easy-to-use onboard 2 channel mixer Technical Specifications Speaker Type2-way, Bi-amp powered speaker, Bass-reflex typeFrequency Range (-10dB)55Hz 20kHzNominal CoverageH: 90 degreeV: 60 degreeComponentsLF: Diameter: 10 inch cone, Voice Coil: 2 inch, Magnet: FerriteHF: Diaphragm: 1 inch, Type: 1 inch throat compression driver, Magnet: FerriteCrossover2.1kHz: FIR-X tuning (linear phase FIR filter)Output PowerDynamic: 700 W (LF: 500 W, HF: 200 W) / Continuous: 325 W (LF: 260 W, HF: 65 W)Maximum Output Level (1m; on axis)129dB SPLI/O ConnectorsINPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)ProcessorsD-CONTOUR: FOH/MAIN, MONITOR, OFFHeat DissipationFan cooling, 4 speedsPower Requirements100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60HzPower Consumption60W(1/8 Power Consumption), 18W(Idle)Cabinet MaterialPlasticFinishBlackHandleTop x 1Flying and Mounting HardwareBottom x 2 (Fit for M8 x 15 mm eyebolts)Pole Socket35mm (Bottom x 1)DimensionsW: 308mm (12.1 inch)H: 493mm (19.4 inch)D: 289mm (11.4 inch)Net Weight10.5 kg (23.2 lbs)AccessoriesBBS251, BCS251, BWS251-300, BWS251-400 (Optional Speaker bracket)
Condition notes
Brand New
