JBL CONTROL 25-1
JBL
CONTROL 25-1
- Condition
- New
- Type
- Passive
Ships to you
Posted with tracking, and shipping is included — the price you see is the price you pay. This one takes up to seven days to go out, and you'll get the tracking the moment it does.
Description

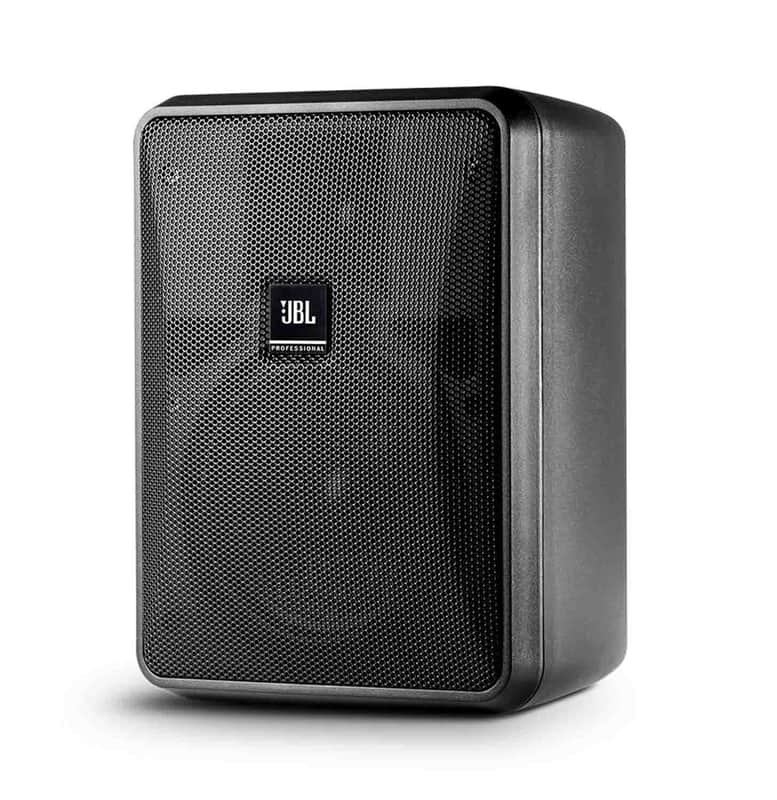

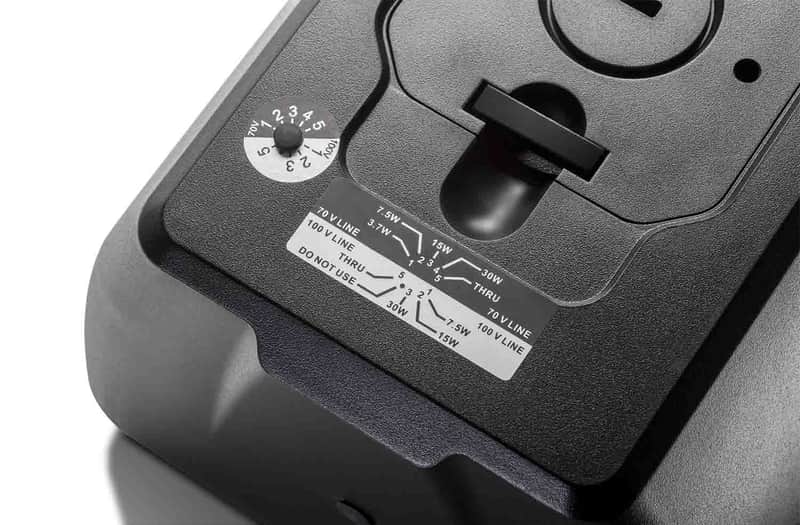

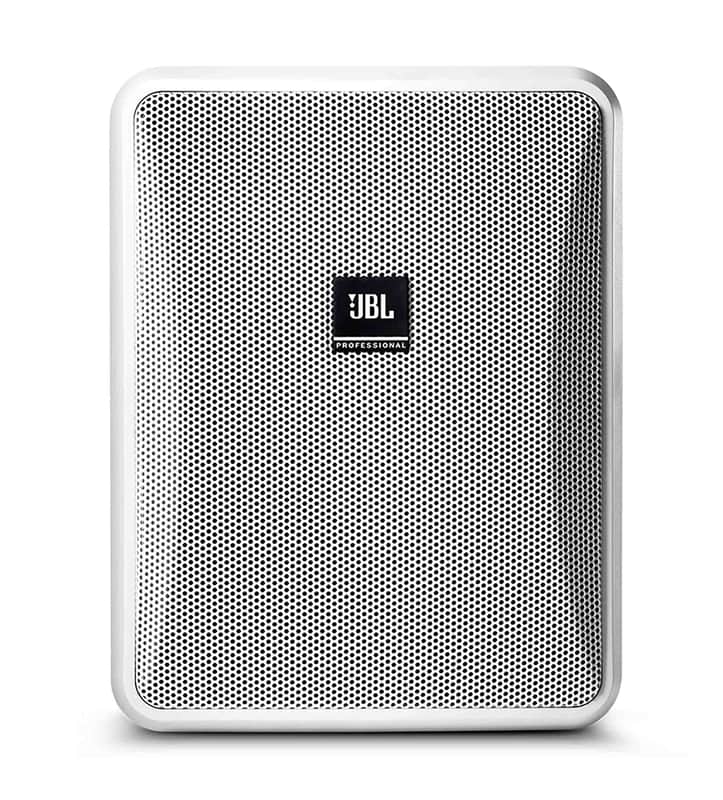

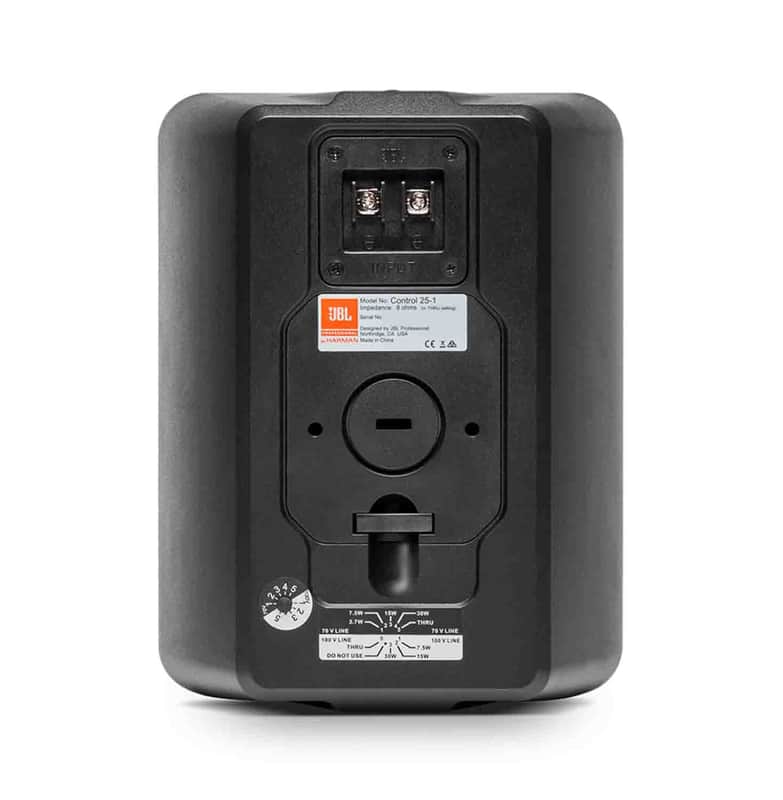

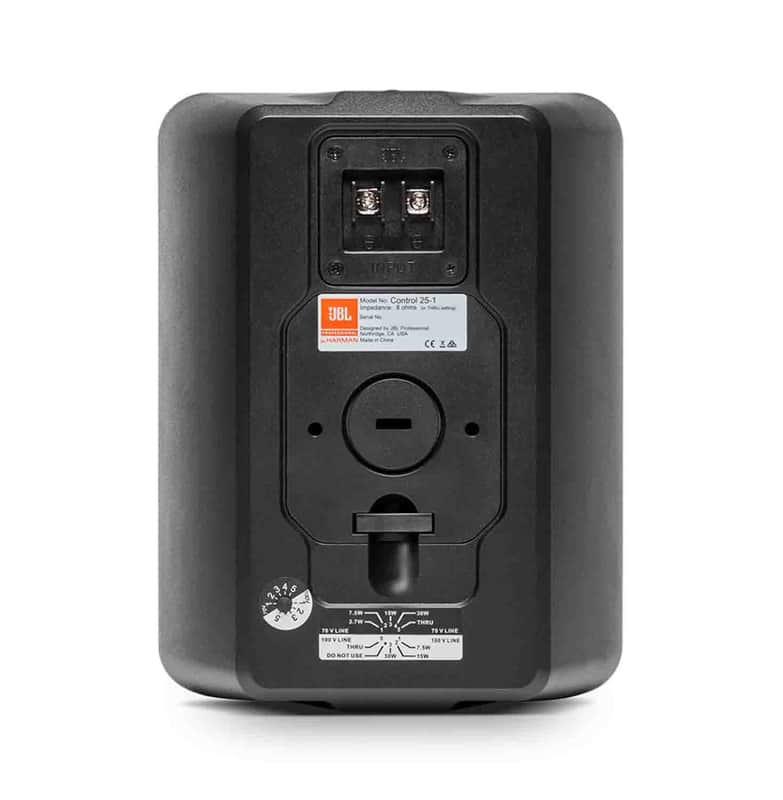

The Control 25-1 is a two-way 5” speaker with rich sonic character, wide coverage, consistent dispersion, versatile mounting, and a contemporary high-design look that fits into a wide range of decors. This makes Control 25-1 an excellent choice for a wide variety of applications, including retail stores, restaurants, health clubs, theme parks, educational facilities, hospitality, music cafes, leisure venues, and anywhere where a top quality high-output indoor/outdoor foreground/background music (and/or paging) speaker is required. Product Specifications: Frequency & Power: Frequency Range (-10dB): 60 Hz to 20 kHz Frequency Response (±3 dB): 85 Hz – 17 kHz Power Rating: 200W Continuous Program (2 hrs) / 100W (400W peak) Pink Noise Power Rating: 75W (300W peak, 100 hrs) Maximum Input Voltage: 25.3V RMS (2 hrs), 50.6V peak Maximum SPL (1m): 110 dB (116 dB peak) Sensitivity: 90 dB, 1W/1m (100 Hz – 10 kHz) Coverage & Directivity: Coverage Angle: 100°H x 100°V Directivity Factor (Q): 6.04 (1kHz – 16kHz) Directivity Index (DI): 7.6 dB (1kHz – 16kHz) Impedance & Crossover: Impedance: 8Ω (THRU setting) Crossover Type: 2nd order low-pass, 3rd order high-pass Transformer Taps: 70V: 30W, 15W, 7.5W, 3.7W 100V: 30W, 15W, 7.5W Insertion Loss: <0.94 dB at any tap setting Protective High-Pass Filter: Recommended: 60 Hz high-pass (24 dB/oct) Drivers: LF Driver: 5.25" woven-fiberglass cone, rubber surround, high-temp voice coil HF Driver: 0.75" PEI diaphragm, ferrofluid cooling, Kapton voice coil Enclosure & Grille: Material: High Impact Polystyrene (HIPS) Finish: UV-resistant paint (white version) Grille: Zinc-plated with TGIC polyester powder coating Mounting & Hardware: Included: InvisiBall wall-mount system, 6mm hex key Optional: MTC-25UB-1 – U-bracket MTC-25WMG-1 – WeatherMax grille MTC-28/25CM – Ceiling-mount adapter Outdoor & Safety Ratings: Weather Rating: IP-44 (IP-55 with optional WeatherMax grille) Safety Compliance: ROHS-compliant, Transformer UL Recognized (UL1876) Input & Connectivity: Connector Type: Screw-down terminal strip (supports up to 12 AWG wire) Optional Protective Covers: MTC-PC2, MTC-PC3 Physical & Dimensions: Colors: Black (RAL9004) / White (RAL9016) Dimensions (H x W x D): 9.6 x 7.4 x 5.7 in (8.0 in deep with InvisiBall bracket) Net Weight (each): 7.5 lbs (3.4 kg) Shipping Weight (pair-pack): 18 lbs (8.16 kg)
Condition notes
Brand New
