Yamaha DHR12M
Yamaha
DHR12M
- Condition
- New
- Type
- Active
Ships to you
Posted with tracking, and shipping is included — the price you see is the price you pay. This one takes up to seven days to go out, and you'll get the tracking the moment it does.
Description

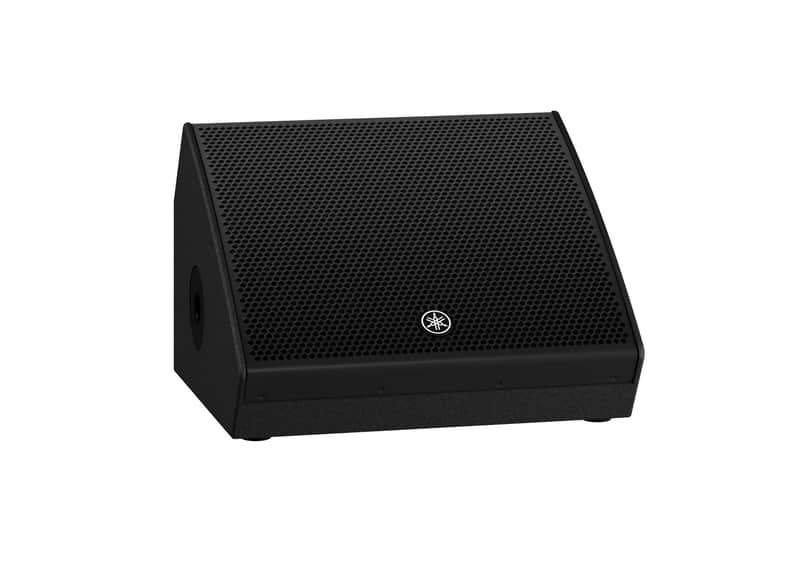

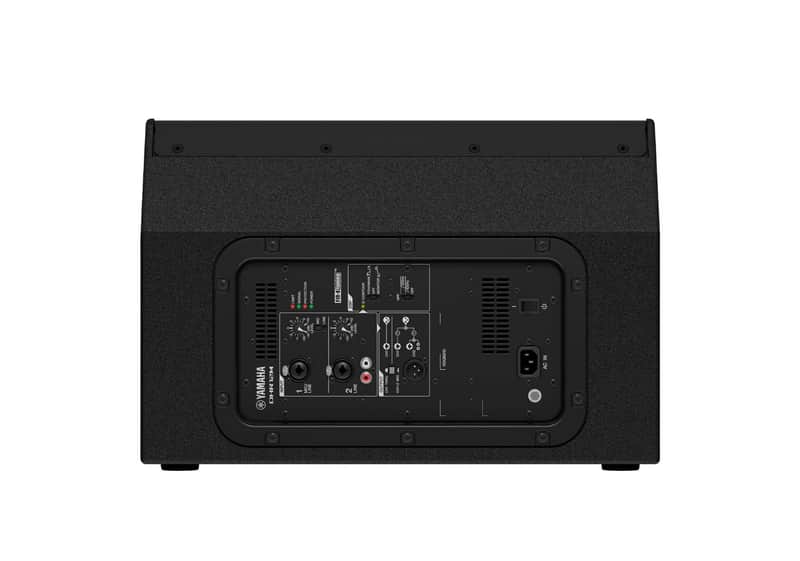

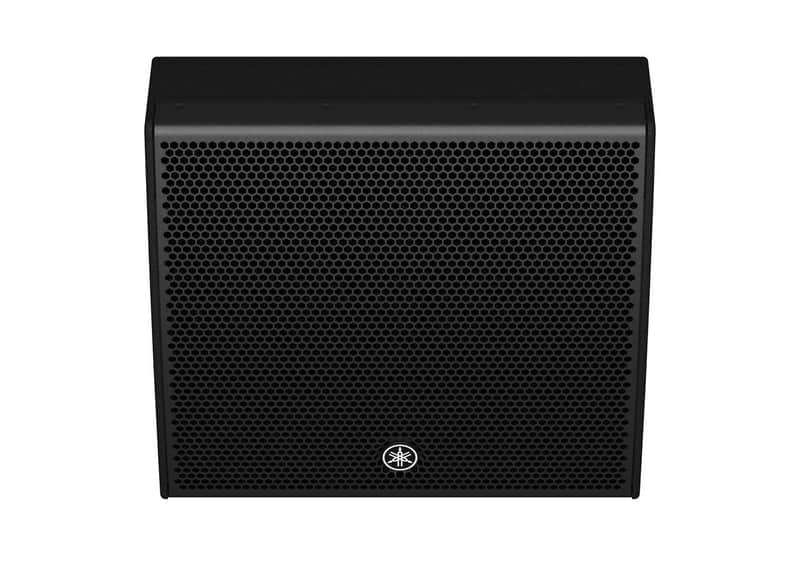

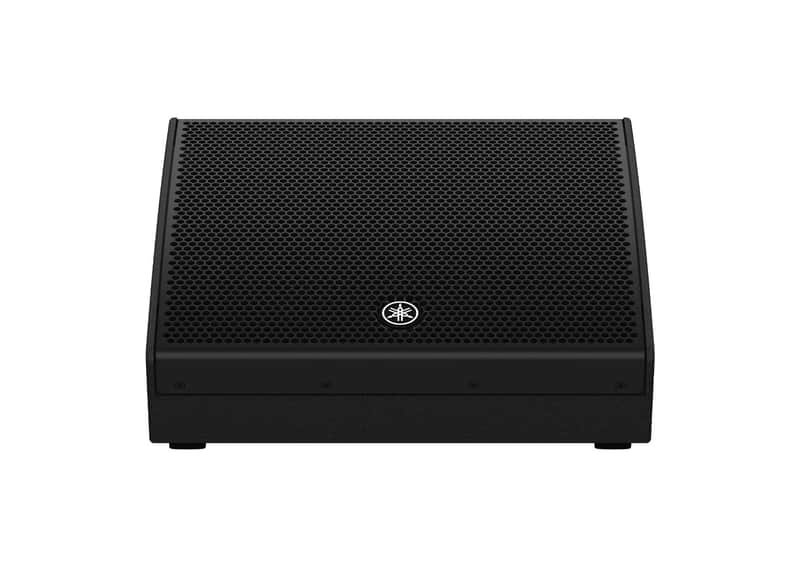

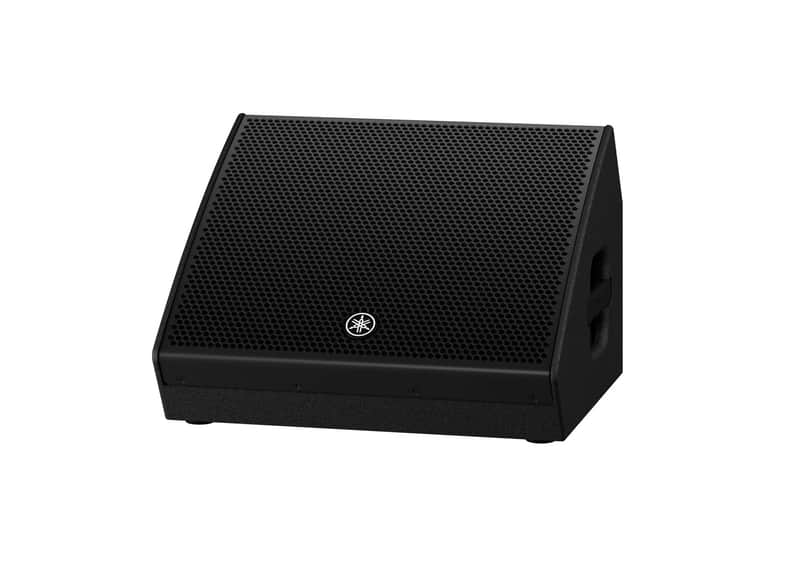

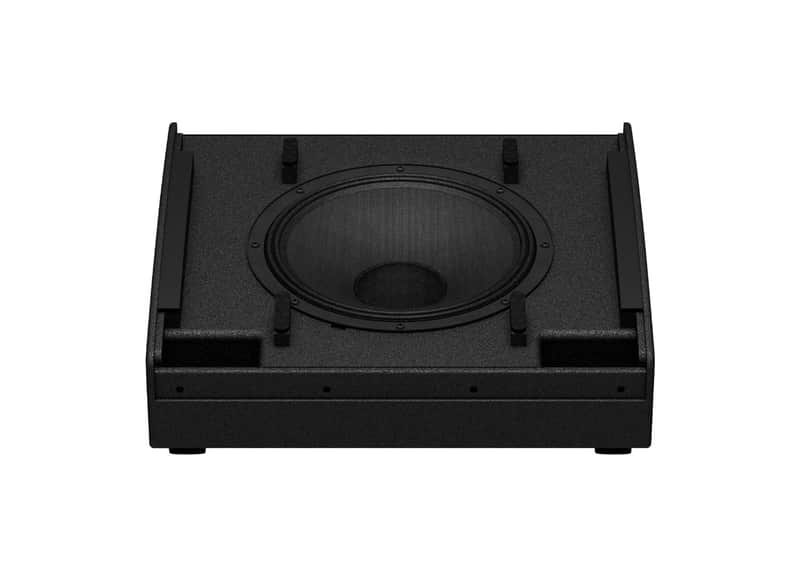

The Yamaha DHR12M is a professional 2-way bi-amp powered loudspeaker designed for floor monitoring applications. Its 12-inch woofer and 1.75-inch coaxial high-frequency driver deliver precise, consistent audio performance, with smooth phase and frequency response that ensures musicians hear every detail of their mix accurately. Built with the same high-grade plywood as Yamaha’s premium DZR Series, the DHR12M features a compact, low-profile cabinet with a durable polyurea coating. This design reduces vibrations, delivers clear sound, and provides a robust, scratch-resistant surface suitable for rigorous stage use. Equipped with a 1000W Class D amplifier and advanced DSP, the DHR12M incorporates FIR-X tuning for FIR filtering and corrective EQ, minimizing phase distortion. Its pole socket allows for easy mounting on stands, offering flexible placement options while maintaining professional-grade audio quality and reliability. Product Specifications: Speaker Type: 2-way, Bi-amped Powered Speaker, Bass-reflex Frequency Range (-10 dB): 50 Hz – 20 kHz Coverage Area: H65° × V75° Crossover: 1.8 kHz FIR-X tuning (Linear Phase FIR Filter) Maximum Output Level (Measured Peak, IEC Noise @1 m): 131 dB SPL LF Component: 15" Cone, 3" Voice Coil, Ferrite Magnet HF Component: 1.75" Diaphragm, 1" Throat Compression Driver Coaxial, Ferrite Magnet Amplifier Class: Class-D Power Rating (Dynamic): 1000 W (LF 800 W, HF 200 W) Power Rating (Continuous): 465 W (LF 400 W, HF 65 W) Cooling: Fan Cooling, 4 Speeds Power Consumption: 74 W (1/8 Power), 18 W (Idle) Power Requirements: 100 V, 100–120 V, 220–240 V, 110/127/220 V (Brazil), 50/60 Hz A/D D/A Converters: 24-bit, 48 kHz Sampling Processors: OFF, 100 Hz, 120 Hz, 24 dB/Oct.; D-CONTOUR FOH/MAIN, MONITOR, OFF I/O Connectors: INPUT1 Combo ×1; INPUT2 Combo ×1 + RCA Pin ×2 (Unbalanced); OUTPUT XLR3-32 ×1 (CH1 Parallel Through or CH1 + CH2 Mix) Cabinet Material: Plywood Finish: Durable Polyurea Painting, Black Handle: Side ×1 Pole Socket: Ø35 mm ×1 (Side) Floor Monitor Angle: 57° Product Weight: 50.7 lbs / 23.0 kg Product Dimensions (L × W × H): 19.9" × 25.3" × 14.5"
Condition notes
Brand New
Seller
Westlake Village, CA
★ 5.00
Description
The Yamaha DHR12M is a professional 2-way bi-amp powered loudspeaker designed for floor monitoring applications. Its 12-inch woofer and 1.75-inch coaxial high-frequency driver deliver precise, consistent audio performance, with smooth phase and frequency response that ensures musicians hear every detail of their mix accurately. Built with the same high-grade plywood as Yamaha’s premium DZR Series, the DHR12M features a compact, low-profile cabinet with a durable polyurea coating. This design reduces vibrations, delivers clear sound, and provides a robust, scratch-resistant surface suitable for rigorous stage use. Equipped with a 1000W Class D amplifier and advanced DSP, the DHR12M incorporates FIR-X tuning for FIR filtering and corrective EQ, minimizing phase distortion. Its pole socket allows for easy mounting on stands, offering flexible placement options while maintaining professional-grade audio quality and reliability. Product Specifications: Speaker Type: 2-way, Bi-amped Powered Speaker, Bass-reflex Frequency Range (-10 dB): 50 Hz – 20 kHz Coverage Area: H65° × V75° Crossover: 1.8 kHz FIR-X tuning (Linear Phase FIR Filter) Maximum Output Level (Measured Peak, IEC Noise @1 m): 131 dB SPL LF Component: 15" Cone, 3" Voice Coil, Ferrite Magnet HF Component: 1.75" Diaphragm, 1" Throat Compression Driver Coaxial, Ferrite Magnet Amplifier Class: Class-D Power Rating (Dynamic): 1000 W (LF 800 W, HF 200 W) Power Rating (Continuous): 465 W (LF 400 W, HF 65 W) Cooling: Fan Cooling, 4 Speeds Power Consumption: 74 W (1/8 Power), 18 W (Idle) Power Requirements: 100 V, 100–120 V, 220–240 V, 110/127/220 V (Brazil), 50/60 Hz A/D D/A Converters: 24-bit, 48 kHz Sampling Processors: OFF, 100 Hz, 120 Hz, 24 dB/Oct.; D-CONTOUR FOH/MAIN, MONITOR, OFF I/O Connectors: INPUT1 Combo ×1; INPUT2 Combo ×1 + RCA Pin ×2 (Unbalanced); OUTPUT XLR3-32 ×1 (CH1 Parallel Through or CH1 + CH2 Mix) Cabinet Material: Plywood Finish: Durable Polyurea Painting, Black Handle: Side ×1 Pole Socket: Ø35 mm ×1 (Side) Floor Monitor Angle: 57° Product Weight: 50.7 lbs / 23.0 kg Product Dimensions (L × W × H): 19.9" × 25.3" × 14.5"
Condition notes
Brand New
