JBL 305PMKII

Description

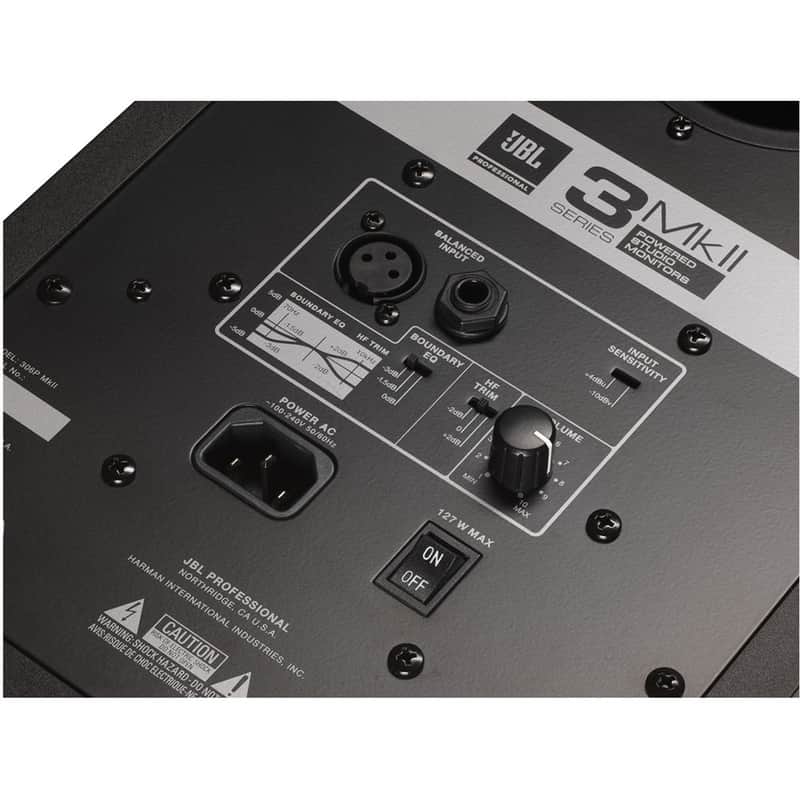

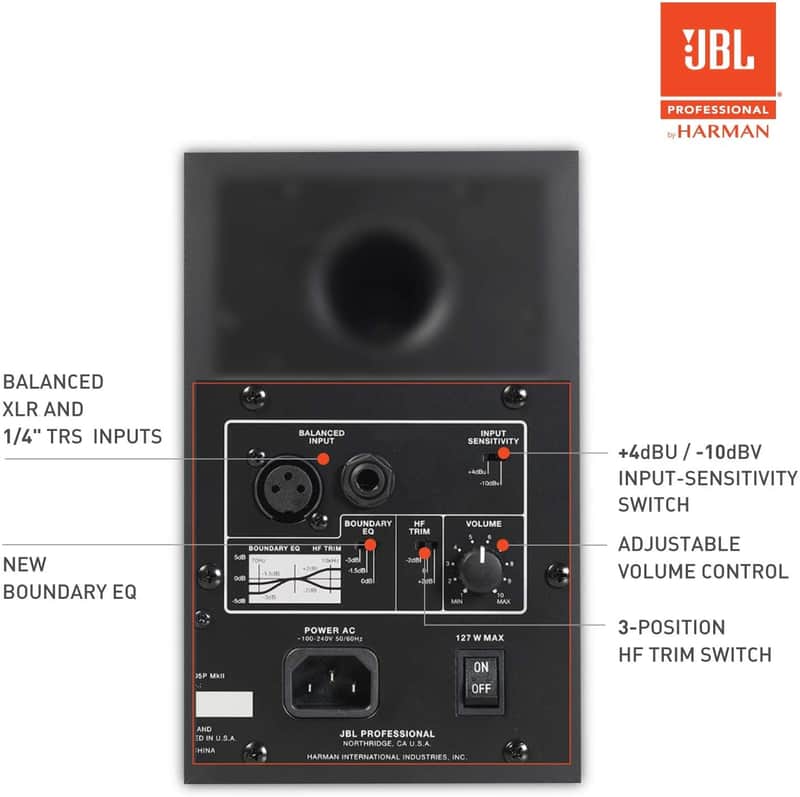

Brand NEW! Including 90 Days USA Factory Warranty. The JBL 305P MkII - Powered 5" Two-Way Studio Monitor is a bi-amplified reference monitor with next-generation drivers, offering high detail, precise imaging, a wide sweet spot, and a remarkable dynamic range to enhance the mix capabilities of any modern workspace. The magnetically-shielded 305P MkII features dual 41W Class-D amplifiers, which power the 5" low frequency woofer and woven-composite 1" neodymium tweeter. The combined output of the woofer and tweeter offer a frequency response of 49 Hz to 20 kHz with a peak SPL of 108 dB. The monitor features JBL's Image Control Waveguide technology for accurate audio reproduction and JBL's Slip Stream port design for improved bass response. The 305P MkII is equipped with a boundary EQ for controlling the low frequency response when placed near a wall, as well as a 3-position HF trim switch. To ensure flexible connectivity, JBL included a balanced XLR input and a balanced 1/4" TRS input, both of which feature dented level control. Other features include a selectable input sensitivity switch that ensures compatibility with a range of signal sources. The JBL 305P MkII ships with a power cord. Patented Image Control Waveguide for detailed imaging and a broad, room-friendly sweet spot High-quality JBL transducers for optimized transient response and improved linearity Patented Slip Stream low-frequency port for superior bass performance at all playback levels Dual integrated, custom Class-D amplifiers provide 112W of power for high output and dynamic range Boundary EQ settings compensate for low-frequency variants introduced by the environment HF Trim switch adjusts high-frequency output to room acoustics or personal preferences Flexible connectivity with balanced XLR and 1/4" TRS inputs, +4 dBu / -10 dBV input-sensitivity switch and adjustable volume control Engineered to JBL Linear Spatial Reference design criteria for outstanding accuracy in any working space Strenuous JBL 100-hour full-power test ensures years of reliability Sleek, modern design provides a visual upgrade to any studio JBL 305P MKII Specs Drivers LF Driver: 5.0" / 127.0 mm HF Driver: 1.0" / 25.4 mm HF Driver Type: Soft dome Crossover 1725 Hz 4th order acoustic Linkwitz-Riley Magnetic Shielding Yes Input Sensitivity 92 dB at 3.3' / 1 m (-10 dBV input) Power Configurations Bi-amplified HF Driver Power Amp 41 W, Class-D LF Driver Power Amp 41 W, Class-D Frequency Response 49 Hz to 20 kHz (±3 dB) Frequency Range 43 Hz to 24 kHz (-10 dB) Low Frequency Extension 43 Hz SPL Continuous: 94 dB Peak: 108 dB Maximum Input Maximum Peak Input Level (-10 dBV / +4 dBu): +6 dBV / +20.3 dBu THD System Distortion Criteria: <10% THD at maximum output with full compressor / limiter engagement Electrical Distortion Criteria: 0.2% THD @ 1 kHz / 2.83 VRMS output; <1% THD @ 1 kHz, full rated output Signal to Noise Ratio 75 dBA (A-weighted), 70 dBr (unweighted), relative to 2.83 VRMS output Dispersion H x V: 120° x 90° Inputs 1 x XLR female (balanced) 1 x TRS female (balanced) HF Trim Control -2 dB, 0 dB, +2 dB Equalization Boundary EQ: LF Shelf at 50 Hz: -3 dB, -1.5 dB, 0 dB Enclosure Type Ported Construction Material MDF: 0.6" / 15.0 mm Finish Matte black PVC Baffle Injection-molded structural ABS Power 100 to 240 VAC (±10%), 50 / 60 Hz Dimensions (H x W x D) 11.7 x 7.3 x 9.1" / 297.2 x 185.4 x 231.1 mm Weight 10.4 lb / 4.7 kg Packaging Info Package Weight 12.55 lb Box Dimensions (LxWxH) 14 x 12 x 10" - All international buyers are responsible for all tax, duties and/or customs fees.

year

2020
