L5 Speakers Pair Of Vintage

$1,979

Condition: Mint
Type: Floorstanding
Finish: Restored - 1 Year Warranty

Ships to you

Posted with tracking, and shipping is included — the price you see is the price you pay. This one takes up to seven days to go out, and you'll get the tracking the moment it does.

Description

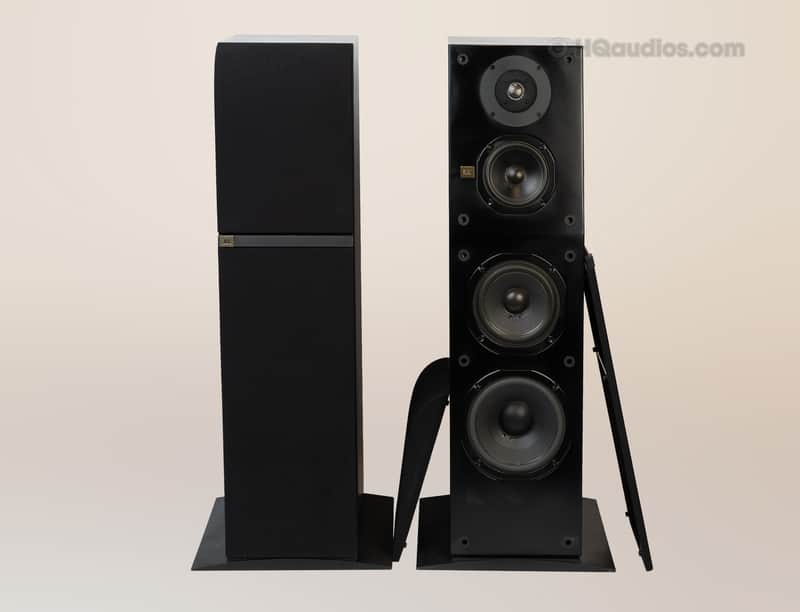

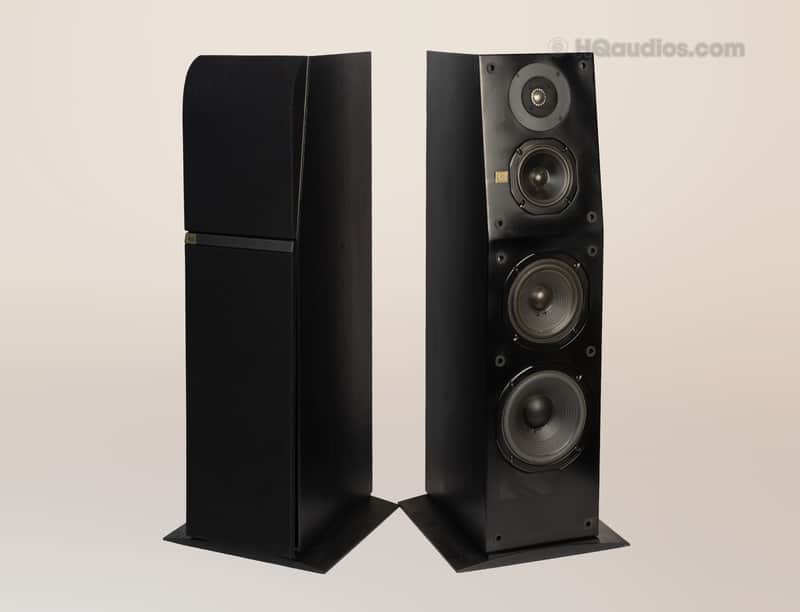

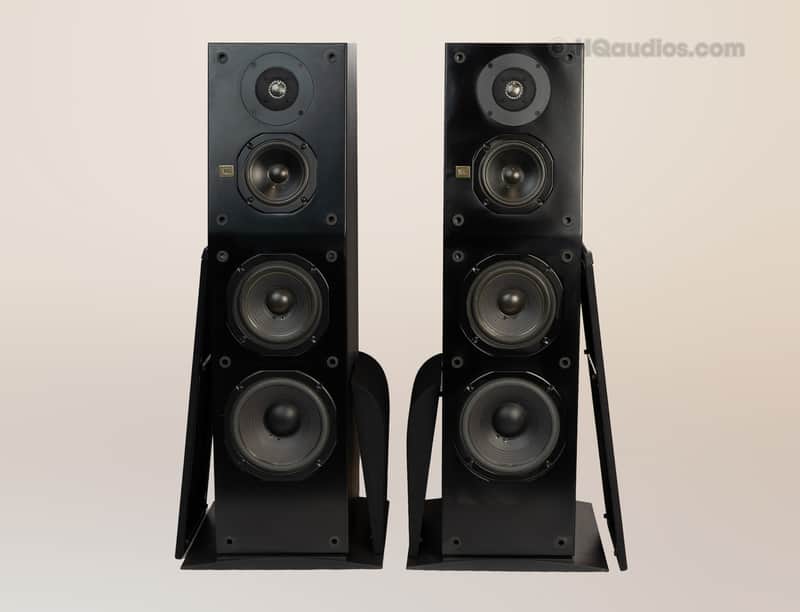

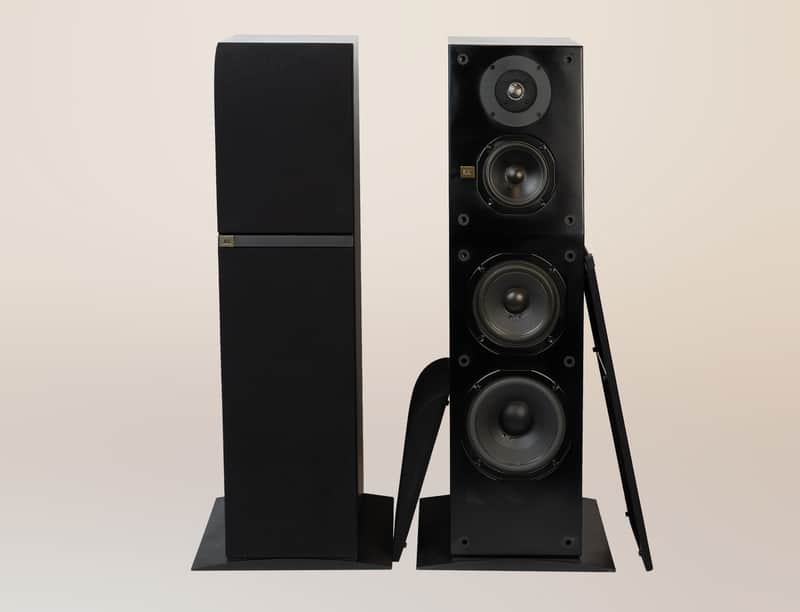

JBL L5 Pair Of Vintage Speakers - Professionally Restored - 1-Year Warranty 1/ Overview The JBL L5 represents a more modern interpretation of the JBL sound, combining the company's studio-monitor heritage with a tall, narrow floorstanding enclosure designed for strong imaging, wide dispersion, and substantial low-frequency output. Unlike the passive-radiator description sometimes associated with this model online, the factory L5 configuration uses four active transducers: a 1-inch pure titanium dome tweeter, a 5-inch midrange driver, and two low-frequency drivers measuring 6.5 inches and 8 inches. The three crossover points at 170 Hz, 900 Hz, and 4 kHz divide the system into four operating bands. JBL designed the L Series with a narrow front profile to improve dispersion and stereo imaging, while the slanted baffle aligns the driver voice coils more closely in time and reduces parallel internal surfaces. High-density fiberboard baffles, internal bracing, die-cast low-frequency frames, and Symmetrical Field Geometry motor technology further support the L5's controlled, dynamic presentation. This pair has been professionally serviced, cleaned, and tested by HQaudios. The restoration work was based on the actual condition recorded during inspection, including individual driver checks, resistance measurements, attention to the low-frequency section, and service to grille and foam areas. 2/ Key Highlights Authentic pair of JBL L5 floorstanding speakers 4-way, 4-driver loudspeaker system 1-inch pure titanium dome tweeter 5-inch die-cast-frame midrange driver 6.5-inch and 8-inch die-cast-frame low-frequency drivers 35 Hz-27 kHz frequency response 90 dB sensitivity 6-ohm nominal impedance 35W minimum recommended amplifier power 350W maximum recommended amplifier power Narrow baffle and slanted-front cabinet geometry Molded stabilizing bases installed Individual driver sections inspected and measured Low-frequency section serviced based on inspection findings Grille and foam areas repaired and secured Left and right speaker operation compared after service Backed by our 1-Year HQaudios Warranty 3/ Basic Specifications Brand: JBL Model: L5 Product Type: Floorstanding Loudspeaker System System Design: 4-Way, 4-Driver High-Frequency Driver: 1-Inch Pure Titanium Dome Midrange Driver: 5-Inch Die-Cast-Frame Driver Low-Frequency Drivers: 6.5-Inch and 8-Inch Die-Cast-Frame Drivers Crossover Frequencies: 170 Hz / 900 Hz / 4 kHz Frequency Response: 35 Hz-27 kHz Sensitivity: 90 dB (1W/1m) Nominal Impedance: 6 Ohms Minimum Recommended Amplifier Power: 35 Watts Maximum Recommended Amplifier Power: 350 Watts Dimensions Each: 35.9 x 9.625 x 12 Inches - H x W x D Dimensions Each - Metric: 912 x 244 x 304 mm - H x W x D Weight Each: 68 lbs / 30.9 kg Finish: Black Warranty 1-Year HQaudios Warranty 4/ Sound Character The JBL L5 combines the physical energy associated with JBL with a more focused and spatially precise presentation than many of the company's earlier wide-baffle designs. The 8-inch driver anchors the deepest bass region, while the 6.5-inch driver bridges the upper bass and lower midrange. This division of labor helps the L5 produce strong low-frequency weight without asking a single woofer to cover too broad a range. The dedicated 5-inch midrange keeps vocals, guitars, piano, and acoustic instruments clearly separated from the bass foundation. Above 4 kHz, the pure titanium dome tweeter contributes fast transient response, clean detail, and a sense of openness that complements the narrow baffle and angled front geometry. The result is energetic, controlled, and spacious. The L5 works especially well with rock, jazz, funk, soul, electronic music, acoustic recordings, vinyl playback, and high-quality digital sources. Careful placement allows the speaker to show one of its strongest qualities: a broad stereo image with good center focus and convincing depth beyond the physical cabinet boundaries. 5/ HQaudios Restoration & Testing Process Before Restoration Both JBL L5 speakers underwent a detailed visual and operational inspection. Each driver section was checked individually to evaluate operating condition. Driver resistance measurements were recorded to compare the left and right speakers. The low-frequency section showed an issue that required service. Grille and foam condition were inspected, with age-related deterioration noted. Rear terminals, cabinet condition, molded bases, and overall speaker operation were evaluated before service. During Restoration The affected low-frequency section was serviced to restore proper operation. Low-frequency driver assemblies were inspected and rechecked after service. Midrange and tweeter operation were verified on both speakers. Driver resistance was checked again to confirm stable and consistent operation. Grille and foam areas showing deterioration were repaired and secured. Rear terminals and accessible connections were cleaned and inspected. Cabinet surfaces, grilles, badges, and molded bases were carefully cleaned while preserving the original finish. Both speakers were reassembled and prepared for final full-range testing. After Restoration Both low-frequency sections were tested for proper output. Midrange drivers were checked for clear and consistent operation. Titanium dome tweeters were verified for proper high-frequency output. Left and right speaker performance was compared for overall balance. Full-range playback was used to evaluate tonal continuity across all four driver sections. Bass performance was checked for unwanted mechanical noise or cabinet vibration. Grille assemblies, molded bases, and cabinet structures were rechecked after service. The pair underwent extended listening evaluation through a complete stereo system. Final approval focused on driver operation, left-to-right consistency, tonal balance, imaging, and stable real-world playback. 6/ Cosmetic Condition This pair of JBL L5 speakers presents in attractive vintage cosmetic condition. The tall black cabinets retain the clean architectural appearance that distinguishes the L Series, with narrow front baffles, dark grilles, gold-tone JBL badges, and substantial molded bases. With the grilles removed, the four-driver layout is clearly visible and both speakers present consistently as a pair. Normal signs associated with age and previous use may remain on the cabinet surfaces, grilles, bases, or trim. Please review all product photos carefully for the exact condition of the cabinets, grilles, drivers, bases, terminals, badges, and rear identification labels. 7/ What Is Included One pair of JBL L5 floorstanding speakers Original-style grilles shown in the product photos Molded stabilizing bases installed on both speakers Installed tweeters, midrange drivers, and low-frequency drivers 8/ 1-Year HQaudios Warranty Amplifiers, receivers, speaker cables, source components, stands, decorative accessories, and other equipment are not included unless specifically stated. 9/ Suggested Pairing The JBL L5 benefits from amplification with stable current delivery into a 6-ohm load and enough reserve to preserve bass control and dynamics without clipping. Marantz System Marantz 2285B Stereo Receiver The 2285B adds a fuller and warmer tonal balance that complements the L5's titanium high-frequency presentation. Its power reserve also gives the dual low-frequency section good control and helps preserve dynamics at higher listening levels. Pioneer System Pioneer SX-1050 Stereo Receiver The SX-1050 provides strong bass control and an energetic presentation. Paired with the L5, it creates a dynamic system with convincing low-frequency weight and enough headroom for larger listening rooms. Sansui System Sansui AU-717 Integrated Amplifier The AU-717 offers a more direct and controlled presentation. Its strong low-frequency performance works well with the L5's dual-bass architecture, while its clarity through the midrange preserves imaging and vocal definition. McIntosh System McIntosh C28 Preamplifier + MC2205 Power Amplifier For listeners seeking greater refinement, the C28 and MC2205 provide generous headroom and excellent control while keeping the L5 composed through the upper midrange and treble. Luxman System Luxman L-550 Integrated Amplifier The L-550 can give the JBL L5 a smoother, more relaxed character while preserving the speaker's clarity and stereo imaging, making it attractive for vocals, acoustic recordings, and jazz. 10/ Trade-In Welcome HQaudios may accept selected vintage audio equipment as a trade-in toward your purchase. 11/ Combo Discount Save $100 when purchasing this pair together with an eligible restored vintage audio component from HQaudios. 12/ Video Test Available A video demonstration may be available upon request, including individual driver output, left-to-right comparison, full-range playback, and close-up views of the cabinets and drivers. 13/ Shipping Each JBL L5 cabinet weighs approximately 68 lbs before packaging and will be packed separately for safe transport. Protective cabinet wrapping Grille and front-baffle protection Reinforced corner protection Protection around the molded bases Dense internal cushioning Heavy-duty individual cartons Reinforced outer packaging Secure strapping and handling labels Tracking and insurance where available 14/ 1-Year HQaudios Warranty This pair is backed by our 1-Year HQaudios Warranty covering proper functional operation under normal residential use and the service work performed by HQaudios. The warranty does not cover misuse, excessive amplifier power, amplifier clipping or failure, physical damage, unauthorized driver or crossover modification, cosmetic wear, or damage occurring after delivery. 15/ Returns & Buyer Support Please inspect both speakers and all packaging promptly after delivery. Contact HQaudios before attempting driver removal, crossover modification, cabinet work, or return shipment. We can assist with amplifier matching, 6-ohm speaker compatibility, speaker-cable connection, placement, toe-in, bass response optimization, and general system setup. 16/ Important Vintage Audio Note The JBL L5 is a passive 6-ohm loudspeaker system and should be connected to an amplifier or receiver that can operate safely with this load. JBL recommends amplifier power between 35 watts and 350 watts for the L5. Avoid amplifier clipping, as a smaller amplifier driven into heavy distortion can damage speaker drivers even when its rated output appears modest. Careful placement also matters. The L5 was designed for strong stereo imaging, and positioning the pair with appropriate distance from walls and a slight inward angle can improve both soundstage depth and bass balance. 17/ Why Buy From HQaudios? Authentic JBL L5 pair Factory specifications double-checked against JBL documentation Individual driver sections inspected and measured Low-frequency section serviced based on actual inspection findings Grille and foam restoration work completed Left and right speaker performance compared after service Original molded stabilizing bases included Protective packaging for tall, heavy floorstanding speakers Assistance with amplifier matching and room placement 1-Year HQaudios Warranty Ongoing buyer support after delivery HQaudios - Vintage Audio Restored with Care. Professionally Restored - Carefully Packed - 1-Year Warranty.

Condition notes

Excellent
