Dynacord Mint, Open Box

Description

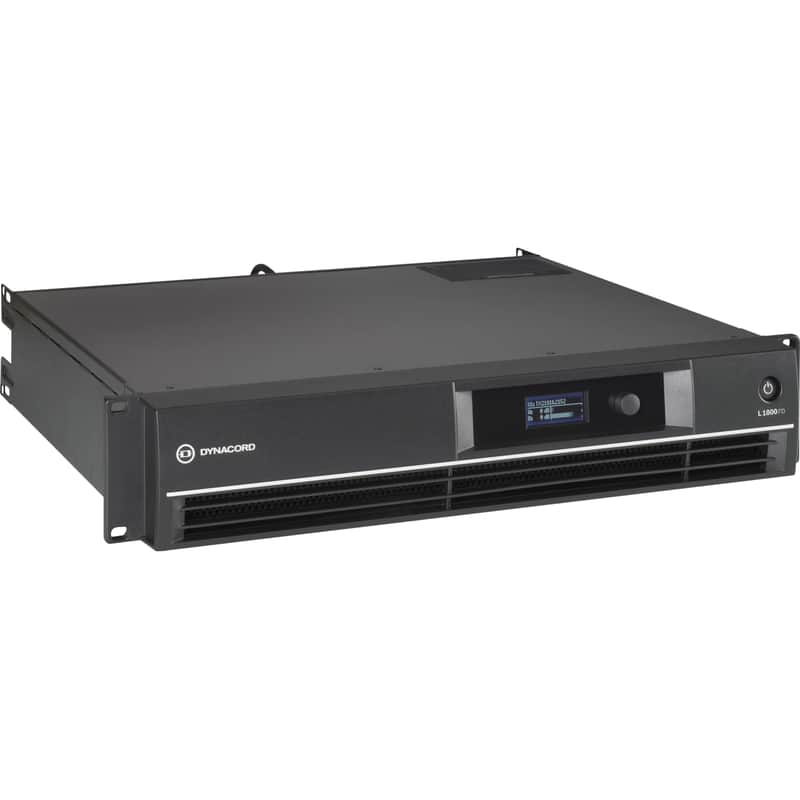

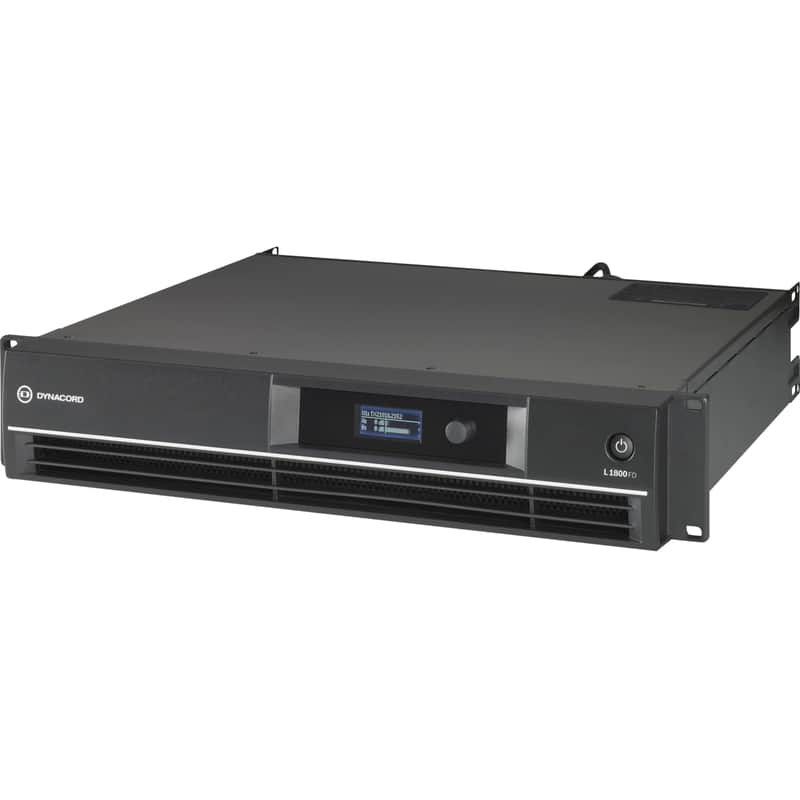

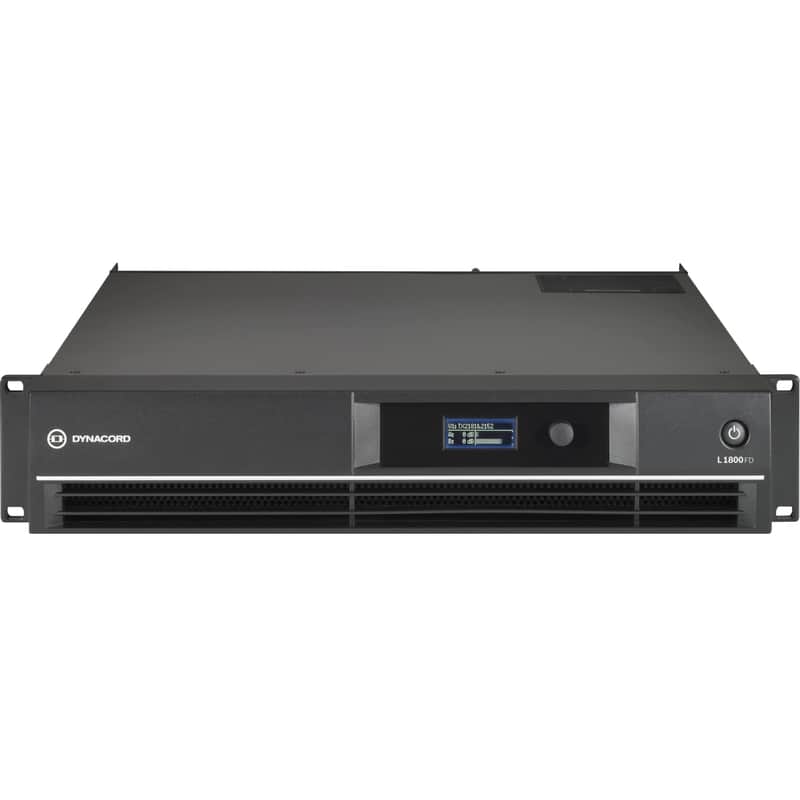

Dynacord L1800FD is a Premier DSP 2 x 950W Power Amplifier for Live Performance Applications Dynacord L Series are professional dual channel audio amplifiers for live and mobile applications. Integrated digital signal processing provides access to professional speaker processing with FIR Drive technology. L Series amplifiers utilize Class A/B resp. Class H topologies, which provide market leading acoustic performance and reliability. The connectivity is optimized for the needs of mobile applications. A front panel LC display allows local control and supervision of the amplifier. An intuitive system control software allows fast system setup, flexible system control and comprehensive supervision. Professional DSP amplifier for live and mobile application Fully integrated professional speaker processing with FIR drive technology Market-leading acoustic performance and rock solid reliability Intuitive, simplified set-up, control and operation in SONICUE sound system software with firmware 2.0 SPECIFICATIONS General Maximum RMS Voltage Swing (THD = 1%, 1 kHz): 65.1 V Voltage Gain (Ref. 1 kHz): 32.0 dB THD at 600 W/4 Ω MBW = 80 kHz, 1 kHz: less than 0.05% IMD-SMPTE, 60 Hz, 7 kHz: less than 0.1% DIM30, 3.15 kHz, 15 kHz: less than 0.05% Maximum Input Level: +21 dBu Crosstalk ref. 1 kHz, at 100 W/4 Ω: less than -80 dB Frequency Response, ref. 1 kHz: 10 Hz to 21 kHz (±1 dB) Input Impedance, Active Balanced: 20 k Ω Signal to Noise Ratio Amplifier, A-weighted, ref to Max. Output Power @ 8 Ω: greater than 105 dB Output Noise, A-weighted: less than -68 dBu Output Stage Topology: Class AB Power Requirements: 240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz (factory configured) Power Consumption (1/8 Maximum Output Power @ 4 Ω): 700 W Mains Fuse: 240 V/230 V: T12AH; 120 V/100 V: T25AH Protection: Audio limiters, high temperature, DC, HF, Back-EMF, Peak current limiters, Inrush current limiters, Turn on delay Cooling: Front-to-rear, 3-stage-fans Ambient Temperature Limits: +5°C to +40°C (40°F to +105°F) Safety Class: I Color: Black Dimensions (W x H x D): 483 x 88 x 462.4 mm Weight: 15.2 kg (33.5 lb) Signal Processing: FIR filters, audio limiters, output and array** delay, 10-band** user PEQ, 5-band array PEQ** per channel, load impedance Remote Control: SONICUE sound system software** Accessories: RMK15 (rear rack mount kit) ** requires Firmware 2.0 Max Output Power Max Output Power, Single Channel: 2Ω 1600 W, 2.6Ω 1300 W, 4Ω 950 W, 8Ω 480 W Max Output Power, Dual Channel: 2Ω 1400 W, 2.6Ω 1200W, 4Ω 850 W, 8Ω 450 W Max Output Power, Bridged: 4Ω 2800 W, 8Ω 1700 W Manufacturer: Dynacord Model: L1800FD-US SKU: I495014-GA9992511-1-WHXC UPC: 800549797764 We are Chuck Levin's Washington Music Center Since 1958, Chuck Levin’s Washington Music Center has been the trusted destination for musicians and audio professionals across Maryland, Virginia, and Washington, D.C. Family-owned and operated, our legendary music store delivers Everything in Music®—from instruments and recording gear to pro audio, rentals, and repair services. Our team of musicians and industry experts lives and breathes gear, helping you build the perfect setup for your next performance, studio session, or installation. As an authorized dealer for top brands, we also offer our award-winning CHUCKSCLUSIVE line—exclusive, limited-edition instruments and collaborations recognized with the NAMM Top 100 Dealer Innovation Award for redefining what a music retail experience can be. Chuck Levin’s isn’t just a store—it’s a community built by players, engineers, and creators who share a lifelong passion for sound.
