TOA P-924MK2 UL
TOA
P-924MK2 UL
- Condition
- New
- Type
- Power
Ships to you
Posted with tracking, and shipping is included — the price you see is the price you pay. This one takes up to seven days to go out, and you'll get the tracking the moment it does.
Description

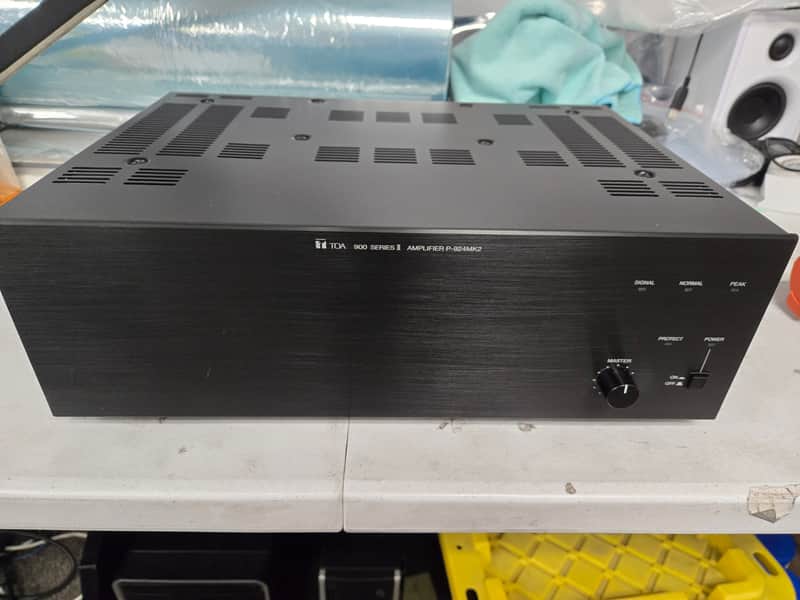

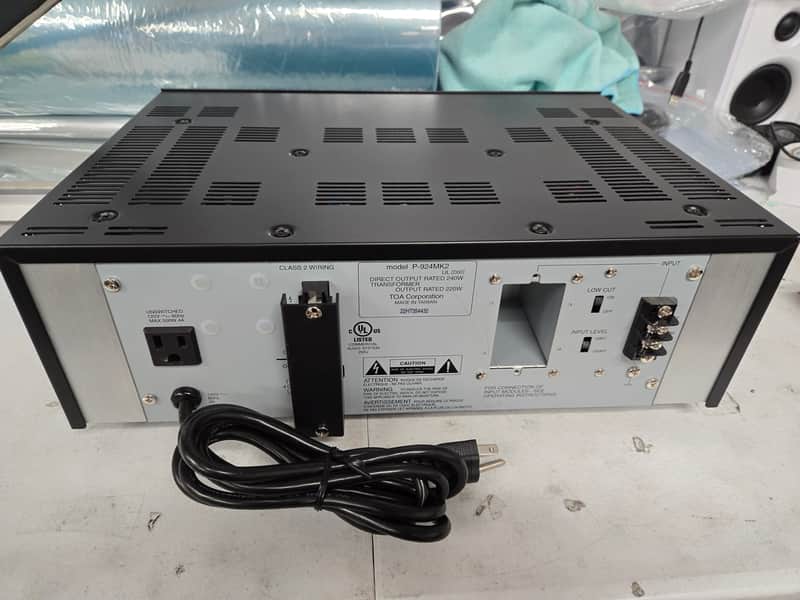

The P-924MK2 Power Amplifier delivers up to 240 watts (Direct)/220 watts (Transformer) of output power. The power amplifier has an input port to accept one plug-in module. Technical Specifications Type Power amplifier Power Requirement AC mains, 120 V, 60 Hz Power Consumption 120 V /3 A Output Power (D) 240 W RMS (T) 220 W RMS Power Band Width (D) 20 20,000 Hz, 0.5 % THD (T) 50 20,000 Hz, 0.5 % THD Frequency Response (D) 20 20,000 Hz, -1 dB (T) 20 15,000 Hz, -1 dB, (T) 20 20,000 Hz, +1 dB, -3 dB T.H.D 0.01 % at 1 kHz, rated output Inputs One Input Port: Port accepts any input module exept T-01. Input Sensitivity /Impedance Input Port: 100 mV or 1000 mV (switchable)/10 k Direct Input: 100 mV or 1000 mV (switchable)/10 k Outputs(T)=Transformer (D)=Direct Main (T): 8 , 25 and 70 volts, balanced Main (D): 4 , unbalanced Output Regulation(1kHz) (D) Less than 0.5 dB, no load to full load (T) Less than 1.0 dB, no load to full load S/N Ratio(Band Pass 20-20,000Hz) Input level switch in 0 dBV (1000 mV) position: 108 dB Input level switch in -20 dBV (100 mV) position: 90 dB Controls 1 Input gain control 1 Input level switch 1 Power ON/OFF switch 1 Low-Cut switch Indicators 1 Power LED, 1 Protect LED, 1 Signal LED, 1 Normal LED, 1 Peak LED Protection Self-protection, with 2AC fuses and 2DC fuses (inside) Connectors Input: Card-edge connector and screw-terminal strip Output: Screw-terminal strip AC outlet: 3-pin grounding type AC power cord/plug: SJT, 3-prong type Finish Black Dimensions 420 (W) 151.3 (H) - 334.2 (D) mm Weight 19.5 kg
Condition notes
Brand New
