SONOLARI Power DSP 4x8

Description

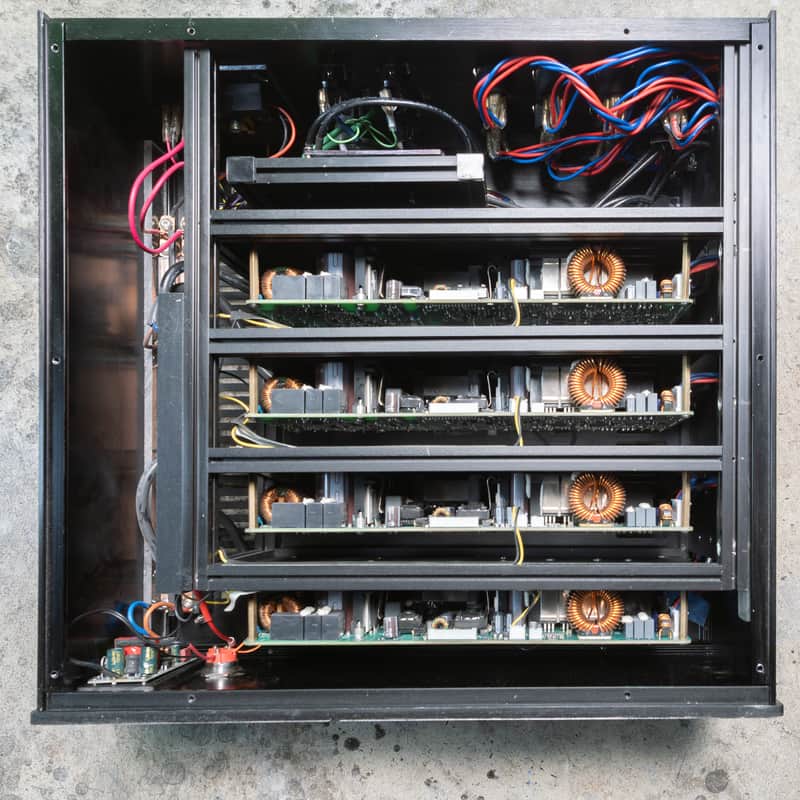

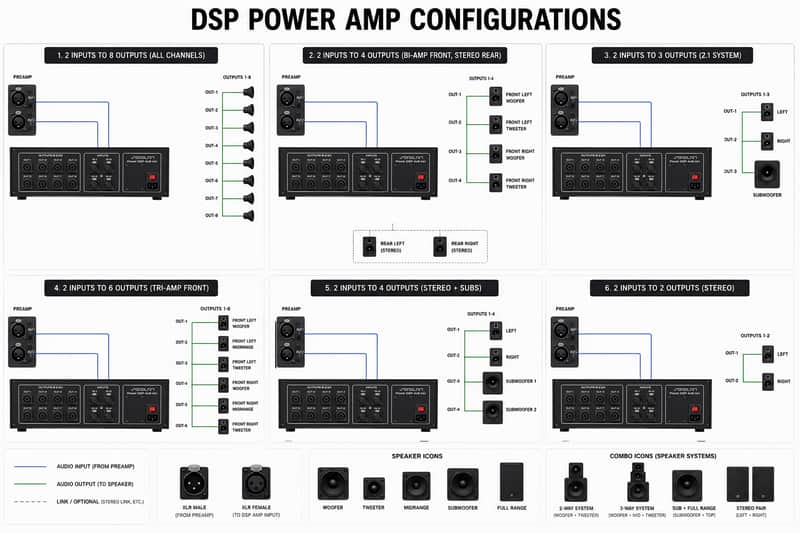

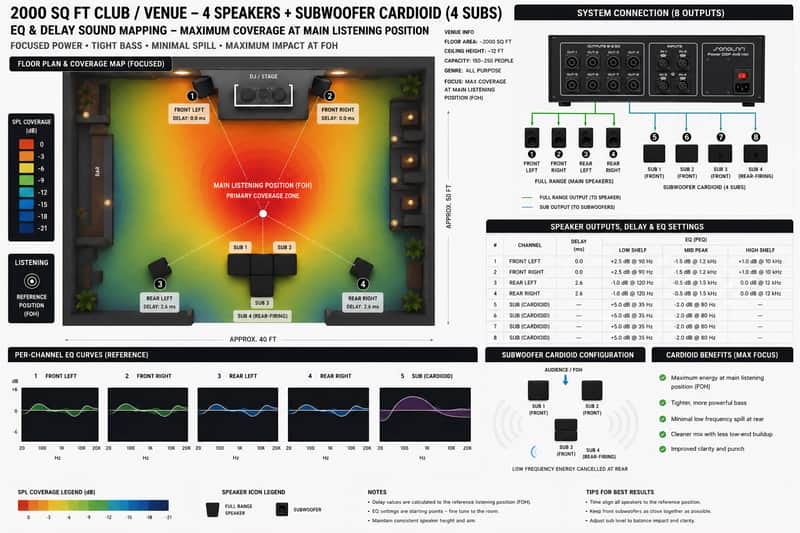

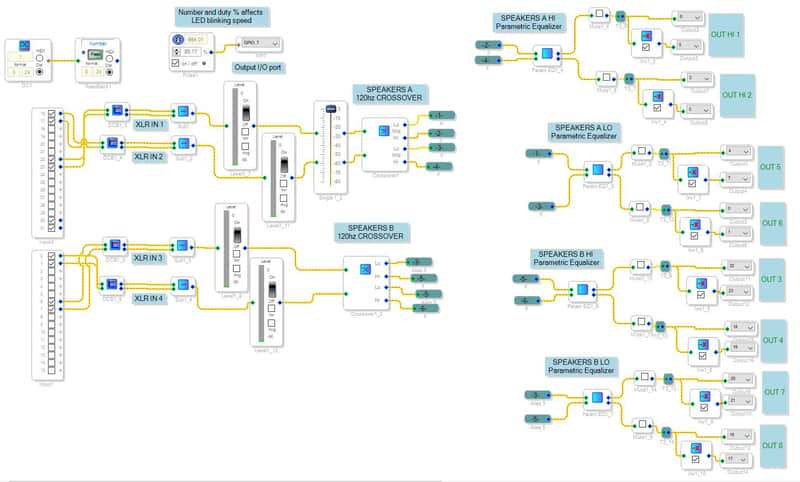

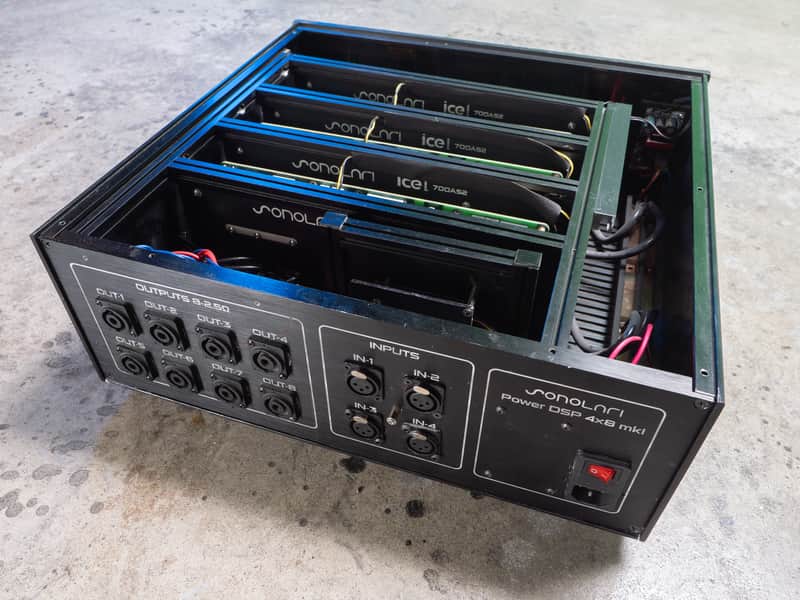

SONOLARI Power DSP 4x8-Channel FIR DSP Amplification Platform — ADAU1466 / ICEpower / 192kHz Professional multi-channel DSP amplification platform designed for active loudspeaker systems, immersive audio environments, FIR processing, and custom installation applications. Built around the Analog Devices ADAU1466 DSP architecture and ICEpower amplification modules, the SONOLARI Power DSP 4x8 combines high-resolution signal processing, flexible routing, and high-power multi-channel amplification in a compact integrated system. The amplifier section uses four ICEpower 700AS2 modules, providing 8 amplified output channels with substantial output capability for demanding active loudspeaker and venue applications. The integrated ADAU1466 DSP operates at 192kHz for ultra-low latency processing and high signal integrity. Supported DSP Configurations 2-in / 8-out 4-in / 8-out Multi-way active crossovers FIR processing Delay alignment Matrix routing Parametric equalization Immersive / spatial audio configurations Cardioid subwoofer arrays DSP configuration is handled through Analog Devices SigmaStudio, allowing advanced customization and rapid prototyping workflows. A ready-to-use base project/template for this hardware platform is included. Originally developed as an R&D and system-tuning platform for SONOLARI loudspeaker development, the unit is equally suited for: Active speaker systems Venue processing Immersive audio installations Loudspeaker prototyping Custom DSP applications System integration Educational / research environments Included With Sale On-site delivery and basic setup assistance anywhere in Southern California Delivery to adjacent states negotiable Remote troubleshooting/support for 2 weeks after delivery Base SigmaStudio project/template Additional professional consulting is also available for: Multi-way loudspeaker design System optimization Venue tuning FIR implementation Sound mapping Immersive audio configuration Technical Specifications DSP: Analog Devices ADAU1466 DSP Sample Rate: 192kHz Amplification: 4x ICEpower 700AS2 modules Channels: 8 amplified outputs FIR Support: Yes DSP Programming: SigmaStudio Routing: Fully configurable matrix Cooling: Passive Inputs: 4x balanced XLR Outputs: 8x Speakon speaker outputs Applications: Active crossover / FIR / immersive audio / venue processing Dimensions Width: 43 cm (17 in) Height: 17 cm (6.7 in) Depth: 41 cm (16.1 in)

Condition notes

Very Good

year

2026
