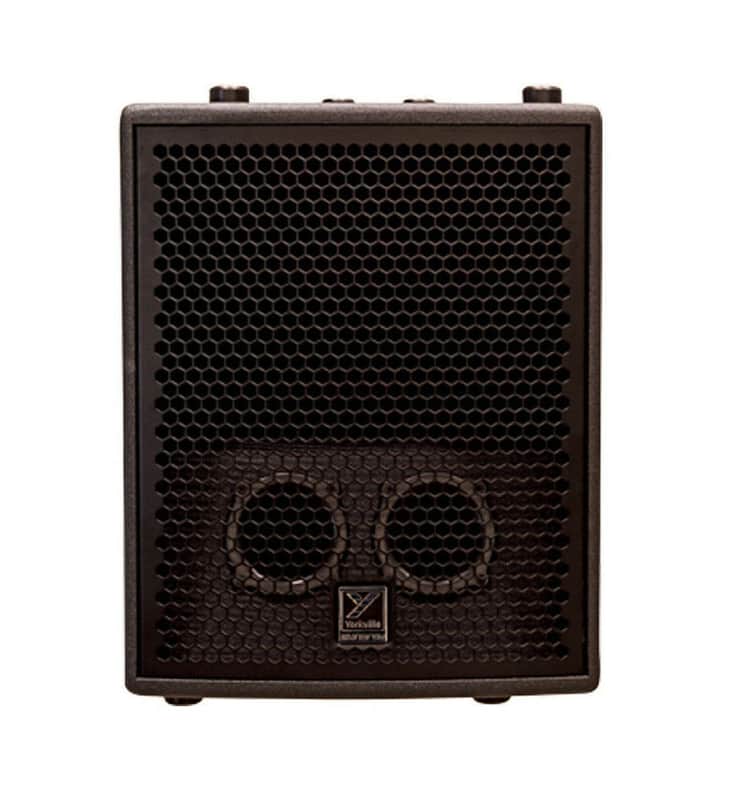

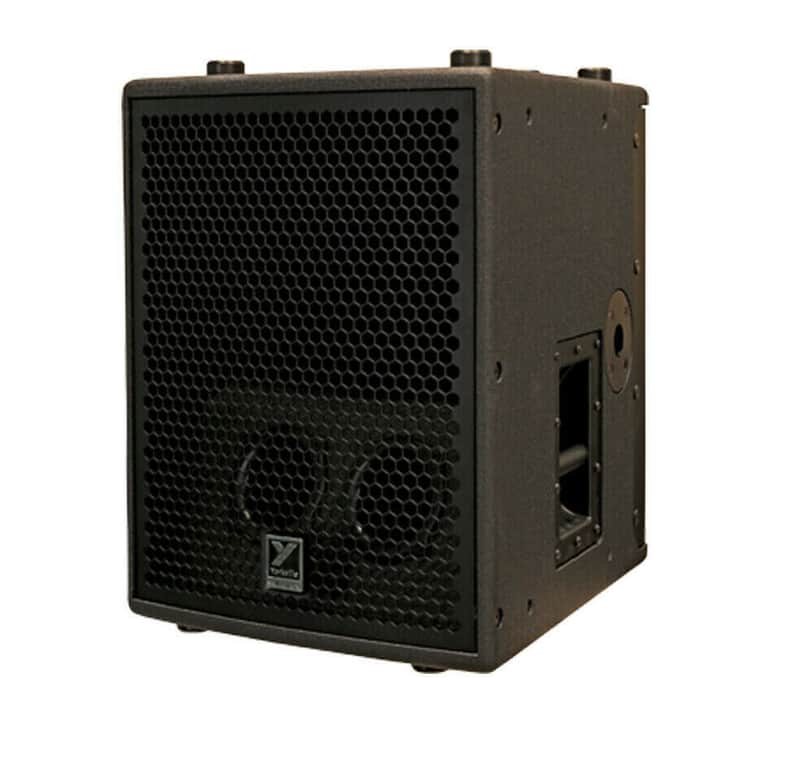

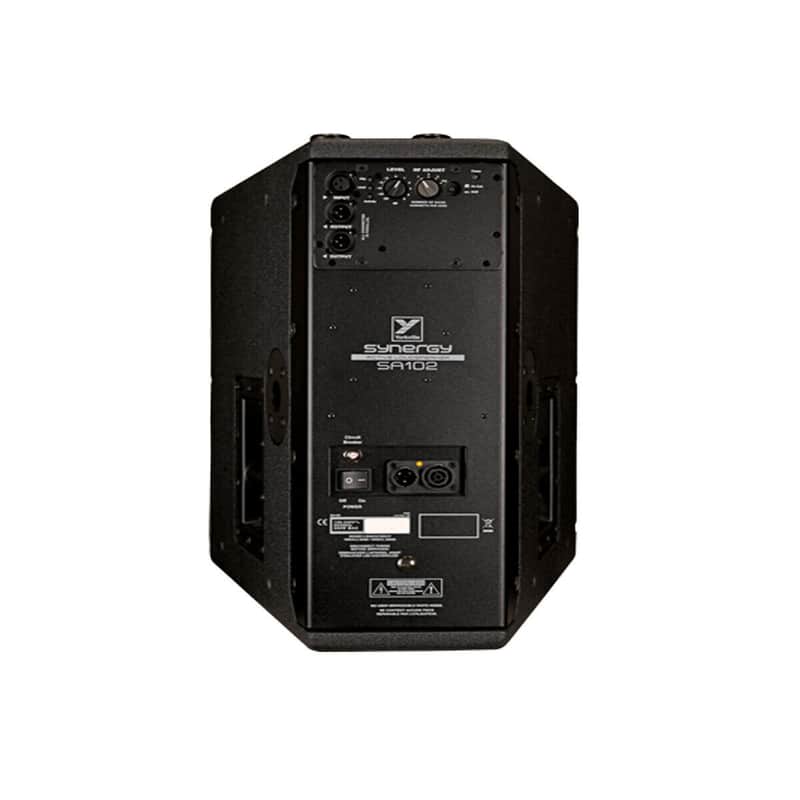

Yorkville Yorkville Synergy SA102

Description

The SA102 full-range powered cabinet is a smaller, lighter and more portable addition to the Synergy Array Series. Providing a reduced footprint without sacrificing sonic integrity, the SA102 is ideal for medium to large venues, outdoor festivals and inclined seating theatres. The SA102 paired with the SA115S subwoofer creates the ultimate point source system built to power stages of all sizes, easy to lift and configure, and grow with you. Overview The SA102 full-range powered cabinet is a smaller, lighter and more portable addition to the Synergy Array Series. Providing a reduced footprint without sacrificing sonic integrity, the SA102 is ideal for medium to large venues, outdoor festivals and inclined seating theatres. The SA102 paired with the SA115S subwoofer creates the ultimate point source system built to power stages of all sizes, easy to lift and configure, and grow with you. Signature to the Synergy series, the SA102 is equipped with the patented Paraline lens to create a precisely shaped wave front that matches the horn's physical coverage pattern. The SA102 uses Synergy Horn technology to maximize efficiency and directivity control by coupling the Paraline Lens with a 10-inch high output woofer. With a vertical coverage pattern of 7 Degrees Up, 38 Degrees Down, the SA102 can be turned 180 Degrees from top to bottom to accommodate larger audiences. Three top boxes arrayed horizontally together would create a vast 90 Degree coverage pattern. The SA102 full range speaker paired with the new SA115S subwoofer creates the ultimate point source system built to start at small stages, easy to lift and configure, and grow with you. Features Full-range powered speaker: 1200 watts (program), 2400 watts (peak) 1x10" LF Woofer, 1xHF Compression Driver Incorporates Tom Danley's patented Paraline Lens and Synergy Horn technologies Exceptionally high output and pristine clarity Extremely well controlled coverage pattern Measured MAX SPL (C-Weighted, Max Hold): 127 dB Cont, 133 dB Peak Frequency Response (Hz +/- 3db): 60Hz-18k Dispersion (°H x °V): 30x45 Asymmetrical (7 Up, 38 Down) Audio Inputs: 1 XLR, 2 x XLR Loop Removable Locking Powercon True Input and Loop Thru Output Dimensions (DWH x backW, inches): 21.250 x 17.375 x 22.750 x 6.750 Made in Canada Specifications System Type Active Full-Range Powered Speaker Active or Passive Active Power Rating (Watts) 1200 Watts Program (2400 Watts Peak) Biampable Biamp Measured Max SPL (C-Weighted, Max Hold) 127 dB Cont. 133 dB Peak Frequency Response (Hz +/- 3dB) 60Hz-18k Dispersion (°H x °V) 30x45 Asymmetrical (7 Up, 38 Down) Crossover Frequency (Hz) 750Hz Cabinet Configuration Patented Synergy Horn and Paraline Lens Technology Driver Configuration 1x10" LF Woofer, 1xHF Compression Driver HF Driver(s) 4" Diaphragm/Voice Coil, Neo HF Power Rating (Watts) 120 watts Program, 240 watts Peak HF Impedance (Ohms) 8 ohm Load HF Protection Peak and Average Limiting LF Driver(s) 1x10" Neo Woofer with 3" Voice Coil LF Impedance (Ohms) 2 ohm Load LF Protection Excursion, RMS HF Power Amplifier (Watts) 300 watts Program, 500 watts Peak HF Amplifier Type 3-Tier Class H LF Power Amplifier (Watts) 900 watts Program, 1600 watts Peak LF Amplifier Type Class D Cooling Scheme Convection Power Cable Removable Locking Powercon True Input and Loop Thru Output Power Switch Yes Power Consumption 200VA Inputs 1 XLR, 2 x XLR Loop Input Sensitivity (Vrms Sine) Line in 1.4 at center, 0.56 at max Level Controls Volume EQ Controls HF Boost select, Fullrange/Sub switch LED Indicators Power, Limit, Clip Enclosure Materials Multiply 15mm Birch Plywood Standard Rigging Hardware 1/4-20 Eyebolts (4 Top, 4 Bottom) Stacking Feature Interlocking UHMW Feet (Top and Bottom) Covering / Finish Paint Dimensions (DWH xbackW, inches) 21.250 x 17.375 x 22.750 x 6.750 Dimensions (DWH xbackW, cm) 54 x 45 x 58 x 17 Weight (lbs/kg) 69/31.3 Specifications subject to change without notice
