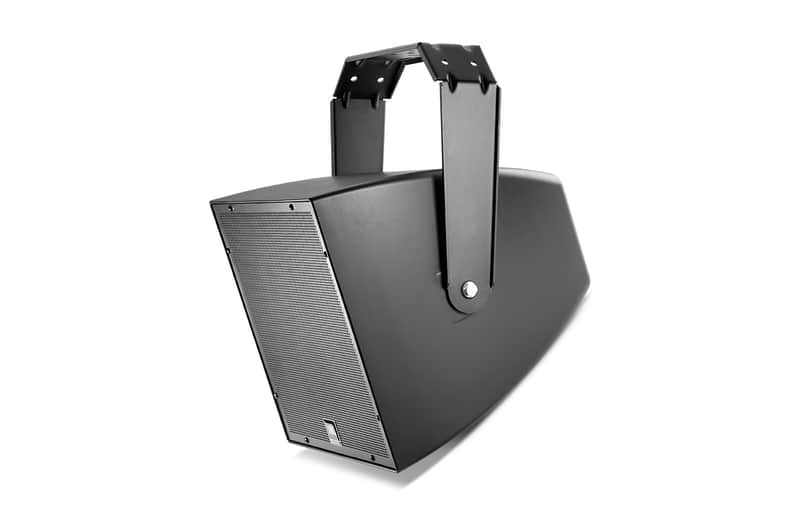

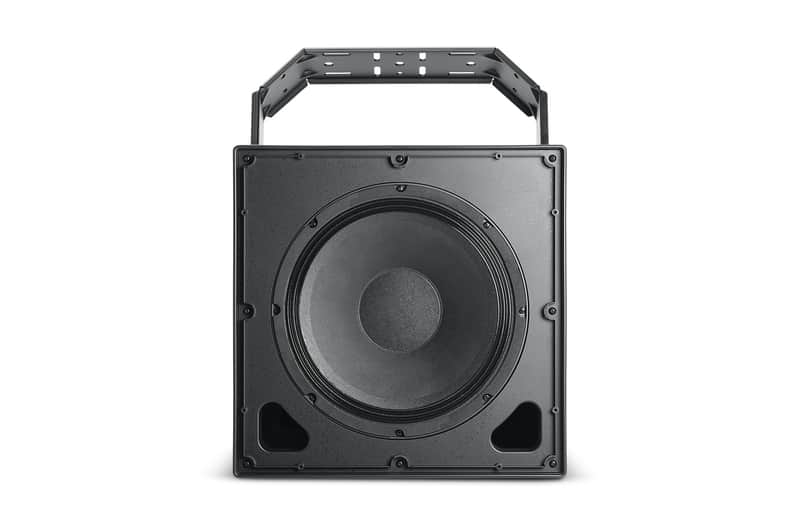

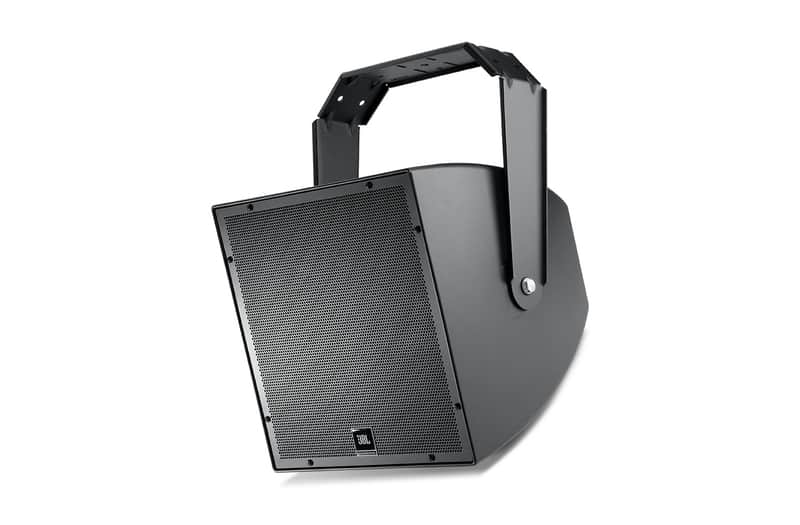

JBL AWC159-BK

Description

JBL AWC159 All-Weather Compact 2-Way Coaxial Loudspeaker with 15" LF (Black) The AWC159 is a rugged, professionally engineered outdoor loudspeaker built for permanent installation in demanding environments. Its compact footprint and coaxial design deliver consistent coverage and high output from a single enclosure, making it ideal for venues, stadiums, and architectural installations where weather resistance and reliability are non-negotiable. Design & Build Quality Constructed from ABS plus fiberglass with heavy internal bracing, this speaker meets IP56 environmental protection standards and withstands sustained outdoor exposure. The 486 × 486 × 479 mm cabinet (20.6 kg) accepts standard barrier terminal wiring up to 12 AWG and mounts securely with included bracket hardware. Audio Performance The 380 mm woofer with Kevlar-reinforced cone pairs with a 38 mm compression driver in a coaxial configuration, producing 98 dB sensitivity and peak SPL of 131 dB at 1 meter. Selectable 70V/100V multi-tap transformer or direct 8Ω operation accommodates both distributed and dedicated amplifier systems, while the 1.5 kHz crossover ensures seamless driver integration across the 80 Hz–20 kHz response range. Key Features 380 mm (15 in) Kevlar-reinforced woofer with 75 mm voice coil 38 mm (1.5 in) compression driver with high-temperature polymer diaphragm 300 W 70V/100V multi-tap transformer or 8Ω direct operation 500 W system power rating (2000 W peak); 300 W / 100 hrs continuous Frequency response ±3 dB: 80 Hz–20 kHz; −10 dB range 52 Hz–20 kHz 98 dB sensitivity (2.83V @ 1m averaged 80 Hz–20 kHz) Maximum SPL: 125 dB direct 8Ω (131 dB peak) 90° × 90° coverage pattern with 1.5 kHz, 4th-order crossover IP56 environmental protection rating per IEC 529 ABS plus fiberglass enclosure with heavy internal bracing Barrier terminals accept 12 AWG wire, #6 or #8 open lugs, and 2.5 mm² spade connectors Dimensions: 486 × 486 × 479 mm; depth 546 mm with bracket; net weight 20.6 kg (45.5 lbs) The AWC159 combines professional-grade components, all-weather durability, and flexible amplifier compatibility into a compact loudspeaker engineered for permanent outdoor installations.

Condition notes

Brand New

year

Unknown
