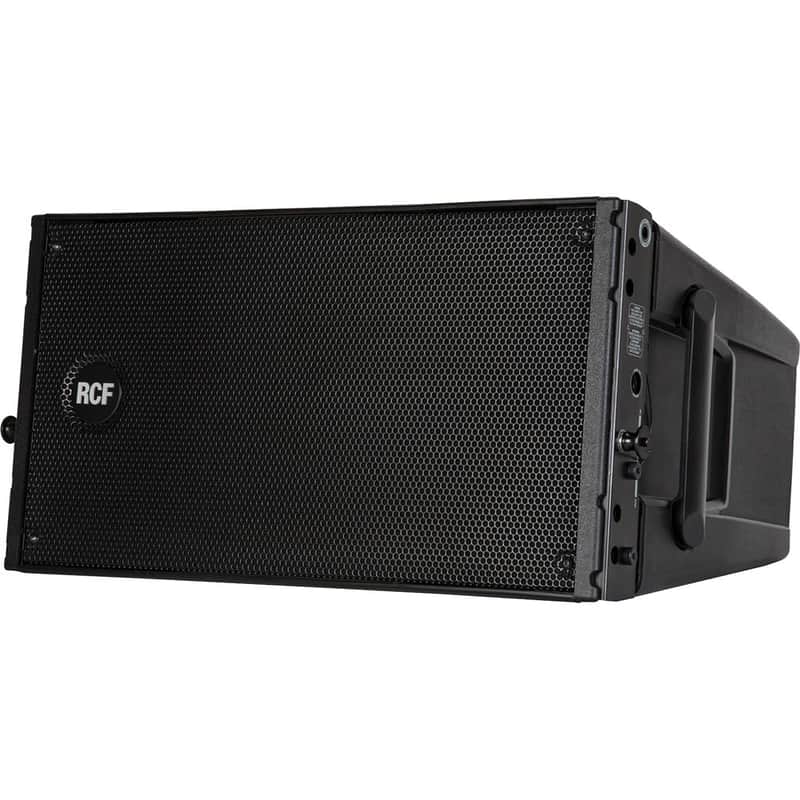

RCF RCF HDL 10-A 1400W Dual 8" Active Line Array Module (Black), photo 1 of 8
Tap to inspect finish

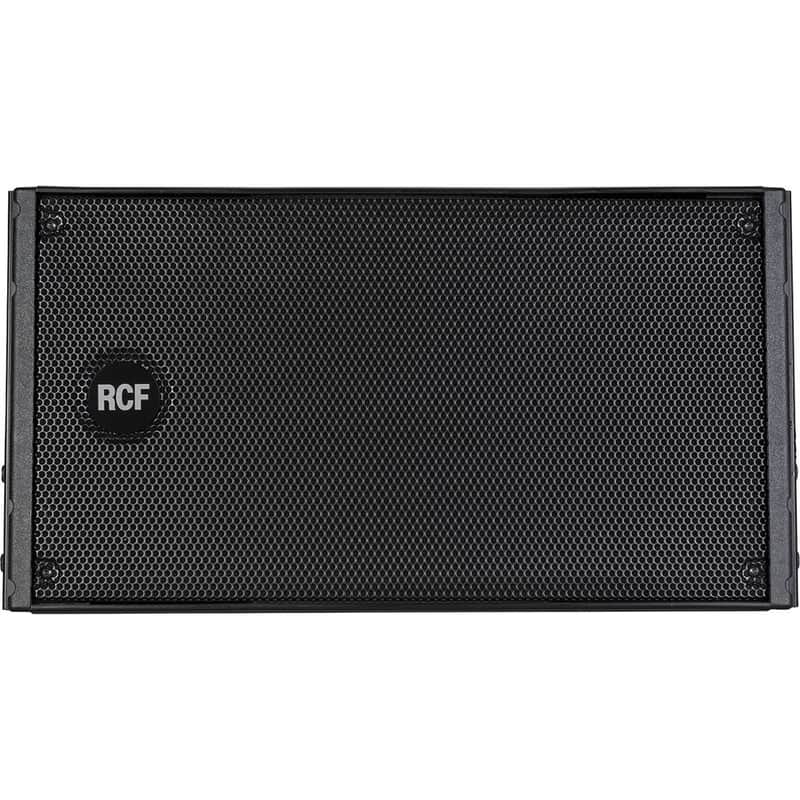

RCF RCF HDL 10-A 1400W Dual 8" Active Line Array Module (Black), photo 2 of 8
Tap to zoom

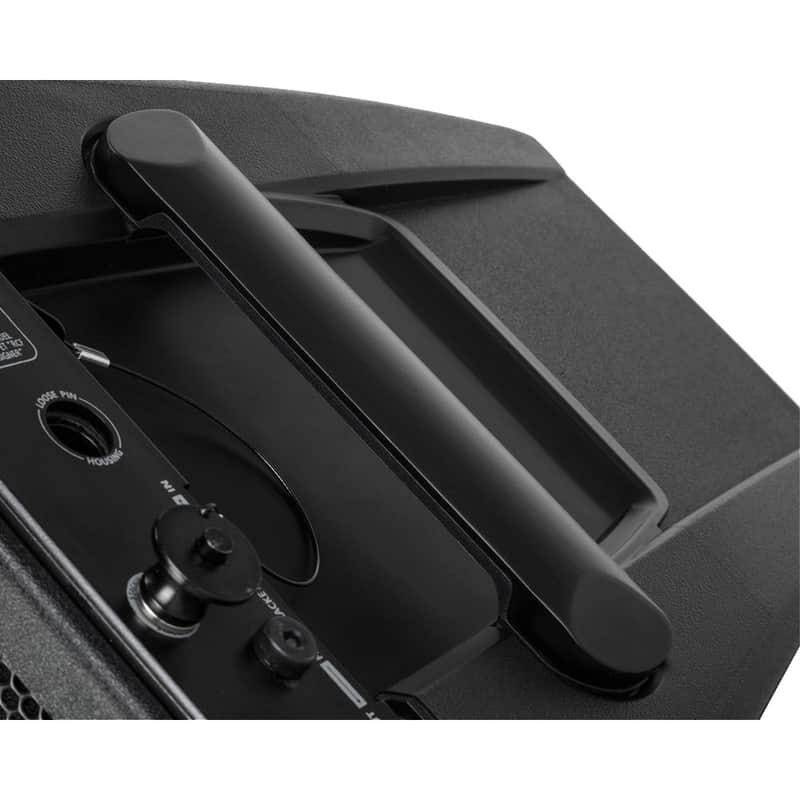

RCF RCF HDL 10-A 1400W Dual 8" Active Line Array Module (Black), photo 3 of 8
Tap to zoom

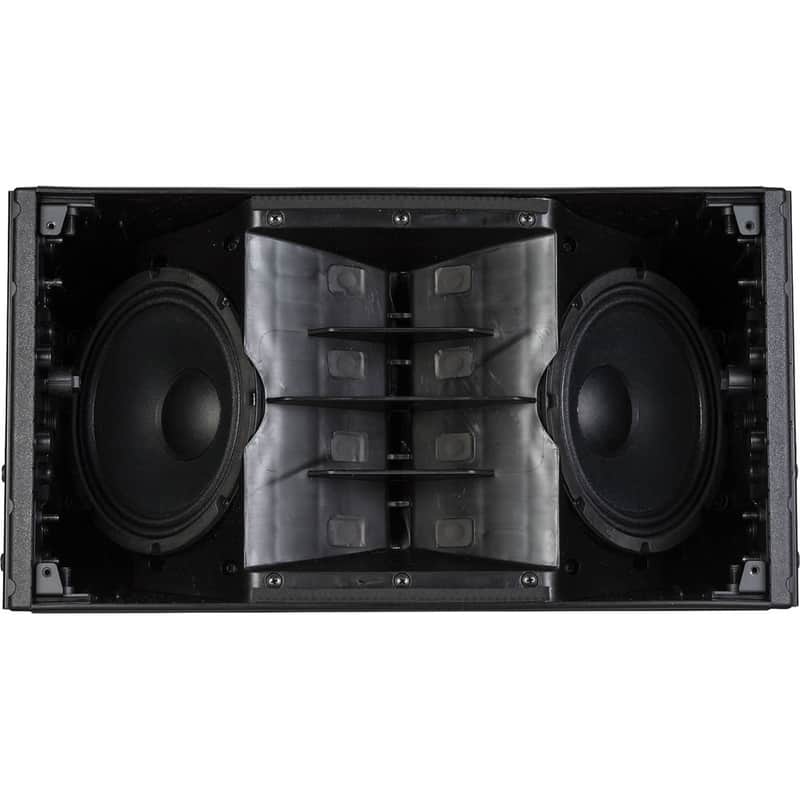

RCF RCF HDL 10-A 1400W Dual 8" Active Line Array Module (Black), photo 4 of 8
Tap to zoom

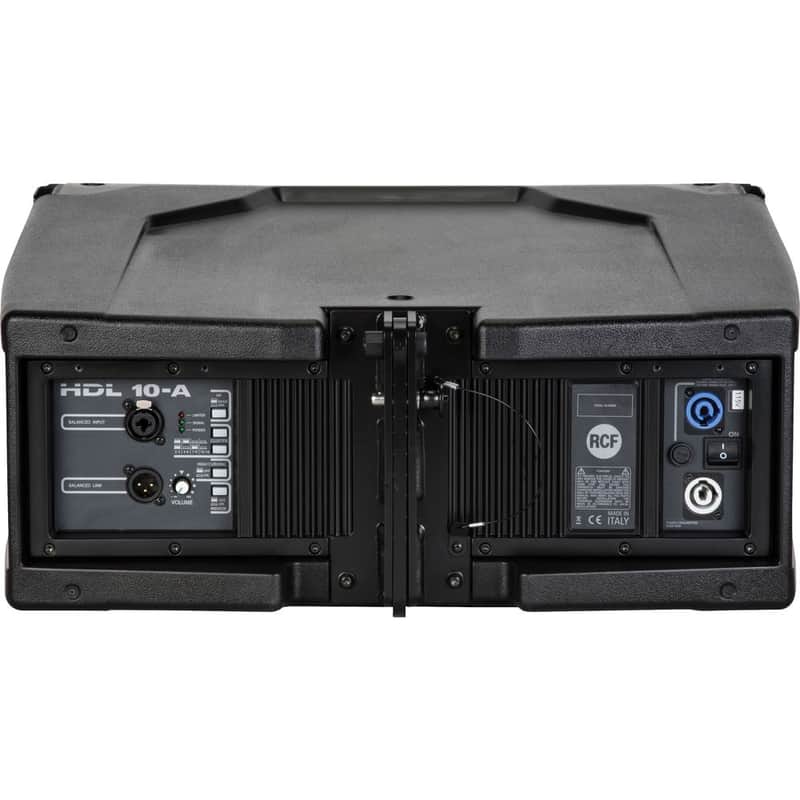

RCF RCF HDL 10-A 1400W Dual 8" Active Line Array Module (Black), photo 5 of 8
Tap to zoom

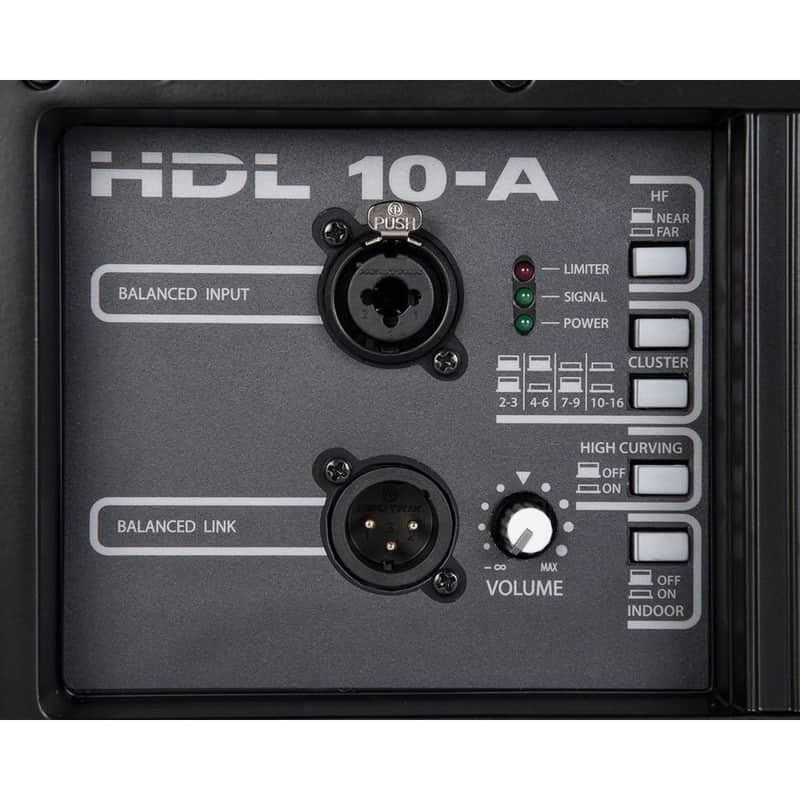

RCF RCF HDL 10-A 1400W Dual 8" Active Line Array Module (Black), photo 6 of 8
Tap to zoom

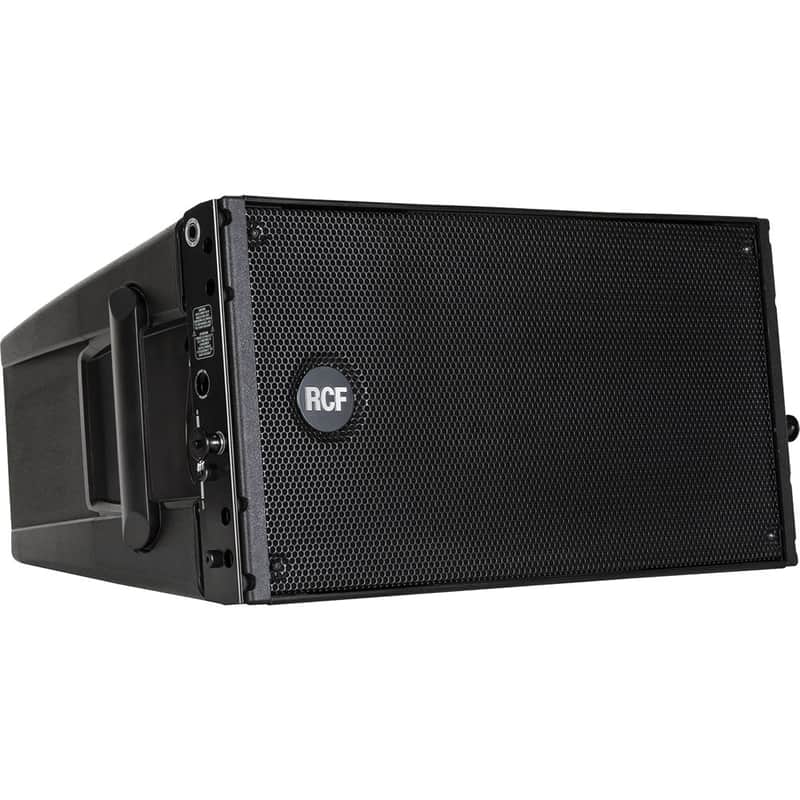

RCF RCF HDL 10-A 1400W Dual 8" Active Line Array Module (Black), photo 7 of 8
Tap to zoom

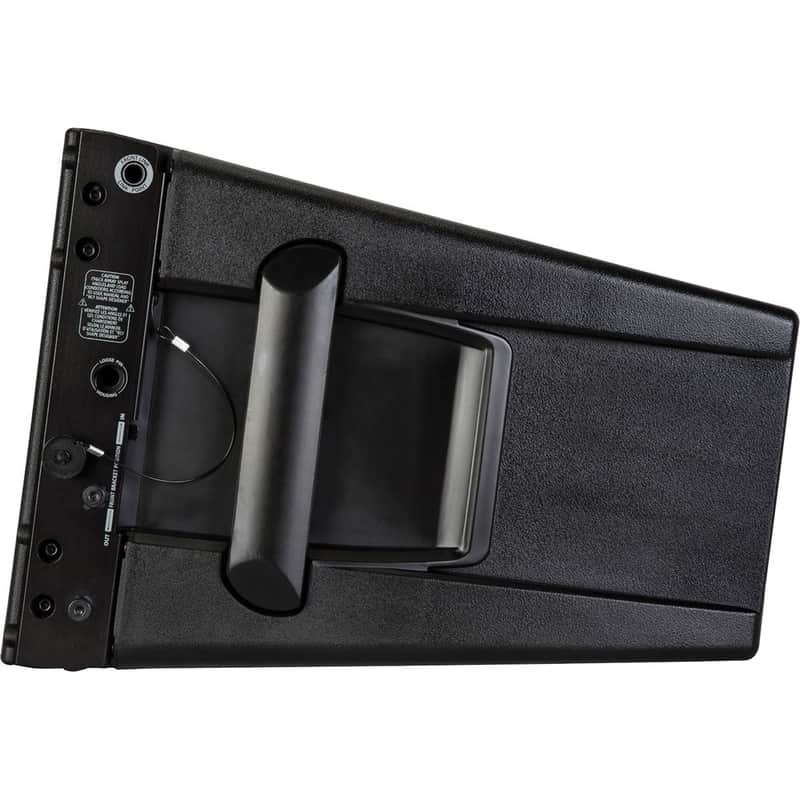

RCF RCF HDL 10-A 1400W Dual 8" Active Line Array Module (Black), photo 8 of 8
Tap to zoom
1 / 8

RCF

RCF HDL 10-A 1400W Dual 8" Active Line Array Module (Black)

$2,419
Condition
New
Type
Active
Finish
Black

Ships to you

Posted with tracking, and shipping is included — the price you see is the price you pay. This one takes up to seven days to go out, and you'll get the tracking the moment it does.

Description

The HDL10-A Active Line Array Module from RCF is designed for use in live sound reinforcement and installed situations. The system is powered from a 1400W peak power two-way digital amplifier (400W for the HF and 1000W for the LF), and sound is processed from a powerful DSP. The system features two 8" low-frequency transducers with a 2" voice coil for a solid bass reproduction, and a large-format 2" compression driver to deliver vocal clarity and high definition. The custom-designed waveguide allows a coverage of 100 x 15°, whilst also delivering linear high-frequency response. The ND 640 compression driver's 2.5" voice coil allows a crossover point of 800 Hz, which allows a wide vocal range to be produced by this driver. The DSP also includes presets for indoor/outdoor usage and highly curved arrays. The back-panel controls allow a number of simple optimizations to be carried out: two possible HF settings, four possible cluster configurations, an EQ setting for high-curved configurations, and an Indoor Correction EQ. A volume knob allows to set the overall volume of the speaker, according to its application. This unit provides Power, Signal, and Status LEDs for monitoring the system. The HDL10-A features configurable mechanic; angles between cabinets are selectable with 2° resolution and allow the system engineer to create J-shaped or spiral arrays. HDL10-A cabinets are molded on a polypropylene composite material designed to dampen-down vibrations, even at maximum volume settings. The module is equipped with two aluminum side handles with a rubber handgrip for portability. The system is equipped with a heavy-duty fly bar. The steel construction mechanics make it possible to fly up to 16 modules in daisy chain manner. Provides up to 1400W of power (700W RMS) Two 8" woofers One 2" compression driver DSP controlled input section with selectable presets Tour-grade safe and solid variable mechanics Wooden reinforced composite PP enclosure Applications: Live sound Rental Portable PA, clubs, ballrooms, and live theatre Theme parks Music playback and sound reinforcement in small and midsize venues Corporate A/V professionals and sound system hire companies UPC: 8024530010850

Condition notes

Brand New
