AtlasIED AA-PPRC
AtlasIED
AA-PPRC
- Condition
- New
- Type
- Power
Ships to you
Posted with tracking, and shipping is included — the price you see is the price you pay. This one takes up to seven days to go out, and you'll get the tracking the moment it does.
Description

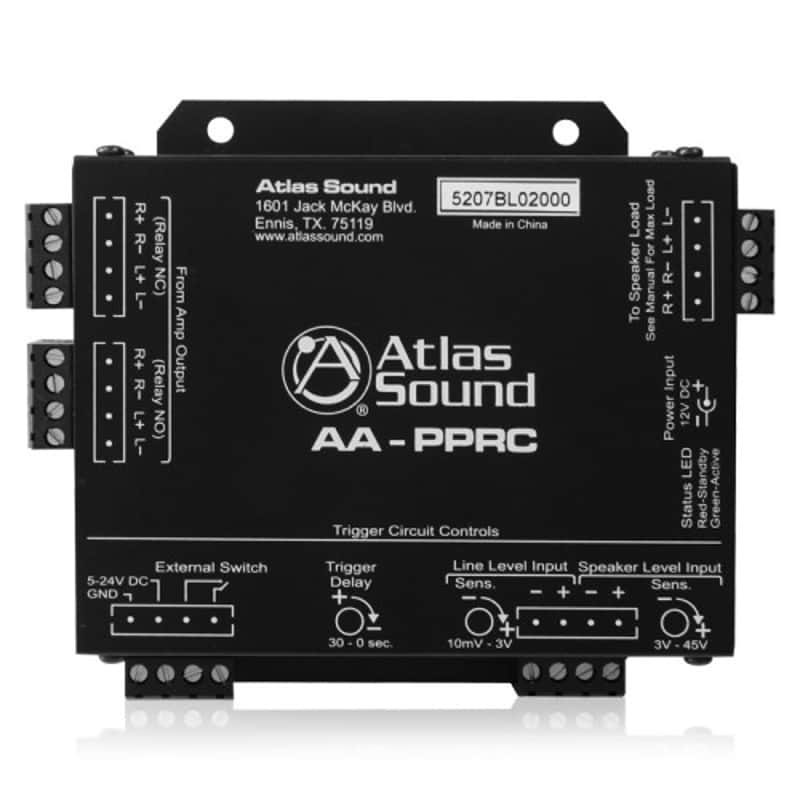

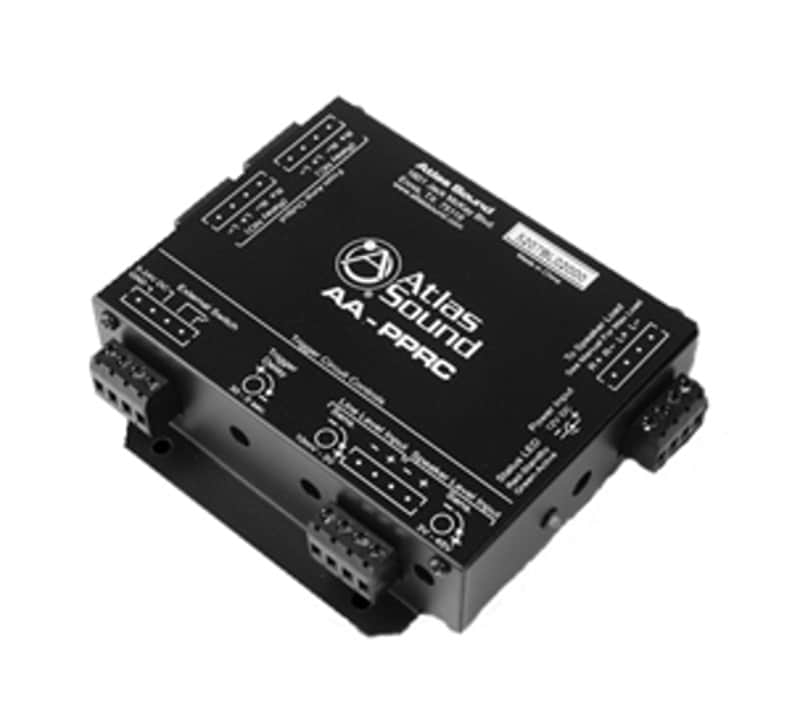

A two in two out speaker level relay switcher, the AA-PPRC functions as a gatekeeper for the separate channels giving you priority control. Intended for applications where paging must be heard over music or an audio presentation, the trigger function mutes the program channel. Once the page has completed, the audio on the program channel will resume automatically with a recover time adjustable from 1 to 30 seconds. The trigger to mute the channel can be high level or line-level audio input, or a range of DC voltage, so placement of the controller is not critical. Flexible enough to accommodate 8Ω or 25/70.7/100V systems, the AA-PPRC is the right choice for new or retrofit applications. Includes 12VDC UL Power Supply Atlas Sound AA-PPRC Features: 2 Channel 350 W @ 70.7V Per Channel Audio High Level Trigger Sense With Threshold Adjust3V - 45V Audio Line Level Trigger Sense With Threshold Adjust20mV - 2V Compact Size H 1.5"x W 4" x L 4.5" (H 38.1 mm x W101.6 mm x L 114.3 mm) Contact Closure Trigger DC Trigger 5V - 24V Finish Black with White Lettering Phoenix Type I/O Connectors Relay Recover Adjustment 1 - 30 Seconds Relay Trigger Threshold Adjust Speaker Line Remote Switcher Atlas Sound AA-PPRC Specifications: Height: 1 1/2" (3.81 cm) Width: 4" (10.16 cm) Depth: 4 1/2" (11.43 cm) Shipping Weight: 2.00 lbs (0.91 kgs) Frequency Response: 20 Hz - 20 kHz Flat Connector Type: Four Position Detachable Phoenix Connector Finish: Black Load Capacity: 5 AMPS Compatability: 8O, 25V, 70.7V, 100V Systems
Condition notes
Brand New
