Eastern Acoustic Works LS 432
Eastern Acoustic Works
LS 432
- Condition
- Good
- Type
- Passive
- Finish
- Black
Ships to you
Posted with tracking, and shipping is included — the price you see is the price you pay. This one takes up to seven days to go out, and you'll get the tracking the moment it does.
Description

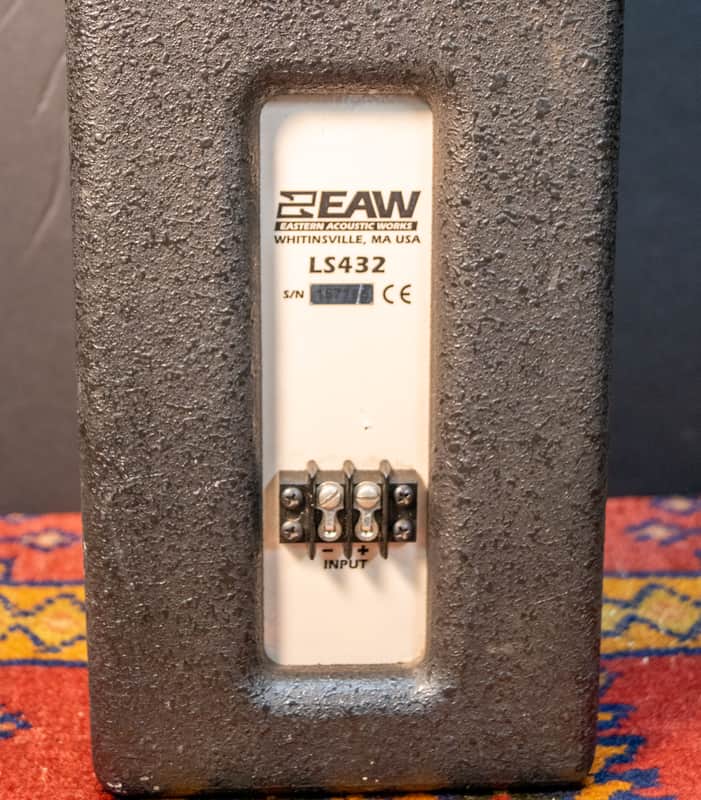

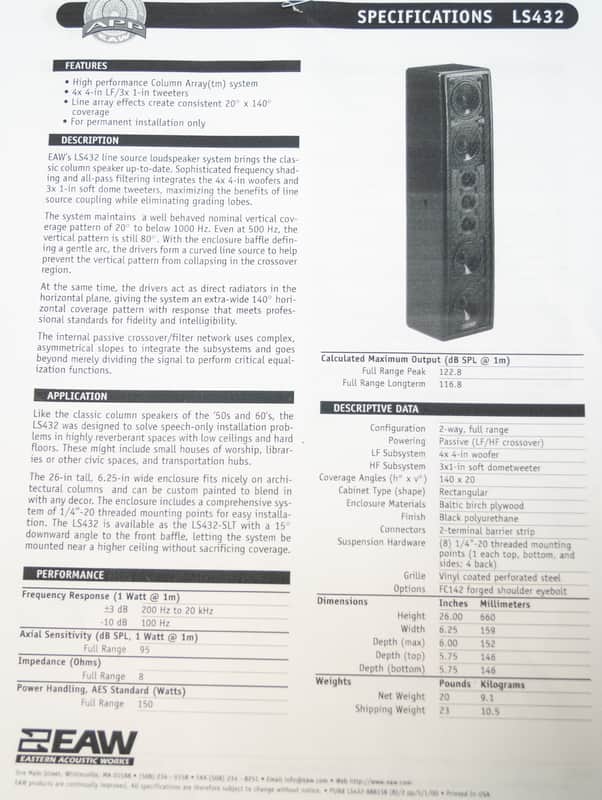

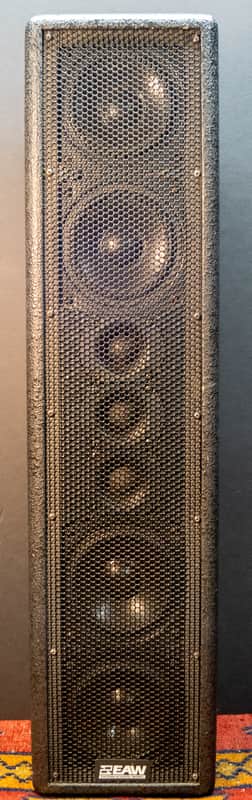

Eastern Acoustics Works PA Speech Speakers This 26 tall inch column speaker is designed to handle speech only installations in highly reverberant spaces with hard floors and low ceilings. Uses might include houses of worship, civic places and transportation hubs. The 4x4" woofer augmented by 3x I" soft dome tweeters maximize the benefits of line source coupling. A internal passive crossover/filter network integrates the subsystem to provide critical equalization functions. #157165 The 26 " tall by 6.25" wide enclosure fits nicely on on architectural columns. Frequency Response (1 Watt @ 1m) ±3 dB 200 Hz to 20 kHz -10 dB 100 Hz Axial Sensitivity (dB SPL, 1 Watt @ 1m) SPECIFICATIONS LS432 Calculated Maximum Output (dB SPL @ 1m) Full Range Peak 122.8 116.8 Full Range Longterm DESCRIPTIVE DATA Configuration 2-way, full range Passive (LF/HF crossover) Powering 4x 4-in woofer LF Subsystem HF Subsystem 3x1-in soft dometweeter 140x20 Coverage Angles (h° x v° ) Rectangular Cabinet Type (shape) Enclosure Materials Baltic birch plywood Black polyurethane Finish 2-terminal barrier strip Connectors Suspension Hardware (8) 1/4"-20 threaded mounting points (1 each top, bottom, and sides; 4 back) Dimensions Grille Vinyl coated perforated steel FC142 forged shoulder eyebolt Options Inches Millimeters Full Range Impedance (Ohms) Full Range 95 8 Weights Height 26.00 660 6.25 159 Width 6.00 152 Depth (max) Depth (top) 5.75 146 5.75 146 Depth (bottom) Pounds Kilograms Net Weight 20 9.1 23 10.5 Shipping Weight Power Handling, AES Standard (Watts) Full Range 150
Condition notes
Very Good
