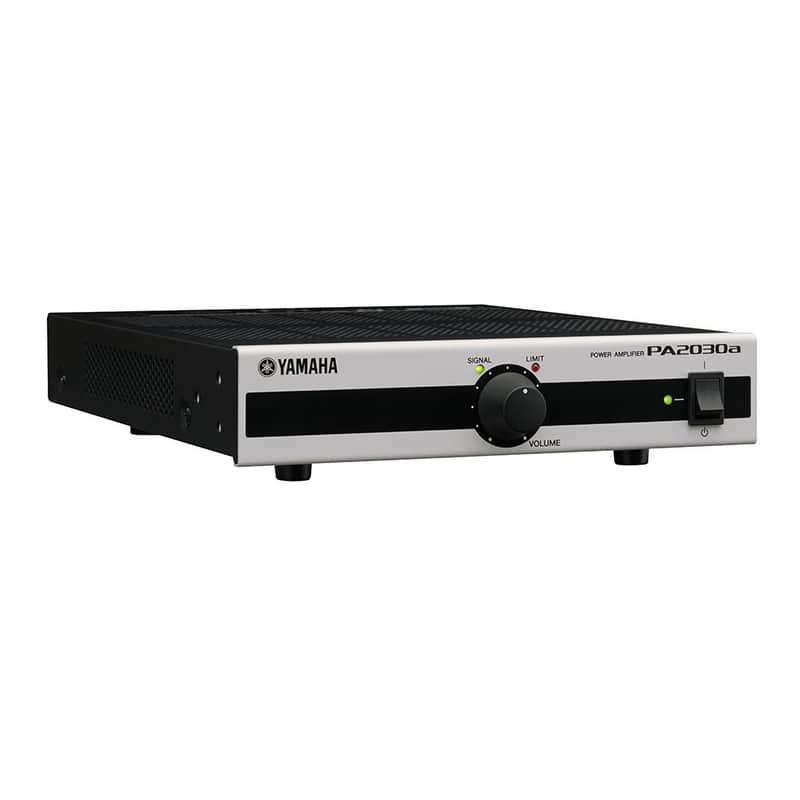

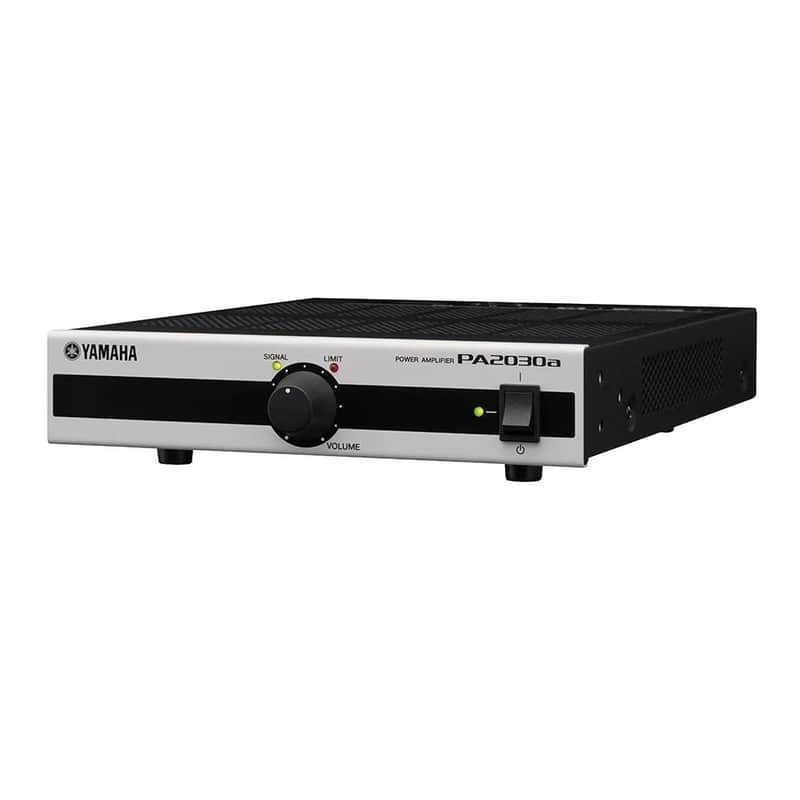

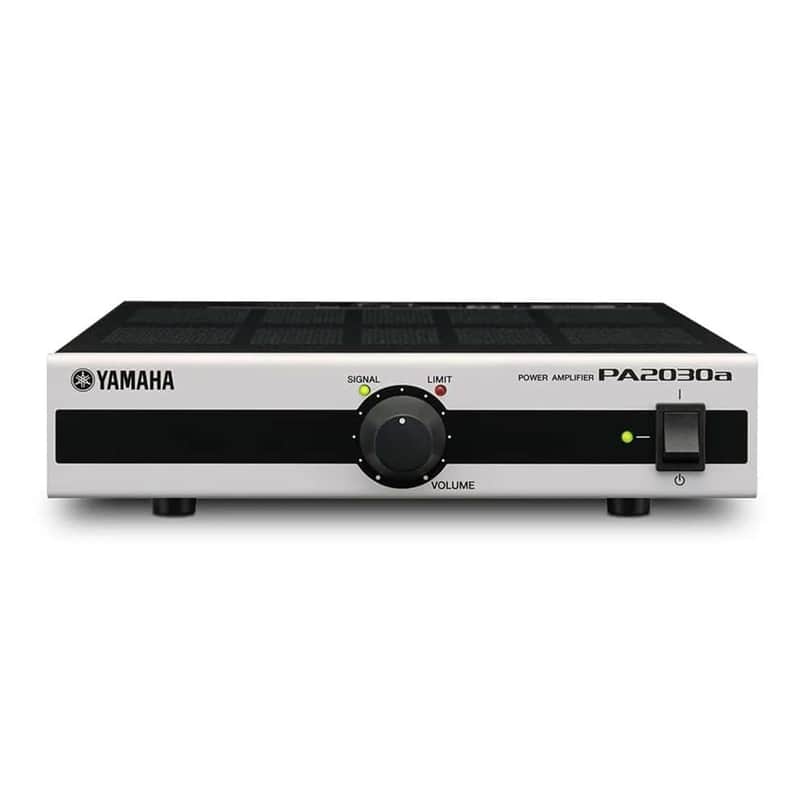

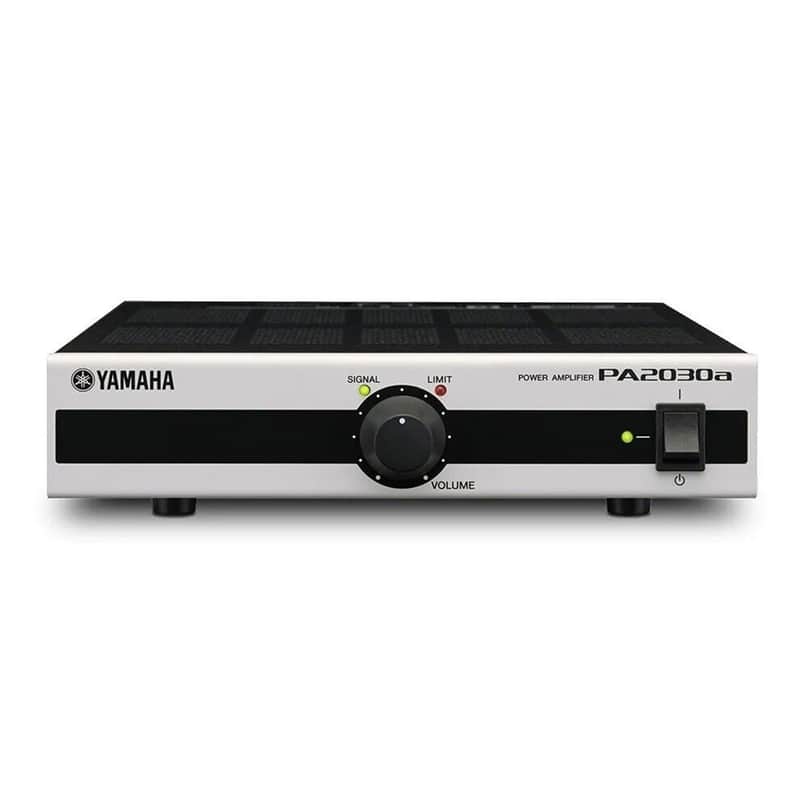

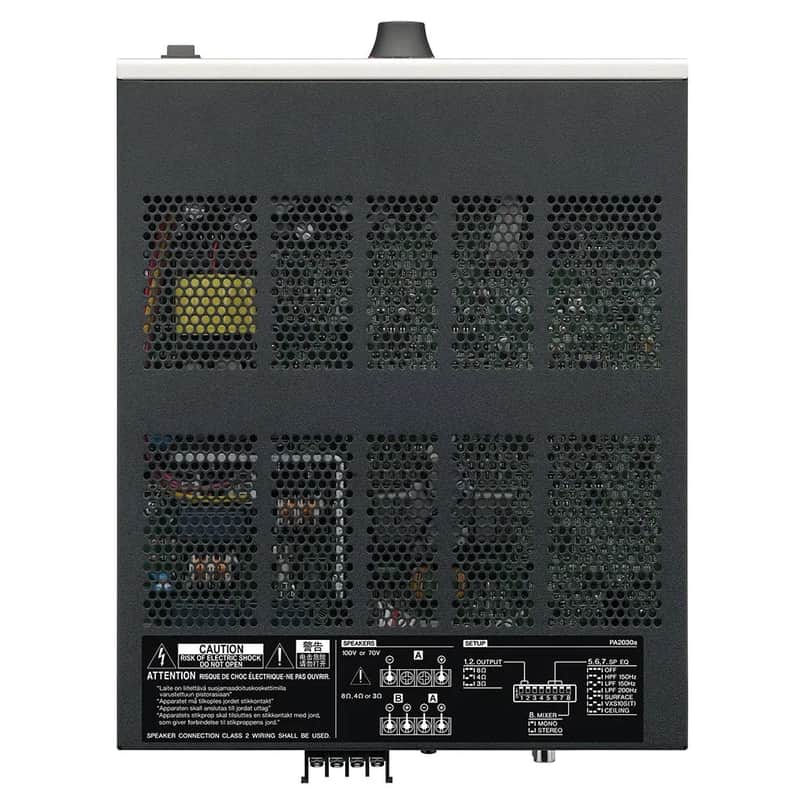

Yamaha PA2030A

Description

Lo-Z/Hi-Z switchable Class-D amplifier (Lo-Z: 30W x2ch, Hi-Z: 60W x1ch) equipped with 1 stereo/2 mono line inputs; can be combined with the MA2030a mixer amplifier. Key Features Easy setup, and a user-friendly interface for effortless operation Supporting Lo-Z (30W @3 OHM/4 OHM/8 OHM) and Hi-Z (60W x1ch, 70V/100V) speaker systems 1 stereo/2mono line inputs Built-in speaker EQ optimum for Yamaha VXC/VXS series speaker Built-in HPF/LPF Intelligent protection function ensures safe, reliable operation Certified as Yamaha Eco Products Space-saving 1U rack size (*sufficient space must be provided above and below the unit for airflow and cooling.) Technical Specifications Output power 1kHz (THD+N=1%: 3 OHM): 30W x 2 (20ms Burst) 1kHz (THD+N=1%: 4 OHM): 30W x 2 (20ms Burst) 1kHz (THD+N=1%: 8 OHM): 30W x 2 (20ms Burst) High impedance: 100V line: 60W x 1 High impedance: 70V line: 60W x 1 Total harmonic distortion <= 0.1% (Line in to Speaker out @1kHz, Half power, 3 OHM/4 OHM/8 OHM), <= 0.2% (Line in to Speaker out @1kHz, Half power, 70V/100V) Frequency response 0dB, -3.0dB, +1.0dB (Line in to Speaker out, 50Hz to 20kHz, 1W, 3 OHM/4 OHM/8 OHM), 0dB, -3.0dB, +1.0dB (Line in to Speaker out, 90Hz to 20kHz, 1W, 70V/100V) I/O Connectors Speaker Output: Barrier strip x 2 pairs Stereo Input: LINE IN: Stereo RCA pin (unbalanced), 3.5mm Euroblock (3-pin, balanced) x 2 Input Level Line input (unbalanced): -10dBV (Sensitivity), -10dBV (Nominal), +10dBV (Max before clip) / Line input (balanced): +4dBu (Sensitivity), +4dBu (Nominal), +24dBu (Max before clip) Processors Speaker EQ (VXS:Full Range, VXC, VXS10S/ST), HPF (150Hz), LPF (150Hz, 200Hz) Load protection Power switch on/off: Mute the output*, Output voltage protection: Compress the output*, DC-fault: Power supply shutdown (*Restored automatically) Amplifier protection Thermal: Limit the output* -> Mute* -> Shutdown, Over current: Mute the output*, Integrated power limit: Compress the output* (*Restored automatically) Power supply protection Thermal: Power supply shutdown, Over voltage: Power supply shutdown, Over current: Power supply shutdown Amplifier class Class D Cooling Conventional cooling, bottom to up airflow Power requirements 100V, 120V, 230V-240V; 50Hz/60Hz Power consumption 30W (1/8max. power, 3 OHM, AC 100V, pink noise at all channels) Dimensions W 215mm (8.5â€) *1 H 54mm (2.1â€) *1 D 288mm (11.4â€) *1 Net weight 1.8kg (4.0lbs) Accessories AC power cable, 3.5mm Euroblock plug (3-pin) x 2, Owner’s manual, Specification sheet Options RK-1 (Rack-mount Accessory) Others Operating Temperature: 0C to + 40C, Storage Temperature: -20C to + 60C, Rack-mountable when ensuring sufficient ventilation above and below the unit

Condition notes

Brand New

year

2000s
