Electro-Voice F.01U.117.524
Electro-Voice
F.01U.117.524
- Condition
- Mint
- Type
- Passive
Ships to you
Posted with tracking, and shipping is included — the price you see is the price you pay. This one takes up to seven days to go out, and you'll get the tracking the moment it does.
Description

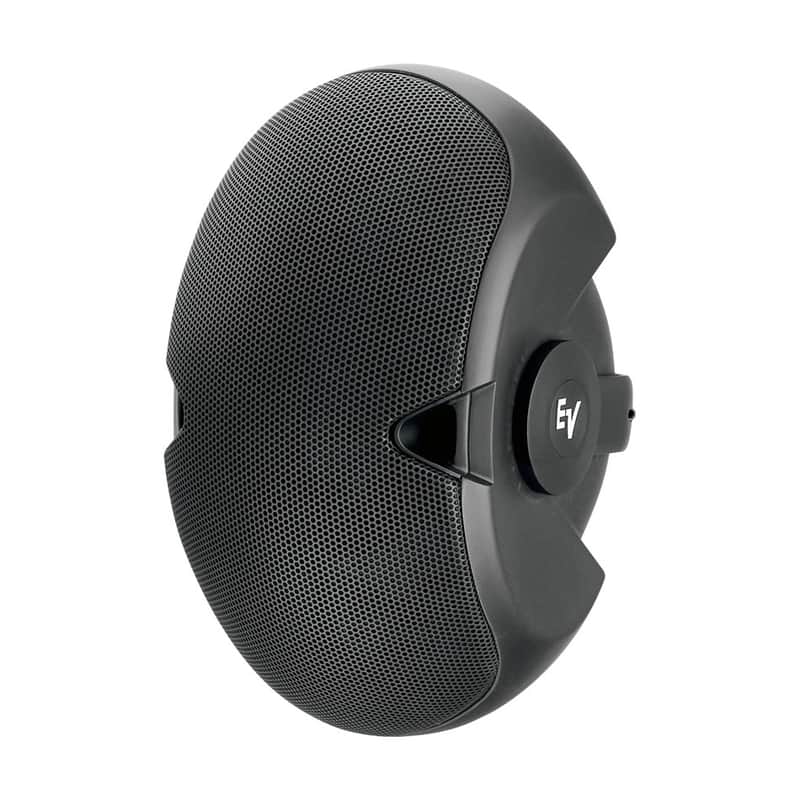

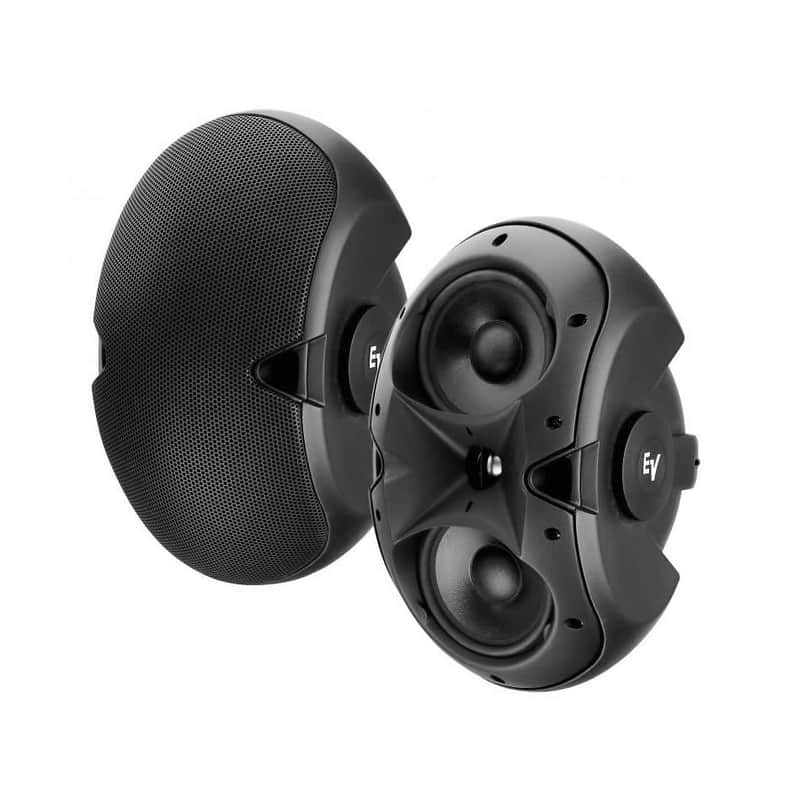

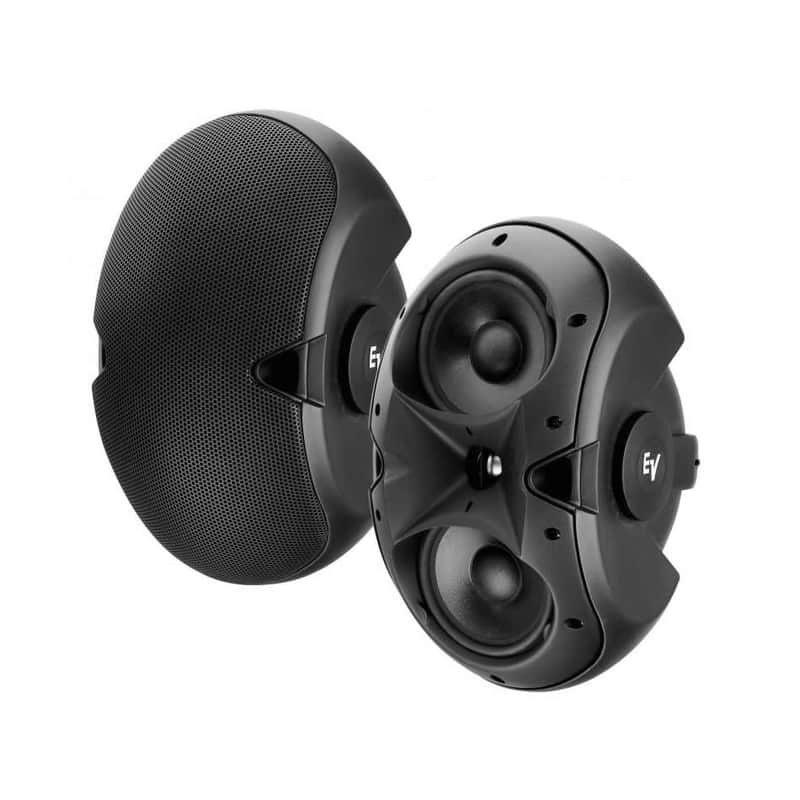

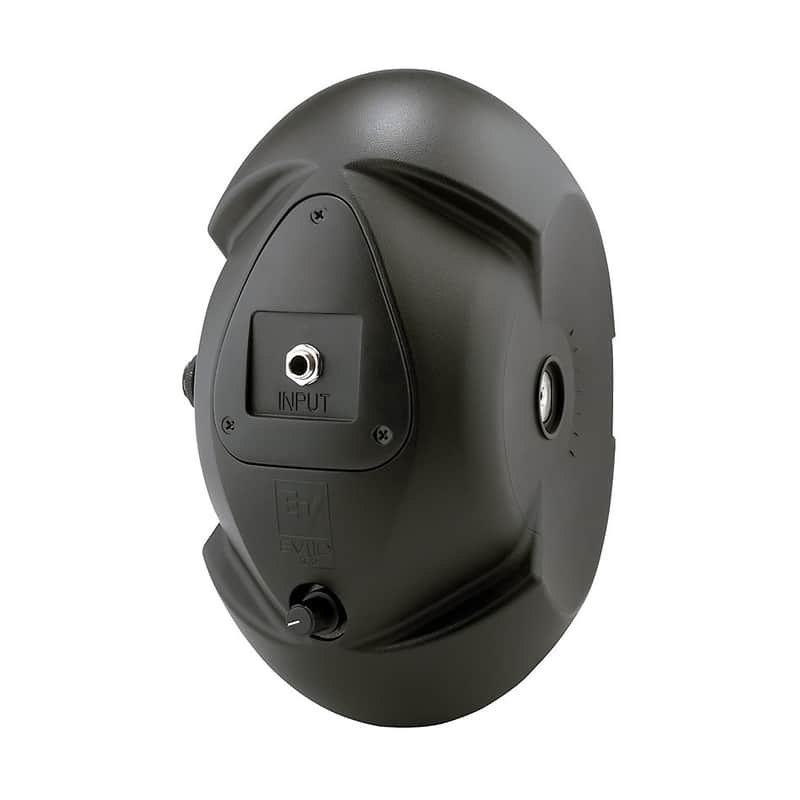

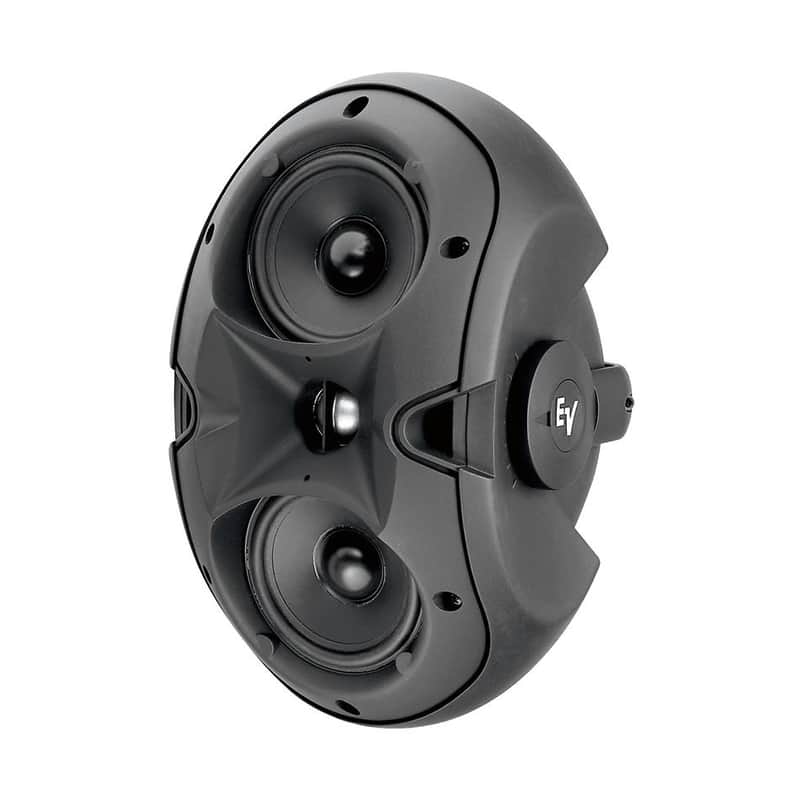

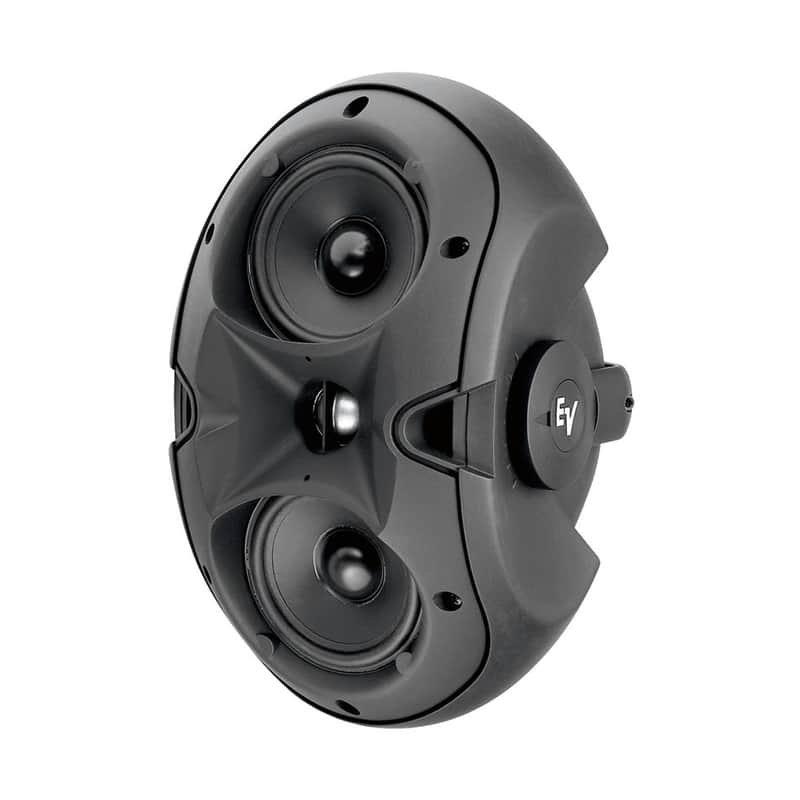

The EVID 3.2 produces sound that defies its small size. It is loaded with dual, 3.5“, low-frequency drivers and a .75“, Ti-direct radiator. Its unobtrusive profile is ideal for background music and paging support. * Designed for Commercial Sound/Life Safety, House of Worship, and other applications. * Two-way full range * Vented LF enclosure * 0.75” voice coil (titanium diaphragm) with Neodymium magnetic structure * Full-bandwidth overload protection for HF and LF * Three-dimensional ellipse (for compact look) * Magnetically shielded for video applications * Comes with Strong Arm Mount (SAM™) and a hex key * Suspension insert for SAM™; safety point on rear side Chassis Size 3.5" (88.9 mm) Color Black Color White Input Connections Spring Terminal Speaker Type Fullrange Speaker Type Mid-High Speaker Type Two-Way Transformer Taps (Transformer Version Only) 70 V: 5 W, 100 V:10 W Frequency Response (-10 dB) 85 - 20000 Hz Sensitivity 1 W/1 m 87 dB Max. SPL/1m (calc) 112 dB Coverage (Nominal -6 dB) H° 140 ° Coverage (Nominal -6 dB) V° 100 ° Nominal Impedance (Passive) 8 Ω Minimum Impedance 6 Ω Outdoor Yes Height 9.21" (234 mm) Width 5" (127 mm) Depth 6.5" (165 mm) Weight Net 52.91 oz (1500 g)
Condition notes
Mint
Specifications
- year
- 2015
Seller
Westlake Village, CA
★ 5.00
Description
The EVID 3.2 produces sound that defies its small size. It is loaded with dual, 3.5“, low-frequency drivers and a .75“, Ti-direct radiator. Its unobtrusive profile is ideal for background music and paging support. * Designed for Commercial Sound/Life Safety, House of Worship, and other applications. * Two-way full range * Vented LF enclosure * 0.75” voice coil (titanium diaphragm) with Neodymium magnetic structure * Full-bandwidth overload protection for HF and LF * Three-dimensional ellipse (for compact look) * Magnetically shielded for video applications * Comes with Strong Arm Mount (SAM™) and a hex key * Suspension insert for SAM™; safety point on rear side Chassis Size 3.5" (88.9 mm) Color Black Color White Input Connections Spring Terminal Speaker Type Fullrange Speaker Type Mid-High Speaker Type Two-Way Transformer Taps (Transformer Version Only) 70 V: 5 W, 100 V:10 W Frequency Response (-10 dB) 85 - 20000 Hz Sensitivity 1 W/1 m 87 dB Max. SPL/1m (calc) 112 dB Coverage (Nominal -6 dB) H° 140 ° Coverage (Nominal -6 dB) V° 100 ° Nominal Impedance (Passive) 8 Ω Minimum Impedance 6 Ω Outdoor Yes Height 9.21" (234 mm) Width 5" (127 mm) Depth 6.5" (165 mm) Weight Net 52.91 oz (1500 g)
Condition notes
Mint
Specifications
- year
- 2015
SPKRS holds your payment until you confirm you have the item.
