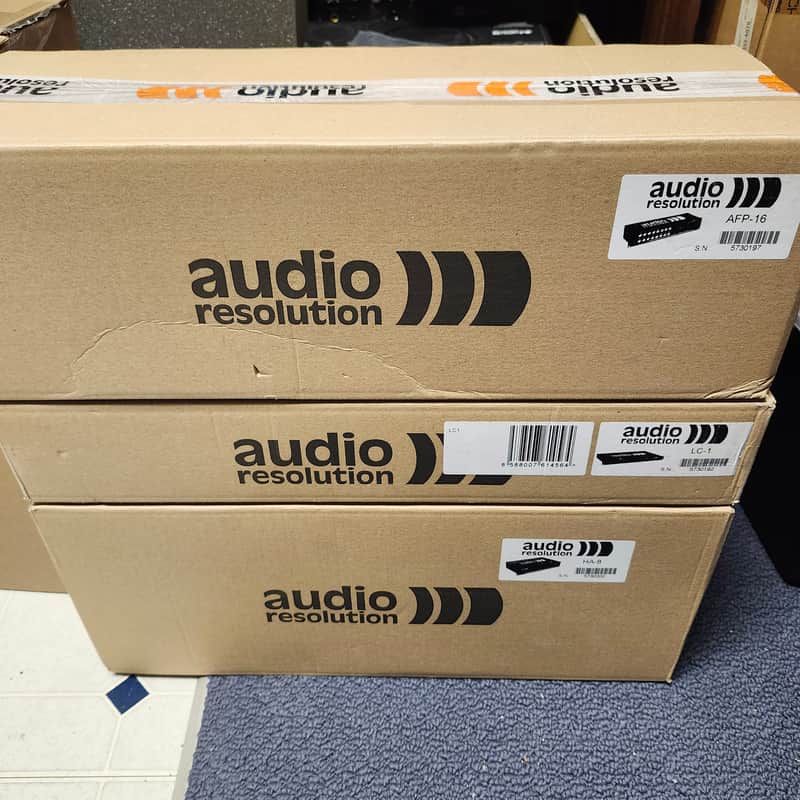

AudioResolution HA-8 LC-1 & AFP-16

Description

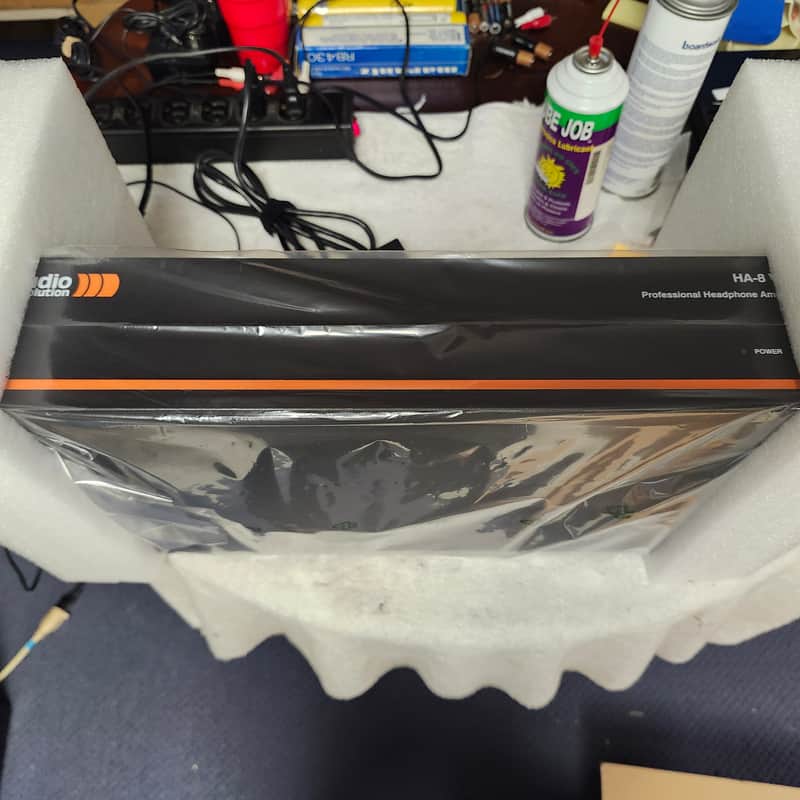

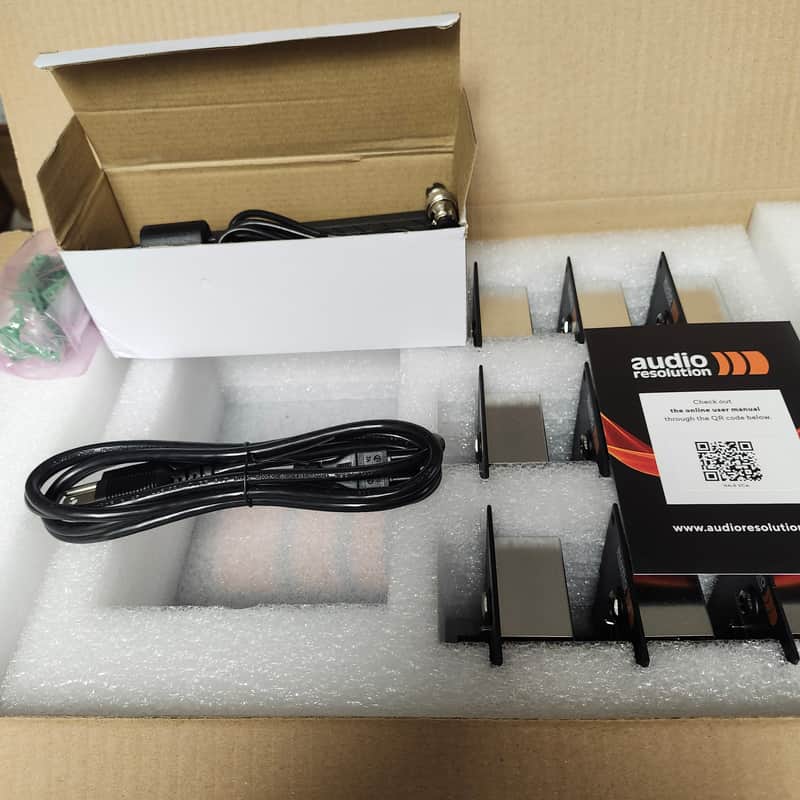

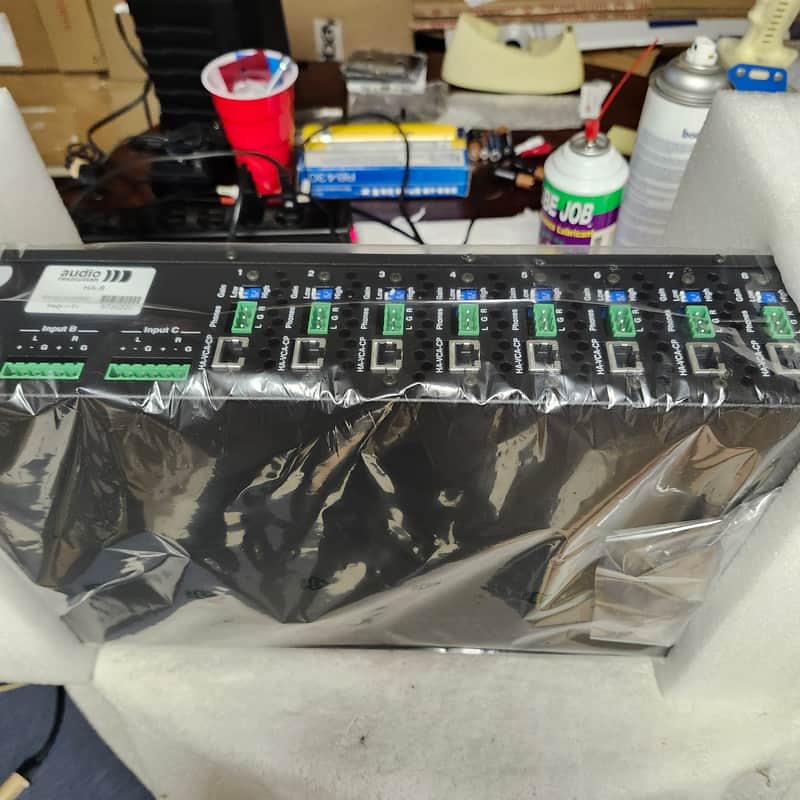

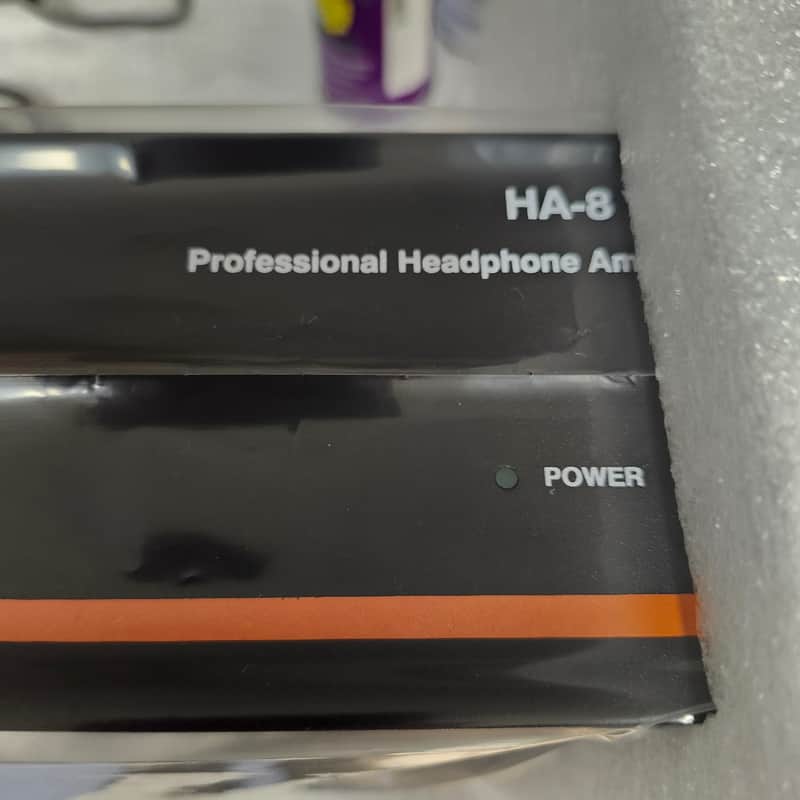

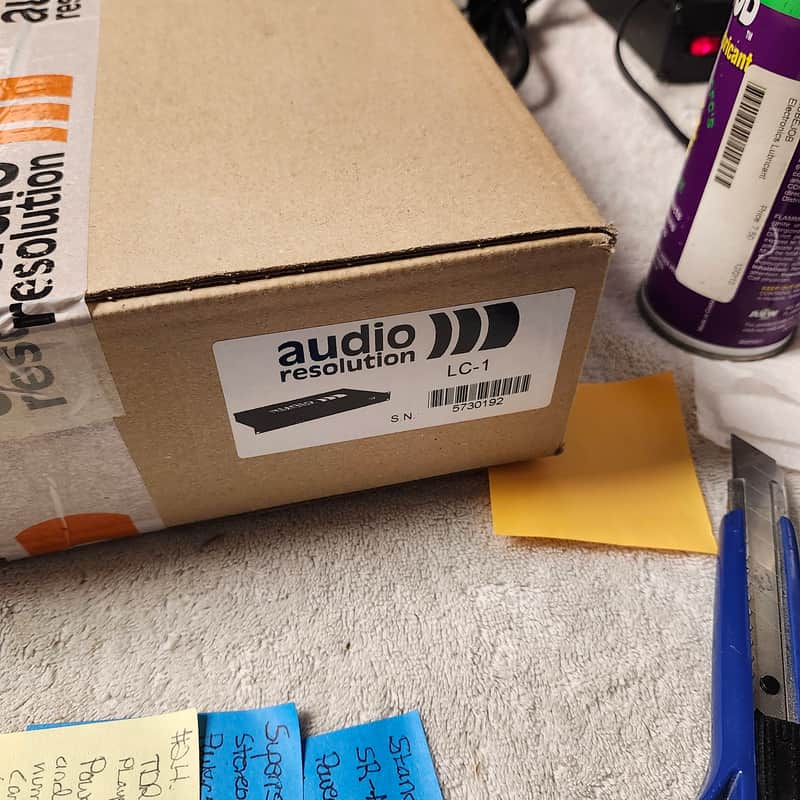

Brand New AudioResolution High End Studio, Broadcast and Installation Set Up. Audio Resolution stands as a prominent European entity specializing in the production of professional audio devices tailored for broadcast and theatrical environments.Set up includes all new in box HA-8,Modular, 8 stereo channel studio headphone amplifier, LC-1 Modular, 8 stereo channel studio headphone amplifier Product description HA-8 Modular, 8 stereo channel studio headphone amplifier Professional analog, modular, High-Fidelity, 8-channel stereo, studio headphone amplifier with remote voltage volume control (VCA) which guarantees perfect balance between Left and Right channels. Signal path is complete analog with high dynamic headroom and lowest noise and distortion. Features three balanced stereo audio inputs, 8 stereo headphone outputs, 8 remote volume control units with input routing switch and headphone output. The unit is suitable for professional recording and broadcast studios. 3 stereo balanced inputs 8 independent headphone outputs Local/ remote headphone outpu Wide regulation range Input selection routing switch High power independent to headpone impedance High-Fidelity, High-Performance audio amplifier High output power Rack mountable – 2RU Can be downscaled to four stereo headphones channels includes 8 remote headphone volume control unit Input section Number of inputs: 3x stereo Input connector: 6-pin Phoenix Input sensitivity: Line level Nominal input level 0 dBu Input type: Analog Output section Number of outputs: 8x stereo Output connector: 3-pin Phoenix (unit) JACK 6,3 stereo (remote) Remote connector: RJ45 Output noise level: -89dB / 0dB gain -92dB /gain at minimum THD+N: < 0,03% @15Ω, 1kHz Output power (THD+N < 1%) 0,9W @15Ω 1,3W @32Ω 0,6W @100Ω 0,1W @600Ω Frequency response: 20Hz - 20kHz /-0,1dB 10Hz - 100kHz /-0,15dB Cooling: Active Controlling the amp: Control: external via remote control panel Controls: Input source switching, volum Max. lenght of remote cable 25m /*longer cable can negatively affect frequency response and maximum output power Recomended remote cable AWG: AWG24 and better Power Power supply: 24V DC /5A Measurements and weight Central unit Height in RU 2RU Dimmensions HxWxL: 88x480x255 mm Weight: 5kg Remote control panel Dimmensions HxWxL: 95x70x50mm Weight: 0,2kg LC-1 Studio monitor control unit with talkback and GPIO logic Studio monitor control unit with two talkback inputs and GPIO logic. It features studio monitors playback and talkback blocking on Recording or On Air Red Light, Red Light GPI input, talkback GPI output, gain and phantom power select for talkback inputs. The unit is suitable for professional recording and broadcast studios. 2 talkback mic/line inputs Adjustable gain and phantom power for talkback inputs Separate talkback audio output Isolated Red Light GPI input Talkback GPI outputs Separate enable switches for talkback and playback blocking on RED light GPIO indication LEDs Simple CAT5e cabling for talkback microphone remote control panels Input section Number of inputs: 2x Talkback mono 1x Monitor stereo input Talkback input Input connector: 5-pin Phoenix RJ45 Input level MIC Gain settings: +40dB, +20dB Phantom power: Yes, switchable Controls: Gain switch, Phantom, level Talkback Out Output noise level: -85 dBu / 40dB Gain, Level at middle position -90 dBu /20dB Gain, Level at middle position Max. output level: +27 dBu / THD+N < 0,1% Studio monitor In/ Out Input connector: 2x 3-pin Phoenix Output connector: 2x 3-pin Phoenix Input/ Oytput level: MIC/ LINE IN/ OUT switching: Relay GPIO section GP outputs: Talkback active GP inputs: Talkback Mic 1 Talkback Mic 2 Red Light Front panel Signalization: Power, Talkback Mic 1, Talkback Mic 2, Red Light Controls: Talkback Enable Playback enable Power Power supply: 24V DC /1A Dimensions and weight Dimensions HxWxL: 44x480x265 mm Weight: 3,4 kg AFP-16 Professional instant messaging audio player Professional SD card audio announcement player with 16 instant play buttons with LED indication of playback. It features GPI inputs for blocking announcement playback with visible signalization of playback blocking, built in speaker for playback monitoring with separate volume control, announcement master volume control and GPI output which is active during announcement playback. The unit is suitable for theaters, sports arenas, shopping malls, etc. 16 playback buttons with LED playback indication Transformer balanced audio output Isolated GPI inputs and output Announcement master volume control Announcement playback blocking signalization Built in control speaker with volume control Playback Number of direct play buttons: 16 Built in monitor speaker: Yes Max. output power: 8W Monitor volume control: Yes - potentiometer Playback blocking signalization: JUMBO RED LED Playback storage: SD/SDHC card Supported audio formats: MP3 mono/ stereo, 44,1kHz, 32kbit/s - 320kbit/s WAV mono/ stereo, 16-bit, 44,1kHz Supported SD card format: FAT16, FAT32 Analog Output connector: 3-pin XLR Output type: Analog, transformer balanced and isolated Max. output level: +4 dBu GPIO Number of GP inputs 2 GP input type: optocoupler GP Input voltage: 12-24V Number of GP outputs: 1 GP output type: relay GP Out contact rating: 50V /0,5A Power Power supply: 12V DC /1A Dimensions and weight Dimensions HxWxL: 88x480x140 mm Height in RU: 2 RU Weight: 3,1 kg You can find even more details at

Condition notes

Excellent

year

2026
