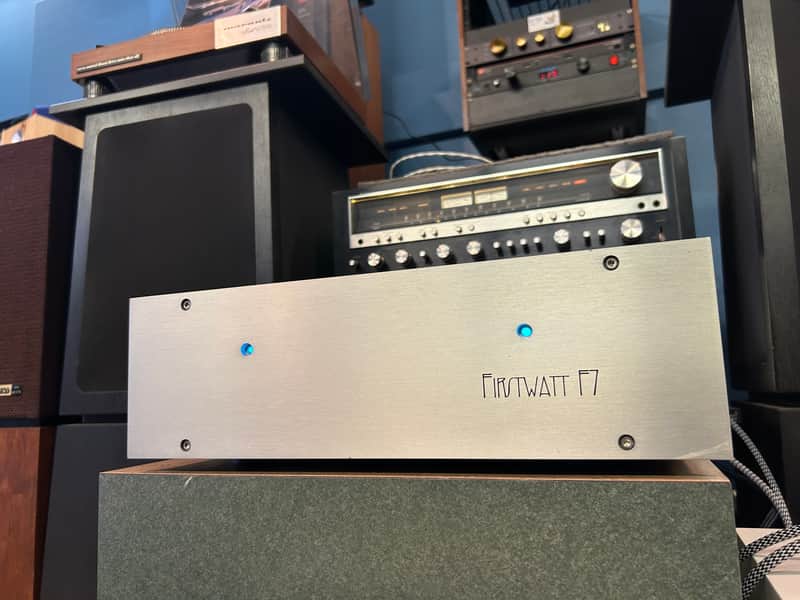

First Watt F7

Description

*Ready to ship in silver FIRST WATT F7 - SILVER or BLACK MSRP $4,000 Brand new sealed in box Silver unit ready to ship from Fly Hifi Stereo Black unit can be special ordered and shipped directly from Pass Labs (4-6 week build time) Fly Hifi Stereo is First Watt/Pass Labs' hometown dealer here in Auburn California. Feel free to call the shop with any questions or special requests. The F7 is a very unique power amplifier, a two-stage push-pull JFET/MOSFET topology with fewer parts than any First Watt amplifier to date and incorporating a very interesting balance of very low negative voltage feedback and a little bit of positive current feedback to give an astonishing measure of control over reactive loudspeaker loads. Nominal specifications: Measured at 120 V AC and an 8 ohm load: Distortion @ 1 watt 0.05% input Impedance 10 Kohm Gain 14.5 dB Input Sensitivity (1 watt) 0.53 V Input Sensitivity (max output) 2.7 V Damping Factor >100 Output power 8 ohms 20 watts @ 2% THD, 1KHz Output power 4 ohms 30 watts @ 3% THD, 1KHz Class A envelope 40 watts peak @ 4 ohms Frequency response DC to -3 dB @ 100 KHz Noise 100 uV unweighted, 20-20 KHz Power consumption 170 watts Warranty: Parts and labor for 3 years, not covering shipping costs or consequential damages. Warranty work is provided by authorized distributors outside of the U.S. And by First Watt within the U.S. Amplifiers under warranty outside of the U.S. not purchased from an authorized distributor can be serviced in the U.S. by First Watt at the cost of freight and customs charges. FREE SHIPPING WITHIN THE LOWER 48! INTERNATIONAL BUYERS - PLEASE CALL OR MESSAGE. The item is also available for pickup at Fly Hifi Stereo Store in Auburn CA.

Condition notes

Brand New

year

2025
